Y1-16OE01 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 9-CARBURETOR AND INTAKE MANIFOLD Parts Diagram

Zero-Turn Mower, Drive Unit Only

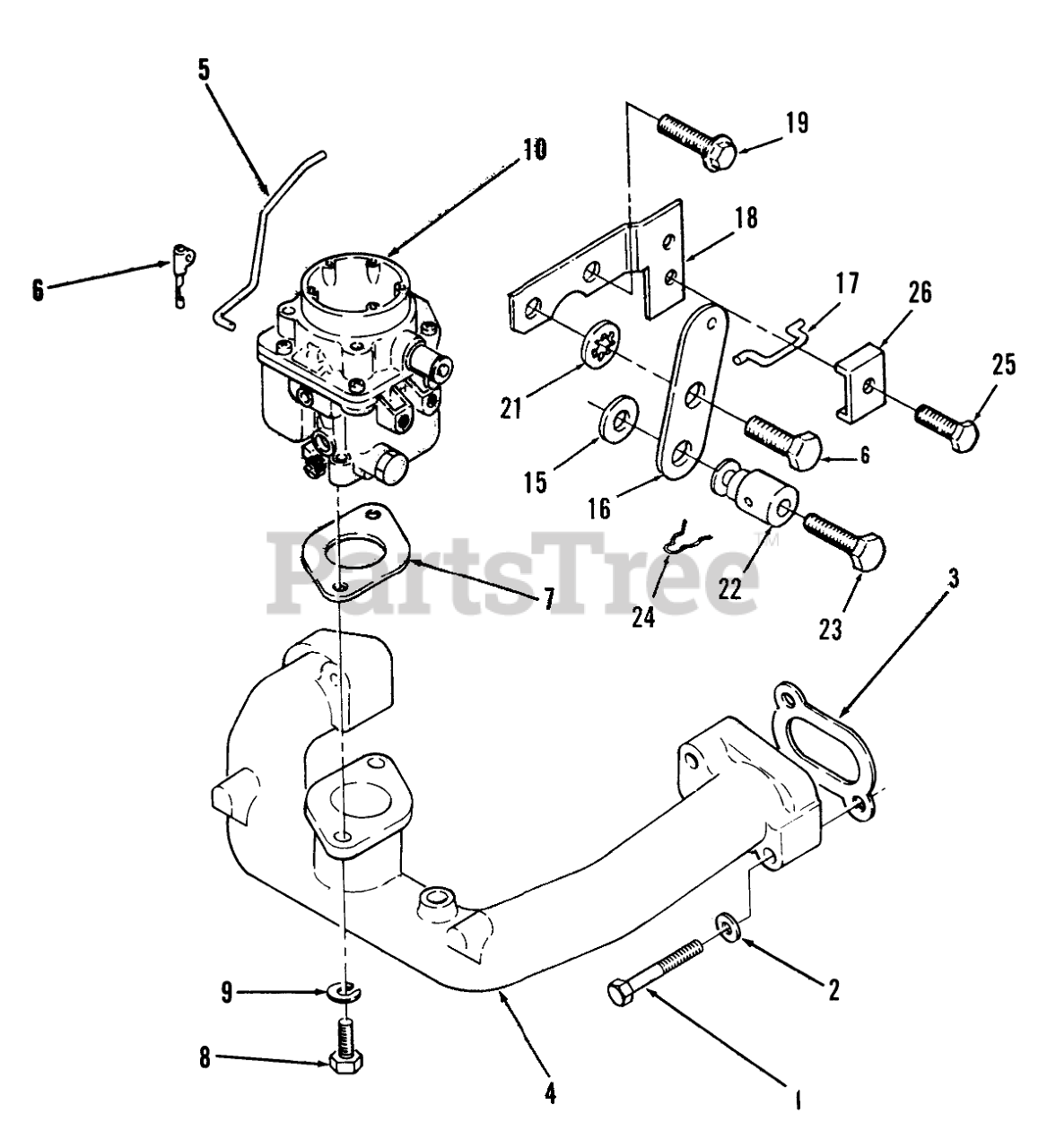

SECTION 9-CARBURETOR AND INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro NN10375

HHCS

$

$

Not available

2

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

3

Toro NN10236

Gasket
(Superseded to 71-5980)

$14.99

$

In Stock, Qty 5

0

4

Toro NN10514

INTAKE-MANIFOLD

$

$

Not available

5

Toro NN10509

GOVERNOR-CONTROL ROD

$

$

Not available

6

Toro NN10538

CONTROL-ROD CLIP

$

$

Not available

7

Toro NN10235

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

8

Toro NN10544

HEX-HEAD CAP SCREW

$

$

Not available

9

Toro NN10420

Washer
(Superseded to 82-1630)

$

$

Not available

10

Toro NN10504

COMPLETE-CARBURETOR

$

$

Not available

11

Toro NN10528

Hose 7 3/8"
(Superseded to 71-6100)

$10.99

$

Usually ships in 3-6 days

0

12

Toro NN10303

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 4 left!

0

13

Toro NN10506

Filter-Fuel
(Superseded to 71-5960)

$24.99

$

In Stock, Qty 11

0

14

Toro NN10527

Hose
(Superseded to 82-1100)

$

$

Not available

15

Toro NN10364

Washer
(Superseded to 59-0850)

$

$

Not available

16

Toro NN10233

Lever
(Superseded to 59-0460)

$

$

Not available

17

Toro NN10231

Link
(Superseded to 57-9180)

$

$

Not available

18

Toro NN10234

Bracket
(Superseded to 59-0470)

$15.99

$

Usually ships in 3-6 days

0

19

Toro NN10412

Bolt
(Superseded to 72-3880)

$

$

Not available

20

Toro NN10400

Bolt
(Superseded to 59-1020)

$8.99

$

Usually ships in 3-6 days

0

21

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

22

Toro NN10230

Swivel
(Superseded to 57-9170)

$

$

Not available

23

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

24

Toro NN10333

Cotler Pin
(Superseded to 59-0720)

$

$

Not available

25

Toro NN10395

Bolt
(Superseded to 72-3900)

$7.99

$

Usually ships in 3-6 days

0

26

Toro NN10232

Clamp
(Superseded to 57-9190)

$

$

Not available
