Y1-16OE01 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) WHEELS AND TIRES Parts Diagram

Zero-Turn Mower, Drive Unit Only

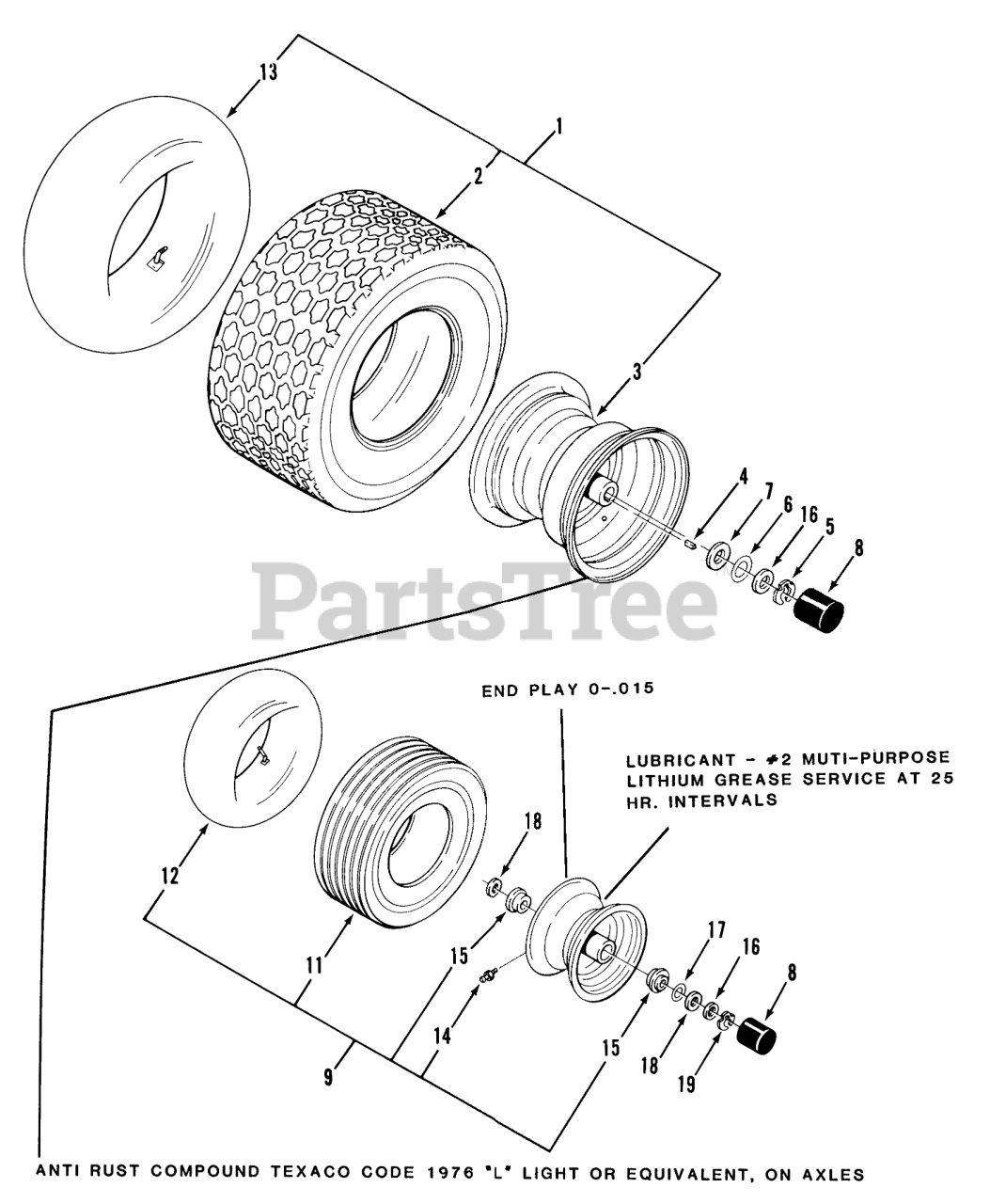

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 117144

Rear Wheel Assembly 18 x 8.50 x 8

$

$

Not available

2

Toro 116429

Rear Tire 18 x 9.50-8
(Superseded to 116880)

$

$

Not available

3

Toro 117145

Rear Wheel

$

$

Not available

4

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 6

0

5

Toro 106414

Retainer
(Superseded to 32151-91)

$2.49

$

Usually ships in 3-6 days

0

6

Toro 920252

Washer
(Superseded to 9202524)

$1.49

$

In Stock, only 1 left!

0

7

Toro 920251

USE 920251P WASHER

$2.99

$

Usually ships in 3-6 days

0

8

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

9

Toro 116719

Front Wheel Assembly 11 x 4.00-5

$

$

Not available

10

Toro 116750

WHEEL-ASSEMBLY

$350.99

$

Usually ships in 3-6 days

0

11

Toro 116424

Front Tire 11 x 4.00-5

$

$

Not available

12

Toro 107963

TUBE-TIRE 11X4.00-5

$

$

Not available

13

Toro 106396

TUBE-TIRE

$41.99

$

Usually ships in 3-6 days

0

14

Toro 1030

Zerk

$

$

Not available

15

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 16

0

16

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

18

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 115882

KLIP-RING .75"

$

$

Not available
