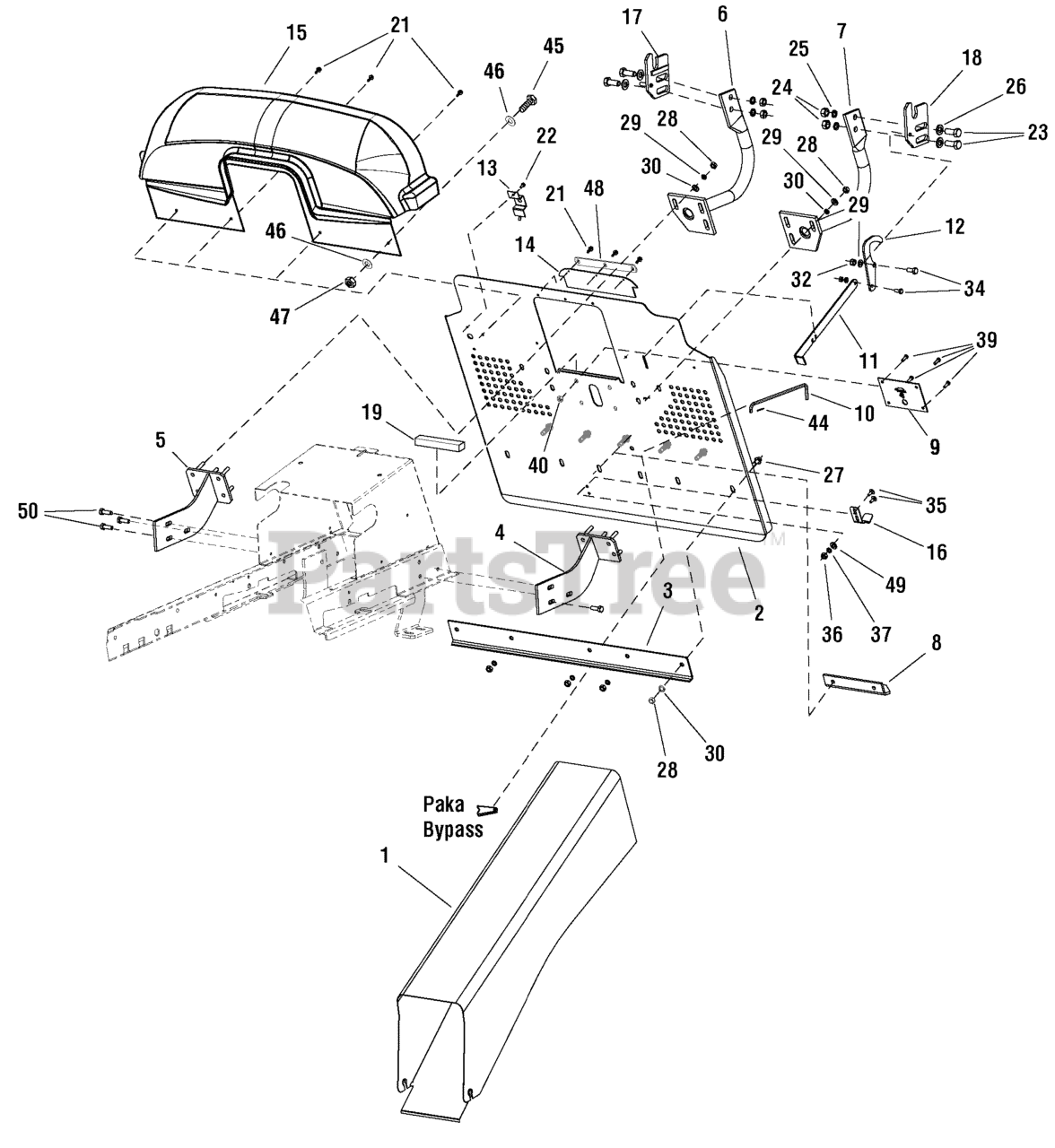

YB 1840 RDFR (2690882) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Back Plate Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

Back Plate Group Parts Diagram

  • Title

1

Murray 1735985YP

TUNNEL

$

$

Not available

2

Murray 1735849YP

BACKPLATE

$

$

Not available

3

Murray 1735876YP

BRACE

$

$

Not available

4

Murray 1735906YP

HOLDER, Back Plate, L.H.

$

$

Not available

5

Murray 1735907YP

HOLDER, Back Plate, R.H.

$

$

Not available

6

Murray 1735908YP

HOLDER, Collector, R.H.

$

$

Not available

7

Murray 1735909YP

HOLDER, Collector, L.H.

$

$

Not available

8

Murray 1735903YP

HITCH

$

$

Not available

9

Murray 1735975YP

SWITCH, Full Collector

$

$

Not available

10

Murray 1735977YP

TIE ROD, Bypass

$

$

Not available

11

Murray 1735978YP

TIE ROD, Latch

$

$

Not available

12

Murray 1735915YP

LATCH

$

$

Not available

13

Murray 1735887YP

COVER, Switch

$

$

Not available

14

Murray 1735939YP

PAD, Rubber

$

$

Not available

15

Murray 1735983YP

TRANSITION PART

$

$

Not available

16

Murray 1735970YP

SPRING, Collector Lock

$

$

Not available

17

Murray 1735904YP

HOLDER, Adjustable, R.H.

$

$

Not available

18

Murray 1735905YP

HOLDER, Adjustable, L.H.

$

$

Not available

19

Murray 1736998YP

RUBBER EDGE

$

$

Not available

21

Murray 1735961YP

CAPSCREW, Self Tap, 5,5 x 19

$

$

Not available

22

Murray 1735960YP

CAPSCREW, Self Tap, 4.2 x 9.5

$

$

Not available

23

Murray 1735857YP

BOLT, M12 x 30

$

$

Not available

24

Murray 1735927YP

NUT, M12

$

$

Not available

25

Murray 1735993YP

WASHER, 13

$

$

Not available

26

Murray 1735992YP

WASHER, 12

$

$

Not available

27

Murray 1735871YP

BOLT, M8 x 25 DIN 6921 8.8

$

$

Not available

28

Murray 1735934YP

NUT, M8

Note: (Use with washer Ref. 30)

$

$

Not available

28

Murray 1751829YP

NUT, Flange Lock, M8

Note: (Washer Ref. 30 not required)

$

$

Not available

29

Murray 1735989YP

WASHER, 8.4

$

$

Not available

30

Murray 1736000YP

WASHER, 8

$

$

Not available

32

Murray 1735935YP

NUT, M8

$

$

Not available

34

Murray 1735868YP

CAPSCREW, M8 x 40

$

$

Not available

35

Murray 1735860YP

BOLT, M5 x 16

$

$

Not available

36

Murray 1735930YP

NUT, M5

$

$

Not available

37

Murray 1735997YP

WASHER, 5.3

$

$

Not available

39

Murray 1735861YP

BOLT, M5 x 16

$

$

Not available

40

Murray 1735931YP

NUT, M5

$

$

Not available

44

Murray 1735963YP

SPINDLE

$

$

Not available

45

Murray 1735858YP

BOLT, M4 x 16

$

$

Not available

46

Murray 1735995YP

WASHER, 4.3

$

$

Not available

47

Murray 1735929YP

NUT, M4

$

$

Not available

48

Murray 1739133YP

PAD, Steel

$

$

Not available

49

Murray 1739134YP

WASHER, 5.3

$

$

Not available

50

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18
