YB 1840 RDFR (2690882) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Engine Group - 18HP Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

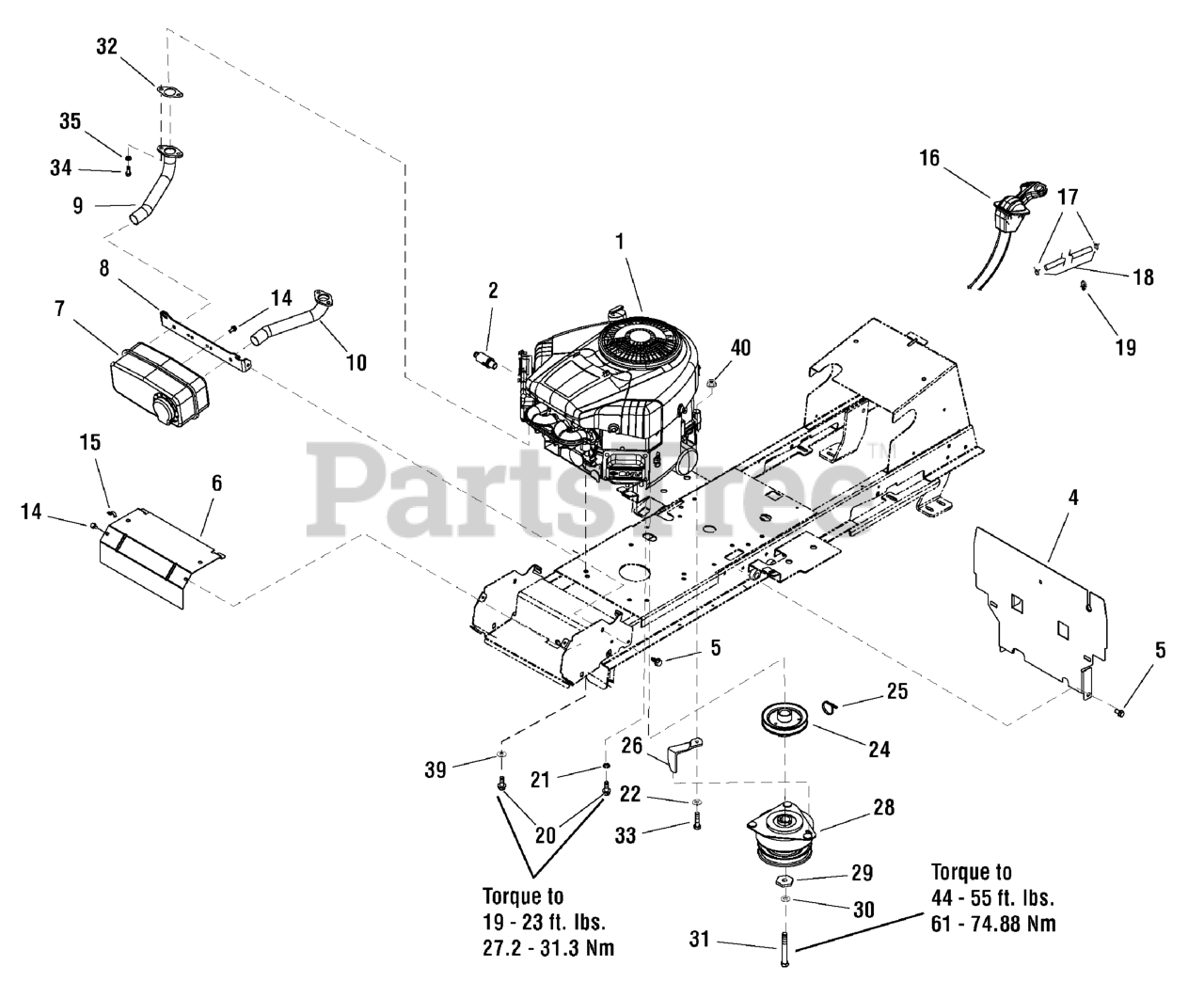

Engine Group - 18HP Parts Diagram

  • Title

1

Murray 405577-0130-B1

* ENGINE, 18HP Briggs & Stratton, V-Twin Intek

Note: (Engine Model: 405577-0130-B1)

$

$

Not available

2

Murray 1717473SM

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

4

Murray 1735962YP

SHIELD, Heat Change

$

$

Not available

5

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

6

Murray 1727997ASM

HEAT SHIELD, Engine

$33.99

$

Usually ships in 2-12 days

0

7

Murray 1727994SM

MUFFLER, Twin

$98.99

$

Usually ships in 2-12 days

0

8

Murray 1727976ASM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

9

Murray 1727979SM

PIPE, Exhaust

$37.99

$

In Stock, only 1 left!

0

10

Murray 1727980SM

PIPE, Exhaust

$37.99

$

In Stock, only 1 left!

0

14

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

15

Murray 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

In Stock, only 1 left!

0

16

Murray 1734505SM

CONTROL, Throttle

$97.99

$

In Stock, only 1 left!

0

17

Murray 1736993YP

CLAMP

$

$

Not available

18

Murray 1735913YP

HOSE, Fuel

$

$

Not available

19

Murray 1730268SM

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

20

Murray 1736994YP

CAPSCREW, M8 x 35

$

$

Not available

21

Murray 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Murray 1736995YP

WASHER, 9

$

$

Not available

24

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 3 left!

0

25

Murray 1735980YP

TIE

$

$

Not available

26

Murray 1732875SM

RETAINER, Clutch
(Superseded to 1737421AYP)

$12.99

$

Usually ships in 2-12 days

0

28

Murray 1736105SM

CLUTCH, Electric

$387.99

$

Usually ships in 2-12 days

0

29

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 7

0

30

Murray 1918199SM

LOCKWSHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

31

Murray 1960649SM

CAPSCREW, Hex Head, 7/16-20 x 3-1/2

$7.49

$

Usually ships in 2-12 days

0

32

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

33

Murray 1736996YP

CAPSCREW, M8 x 45

$

$

Not available

34

Murray 1936228SM

CAPSCREW, Hex Socket Head, 5/16-18 x 3/4

$4.49

$

In Stock, only 3 left!

0

35

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Murray 1736999YP

WASHER, 8.4

$

$

Not available

40

Murray 1737000YP

NUT, 8

$

$

Not available
