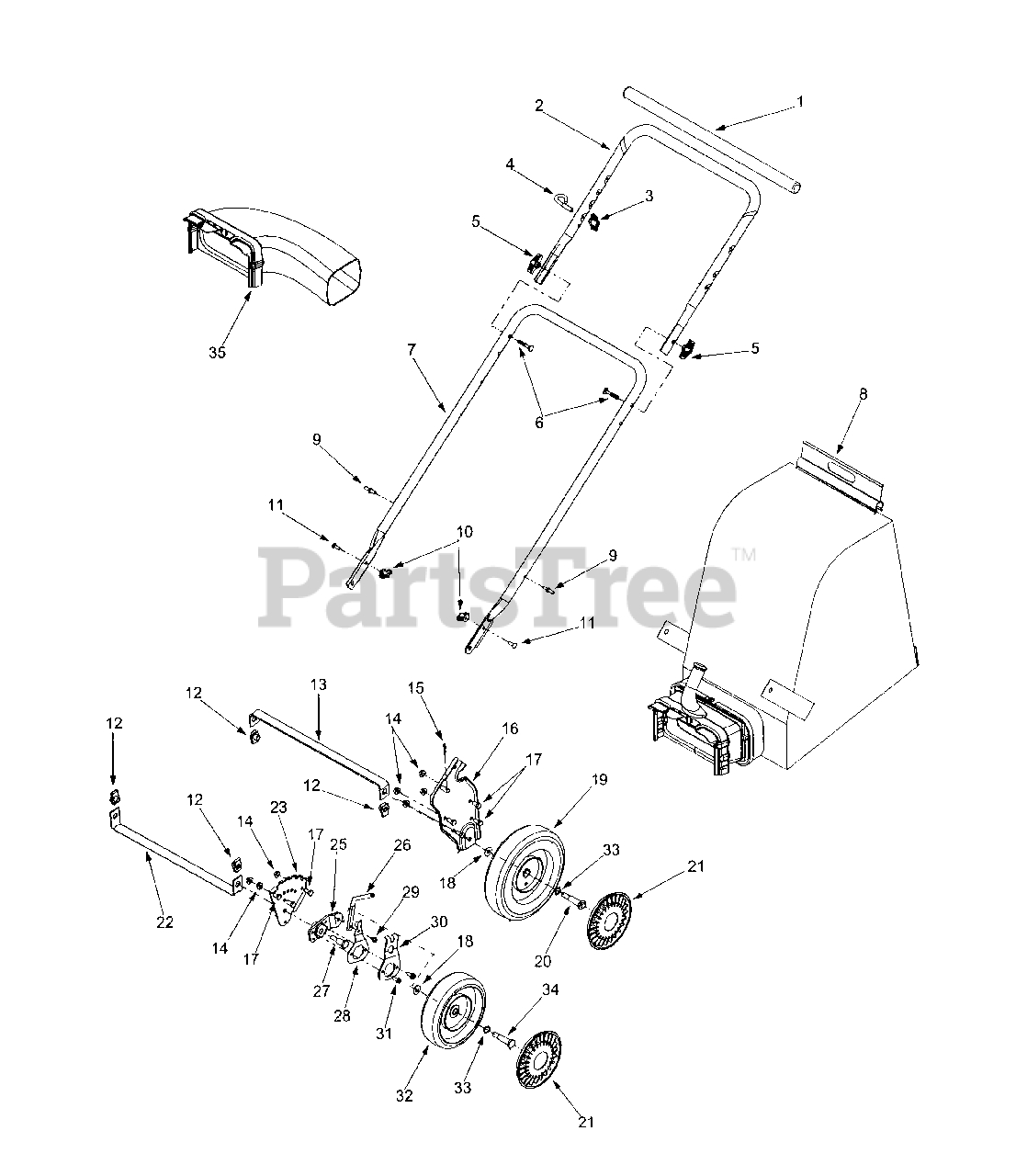

YB-50 (24A-030E190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2001) General Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

General Assembly Parts Diagram

  • Title

1

MTD 720-0295

Foam Grip

$30.99

$

Usually ships in 3-6 days

0

2

MTD 749-0438D-0637

Upper Handle

$

$

Not available

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 15

0

5

MTD 920-0276

Handle Knob 5/16-18

$3.49

$

In Stock, Qty 9

0

6

MTD 710-1174

Carriage Bolt

$6.99

$

In Stock, Qty 20+

0

7

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

$46.99

$

In Stock, Qty 7

0

8

MTD 664-04040

Bag Assembly

$219.99

$

In Stock, Qty 11

0

9

MTD 711-1293

Studs

$4.49

$

Usually ships in 3-6 days

0

10

MTD 712-0397A

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0703

Carriage Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-0453

Lock U-Clip Nut 3/8-16

$

$

Not available

13

MTD 781-0777

Rear Wheel Support Brace

Note: NLA

Variations

MTD 781-0777-0637

No Longer Available BRACE REAR - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

15

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

16

MTD 681-0155

Handle Bracket Ass'y LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0155-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$39.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0155-0662

No Longer Available BRACKET AS - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0155-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0155-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0155-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

16

MTD 681-0156

Hndle Brkt Ass'y RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0156-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

MTD 681-0156-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0156-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0156-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0156-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0156-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0156-0721

No Longer Available BRACKET AS - SEARS RED (0721)

$

$

Not available

MTD 681-0156-4044

No Longer Available BRACKET AS - CRAFTSMAN RED (4044)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

17

MTD 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

18

MTD 736-0105

Bell Washer .401 ID x .870 OD

$3.99

$

In Stock, Qty 20+

0

19

MTD 734-1992

Wheel 9 x 2

$51.99

$

Usually ships in 3-6 days

0

20

MTD 738-1015

Shoulder Screw 3/8-16

$9.99

$

Usually ships in 3-6 days

0

21

MTD 731-0981C

Hubcap

$9.99

$

In Stock, Qty 6

0

22

MTD 781-0725A-0637

Front Wheel Support Brace

$

$

Not available

23

MTD 781-0765-0637

Hgt Bracket Adjuster LH

$

$

Not available

23

MTD 781-0766

Height Brkt Adj RH

Note: NLA

Variations

MTD 781-0766-0637

Height Bracket Adjuster RH - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 748-0417

Pivot Arm

$

$

Not available

26

MTD 747-1100

Handle Height Adjuster

Note: NLA

$

$

Not available

27

MTD 738-1017

Shoulder Screw 3/8-16

Note: NLA

$

$

Not available

28

MTD 732-0864

Height Adjuster Plate Spring

$

$

Not available

29

MTD 710-0653

Hex Washer Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

30

MTD 782-0578

Spring Lever Support Bracket

Note: NLA

Variations

MTD 782-0578-0637

No Longer Available BRACKET SP - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

32

MTD 734-1978

Wheel 8 x 2

$45.99

$

In Stock, only 2 left!

0

33

MTD 936-0232

Wave Washer .531 ID x .781 OD
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 18

0

34

MTD 738-0213

Shoulder Screw

$7.49

$

In Stock, Qty 5

0

35

MTD OEM-290-012

Blower Chute Assembly

$99.99

$

Usually ships in 3-6 days

0
