YB-500 (247-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Handle Ass'y And Frame Ass'y Parts Diagram

Yard Boss Chipper Shredder Vacuum

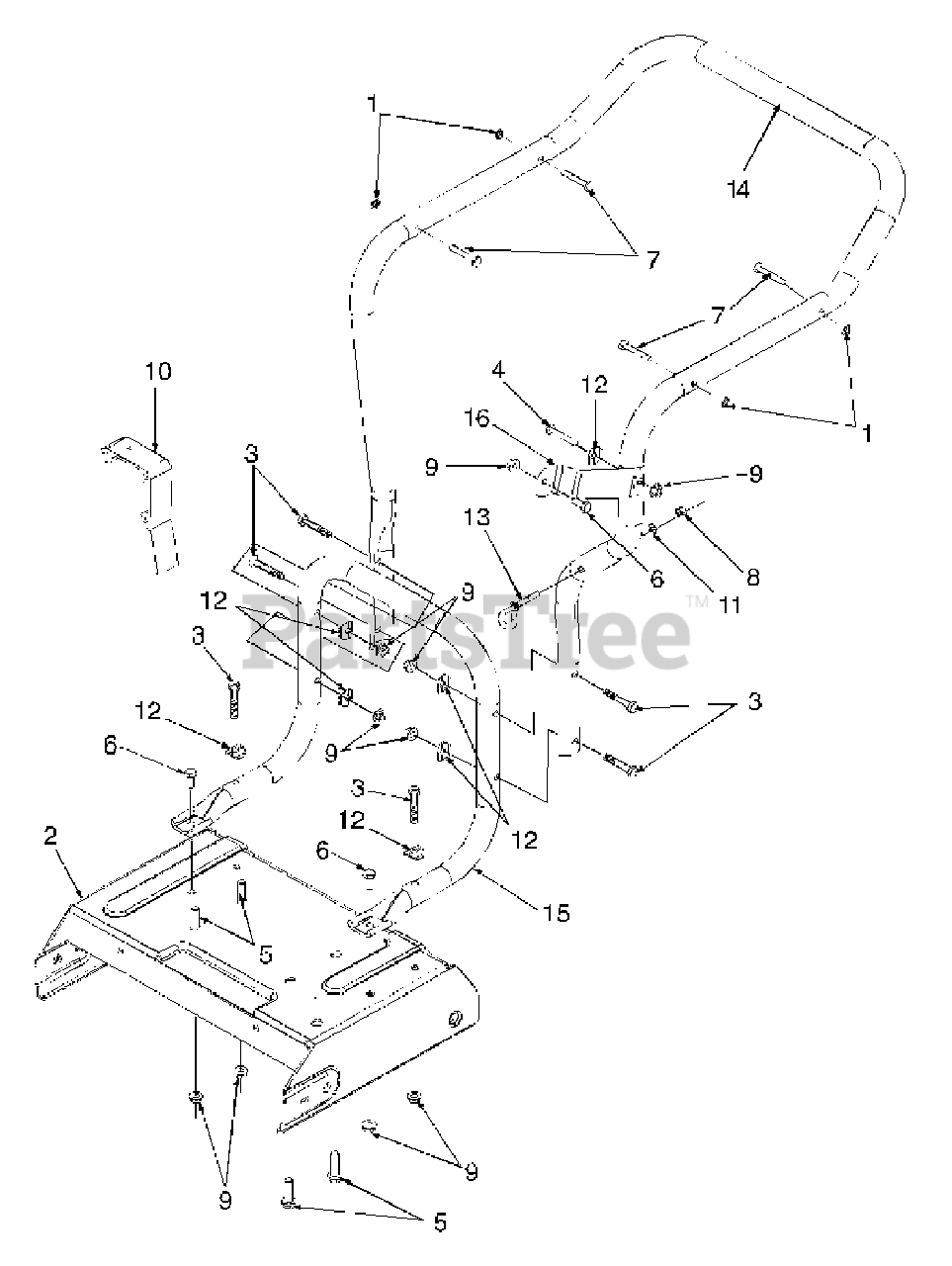

Handle Ass'y And Frame Ass'y Parts Diagram

  • Title

1

White Outdoor 1539-019

PUSH NUT .250

$3.99

$

In Stock, Qty 16

0

2

White Outdoor 681-0086

FRAME ASSEMBLY

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 681-0086-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 681-0086-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0086-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

3

White Outdoor 710-0380

HEX HEAD CAP SCREW 5/16-18 x 1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0442

HEX HEAD CAP SCREW 5/16-18 x 1.50
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

5

White Outdoor 710-0502A

HEX LOCK WASH HD - TAP SCREW 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

6

White Outdoor 710-3008

HEX HEAD CAP SCREW 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 711-0737

PIN: STUD .250 x 1.75
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

8

White Outdoor 712-0138

HEX NUT 1/4-28

$6.49

$

Usually ships in 3-6 days

0

9

White Outdoor 712-3004A

HEX FLANGE LOCK NUT 5/16-18

$3.49

$

In Stock, Qty 20+

0

10

White Outdoor 719-0330A

MOUNTING ADAPTER

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

11

White Outdoor 736-0329

LOCK WASHER 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

12

White Outdoor 736-0451

SADDLE WASHER .320 ID x .83 OD

$3.99

$

In Stock, only 2 left!

0

13

737-0815

EYE BOLT

$

$

Not available

14

White Outdoor 749-0979

UPPER HANDLE

Variations

White Outdoor 749-0979-0637

No Longer Available HNDL. UPPER PUSH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-0979-0662

Handle, Upper - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 749-0979-0665

No Longer Available HNDL. UPPER PUSH - YARDMAN GREEN (0665)

$

$

Not available

$

$

15

White Outdoor 749-0980

LOWER HANDLE

Variations

White Outdoor 749-0980-0637

No Longer Available HNDL. LOWER PUSH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-0980-0638

No Longer Available HNDL. LOWER PUSH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 749-0980-0662

Handle, Lower - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 749-0980-0665

No Longer Available HNDL. LOWER PUSH - YARDMAN GREEN (0665)

$

$

Not available

$

$

16

White Outdoor 781-0647

DISCHARGE CHUTE STABILIZING BRACKET

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 781-0647-0637

Stabilizer Bracket, D - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0647-0716

BRACKET. STABILIZER D - CUB YELLOW-99 (0716)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0647-0638

BRACKET. STABILIZER D - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0647-0650

BRACKET. STABILIZER D - RED METALLIC (0650)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0647-0662

BRACKET. STABILIZER D - OYSTER GRAY (0662)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0647-0665

BRACKET. STABILIZER D - YARDMAN GREEN (0665)

$12.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0
