YB-500 (247-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Impeller Ass'y Parts Diagram

Yard Boss Chipper Shredder Vacuum

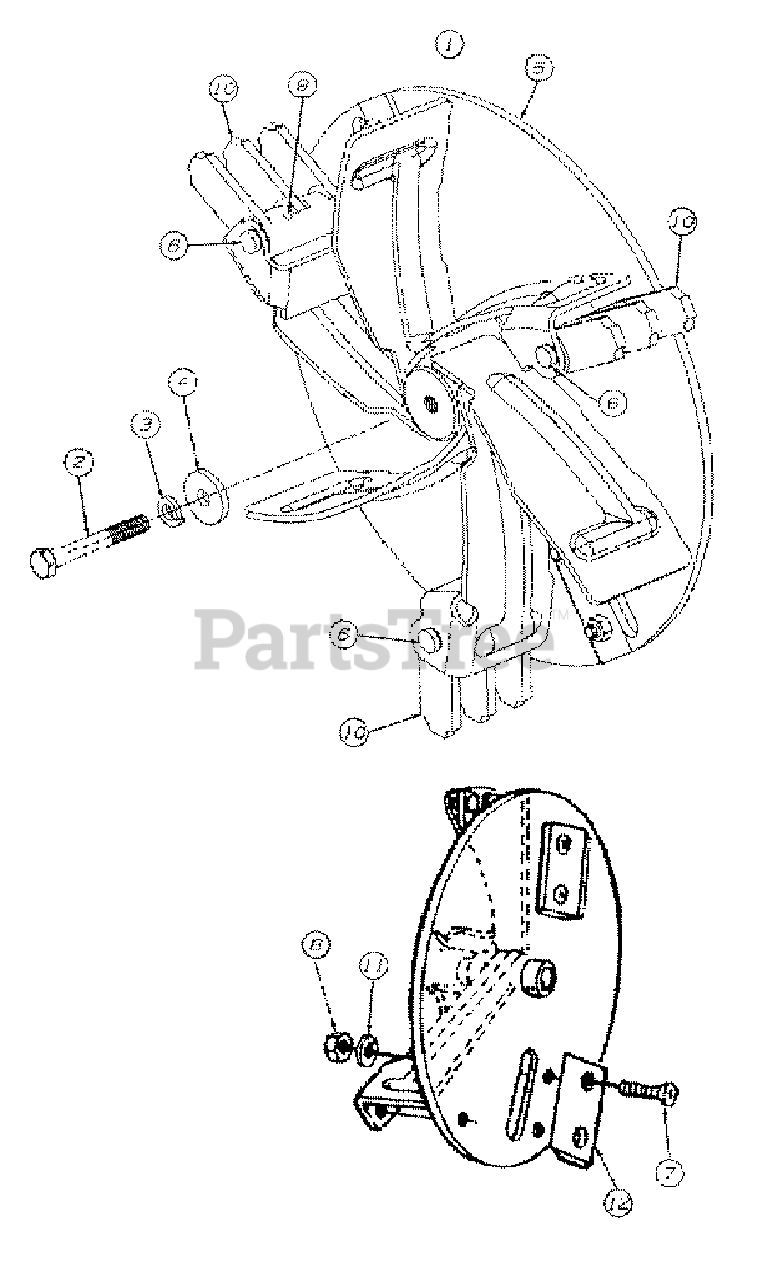

Impeller Ass'y Parts Diagram

  • Title

1

White Outdoor 681-0108

IMPELLER ASS'Y COMP. (203B)
(Superseded to 981-04090)

Note: INCL. REF. NOS. 2 THRU 12

$372.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0051

IMPELLER ASS'Y COMP. (103A)
(Superseded to 981-04090)

Note: INCL. REF. NOS. 2 THRU 12

$372.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-1273

SCREW-HEX

$8.49

$

Usually ships in 3-6 days

0

3

White Outdoor 736-0217

WASHER-LOCK

$4.49

$

In Stock, only 3 left!

0

4

White Outdoor 736-0247

WASHER-FLAT

$10.99

$

In Stock, Qty 20+

0

5

681-0595

IMPELLER

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

6

White Outdoor 711-0833B

PIN-CLEVIS
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

7

White Outdoor 710-1054

SCREW-FLAT HEAD

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0411

NUT-HEX LOCK

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 715-0162

PIN-ROLL SPRING
(Superseded to 915-0162)

$5.49

$

In Stock, only 2 left!

0

10

White Outdoor 719-0329

BLADE-FLAIL

$33.99

$

In Stock, only 2 left!

0

11

White Outdoor 736-0119

WASHER-LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 781-0490

BLADE-CHIPPER
(Superseded to 981-0490)

$32.99

$

In Stock, Qty 8

0
