YB-500 (24A-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Frame Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

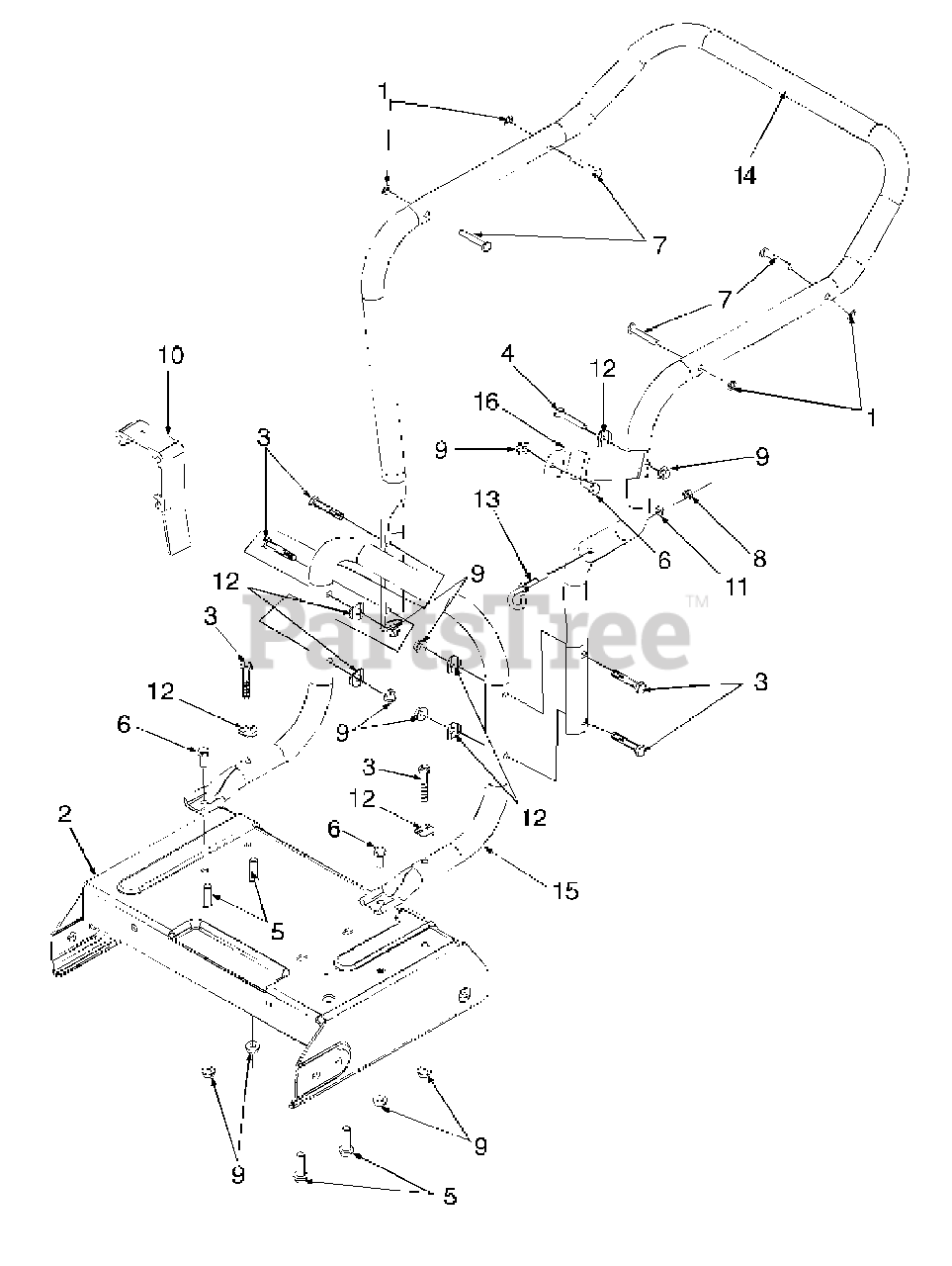

Frame Assembly Parts Diagram

  • Title

1

MTD 1539-019

Nut, Push

$4.49

$

In Stock, Qty 10

0

2

MTD 681-0086A

Frame Assembly

Note: NLA

Variations

681-0086A-0498

MTD 681-0086A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

681-0086A-0637

MTD 681-0086A-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

681-0086A-0662

MTD 681-0086A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

3

MTD 710-3180

Screw, Hex Cap, 5/16-18 x 1.75

$5.99

$

In Stock, Qty 20+

0

4

MTD 710-0805

Screw, Hex Cap, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-0502A

Screw, Hex Wash. Hd. Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, Qty 9

0

6

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 911-0737

Pin, Stud, .250 x 1.75

$4.99

$

In Stock, Qty 6

0

8

MTD 912-0138

Nut, Hex, 1/4-28
(Superseded to 712-0138)

$

$

Not available

9

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 719-0330A

Adapter, Mounting

Note: NLA

$

$

Not available

11

MTD 936-0329

Washer, Lock, 1/4

$4.99

$

In Stock, Qty 15

0

12

MTD 936-0451

Washer, Saddle, .32 ID x .93 OD
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

13

MTD 747-0815

Bolt, Eye

$15.99

$

Usually ships in 3-6 days

0

14

MTD 749-0979-0662

Handle, Upper

Note: NLA

$

$

Not available

15

MTD 749-0980-0662

Handle, Lower

Note: NLA

$

$

Not available

16

MTD 781-0647-0662

Bracket, Chute Stabilizing

$12.99

$

Usually ships in 3-6 days

0
