YB-550 (247-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Chain Case, Transmission Ass'y And Axle Ass'y Parts Diagram

Yard Boss Chipper Shredder Vacuum

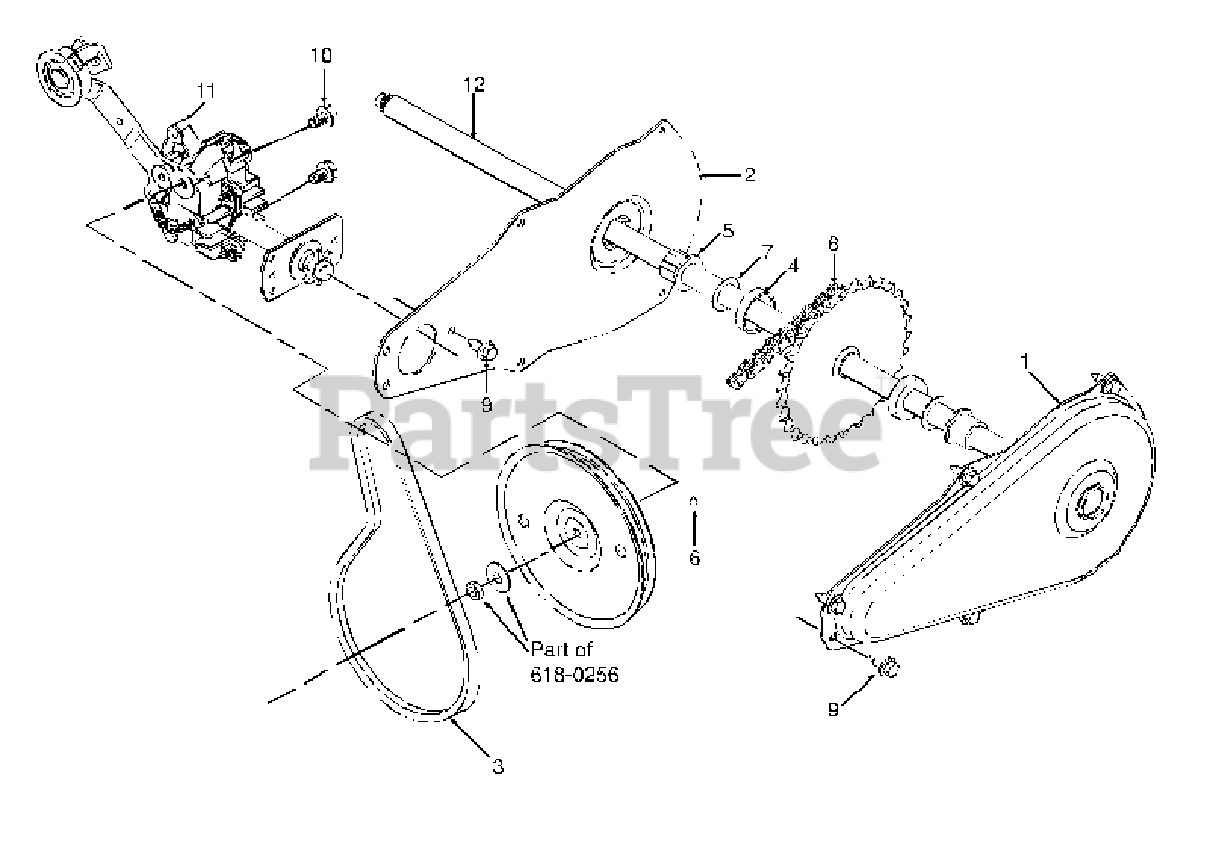

Chain Case, Transmission Ass'y And Axle Ass'y Parts Diagram

  • Title

1

White Outdoor 781-0677

CHAIN CASE LH

Variations

White Outdoor 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

White Outdoor 781-0676

CHAIN CASE RH

Variations

White Outdoor 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

White Outdoor 754-0457

V-BELT 3/8 x 24.68
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

White Outdoor 748-0313

SPACER .630 x 1.25 x .290

$3.49

$

Usually ships in 3-6 days

0

5

White Outdoor 741-0413

HEX FLANGE BEARING .631 x .720

$8.99

$

Usually ships in 3-6 days

0

6

White Outdoor 737-0223

BEALENE GREASE
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0

7

White Outdoor 736-0336

FLAT WASHER 5/8 x 1.00 x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 713-0422

CHAIN #41 x .500
(Superseded to 913-0422)

Note: Code: N Notates a new part (not previously existing)

$30.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0896

HEX WASH HD. AB-TAP SCREW 1/4-20 x .625"

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0603

HEX WASH HD. TYPE B SCREW 5/16-18 x .50"

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 618-0256

TRANSMISSION ASS'Y.

Note: (See "Idler Brkt. Ass'y And Pulley" illustration and parts list)

$431.99

$

Usually ships in 3-6 days

0

12

White Outdoor 611-0063

SHAFT: AXLE ASSEMBLY

Note: Code: N Notates a new part (not previously existing)

$128.99

$

Usually ships in 3-6 days

0
