YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1999) Chute, Nozzle And Bag Parts Diagram

Yard Boss Chipper Shredder Vacuum

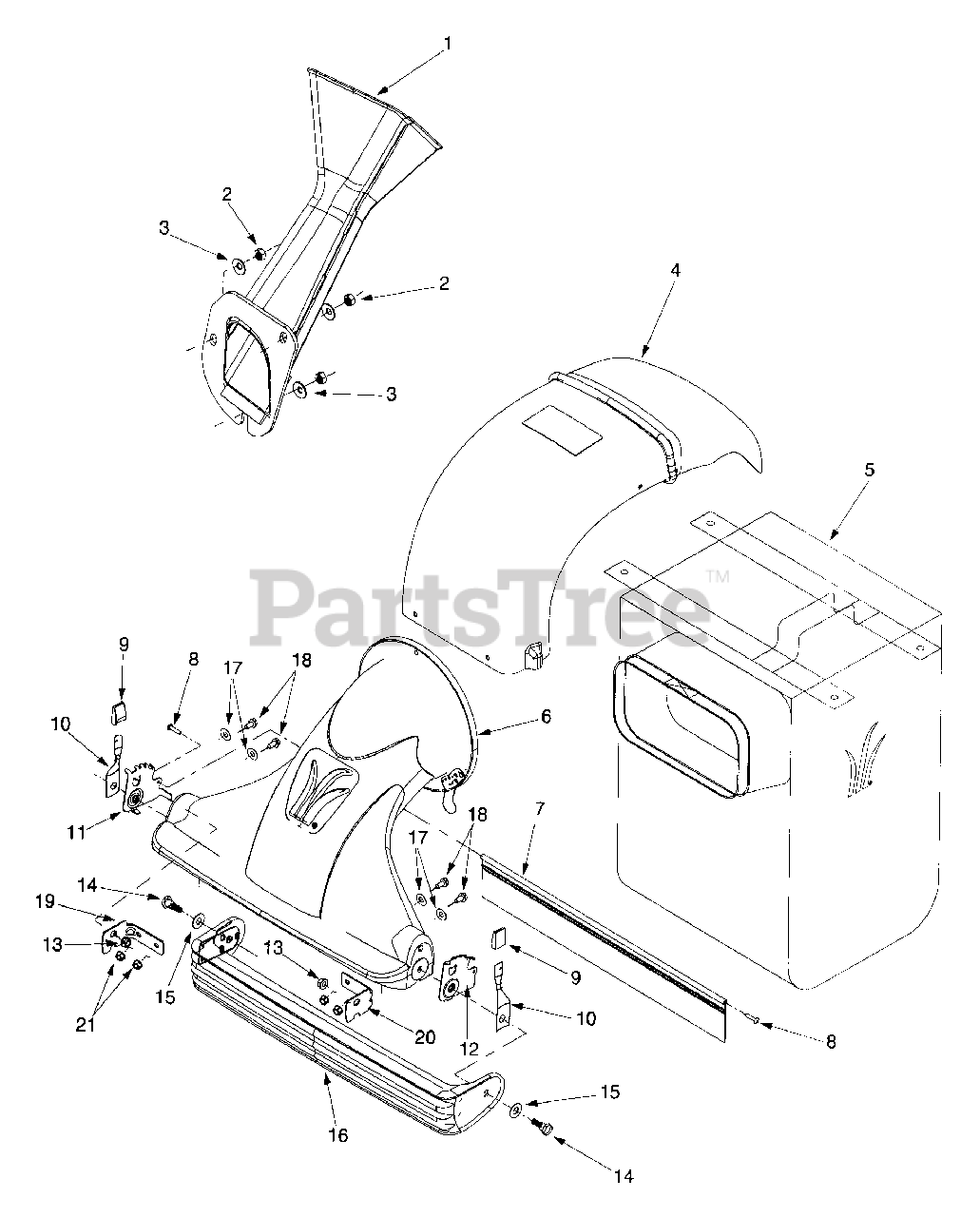

Chute, Nozzle And Bag Parts Diagram

  • Title

1

MTD 681-0095

Chipper Chute

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0095-0638

CHUTE ASSY-CHIPPER COMPLETE - MTD/TROY-BILT RED (0638)

$239.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0691

CHUTE ASSY-CHIPPER COMPLETE - BLACK JACK (0691)

$239.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0709

CHUTE ASSY-CHIPPER COMPLETE - MASTERCRAFT GREEN (0709)

$239.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0483

CHUTE ASSY-CHIPPER COMPLETE - CHARCOAL GRAY (0483)

$239.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0498

CHUTE ASSY-CHIPPER COMPLETE - OLD CUB YELLOW (0498)

$213.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0650

CHUTE ASSY-CHIPPER COMPLETE - RED METALLIC (0650)

$208.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0665

CHUTE ASSY-CHIPPER COMPLETE - YARDMAN GREEN (0665)

$239.99

$

Usually ships in 3-6 days

0

MTD 681-0095-0716

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW-99 (0716)

$213.99

$

Usually ships in 3-6 days

0

MTD 681-0095-4021

CHUTE ASSY-CHIPPER COMPLETE - CUB YELLOW 2 (4021)

$213.99

$

Usually ships in 3-6 days

0

$222.99

$

Usually ships in 3-6 days

0

2

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Bell Washer .340 ID x .872 OD

$3.99

$

In Stock, Qty 20+

0

4

MTD 731-1690A

Discharge Chute

$192.99

$

Usually ships in 3-6 days

0

5

MTD 964-04001

Bag

$208.99

$

In Stock, only 1 left!

0

6

MTD 631-0069

Nozzle Asm
(Superseded to 631-0086)

$249.99

$

Usually ships in 3-6 days

0

7

MTD 731-1831

Nozzle Flap

$18.99

$

In Stock, only 1 left!

0

8

MTD 710-0969

Screw

$4.49

$

In Stock, only 3 left!

0

9

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

10

MTD 732-0754

Spring Lever

$9.49

$

Usually ships in 3-6 days

0

11

MTD 781-0702-0637

Index Bracket RH

$22.99

$

In Stock, only 1 left!

0

12

MTD 781-0703-0637

Index Bracket LH

$22.99

$

In Stock, only 1 left!

0

13

MTD 912-0431

Hex Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

14

MTD 938-0913

Shoulder Screw
(Superseded to 738-0913)

$

$

Not available

15

MTD 736-3084

Flat Washer .510 x 1.12 x .060

$4.49

$

In Stock, Qty 20+

0

16

MTD 631-0047

Door Asm

$88.99

$

Usually ships in 3-6 days

0

17

MTD 736-0173

Flat Washer .28 ID x .74 OD

$3.99

$

In Stock, Qty 10

0

18

MTD 710-0751

Hex Cap Screw 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

19

MTD 781-0704-0637

Nozzle Reinforcement Bracket RH

$

$

Not available

20

MTD 781-0705-0637

Nozzle Reinforcement Bracket LH

$

$

Not available

21

MTD 912-3027

Hex Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0
