YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2000)

Yard Boss Chipper Shredder Vacuum

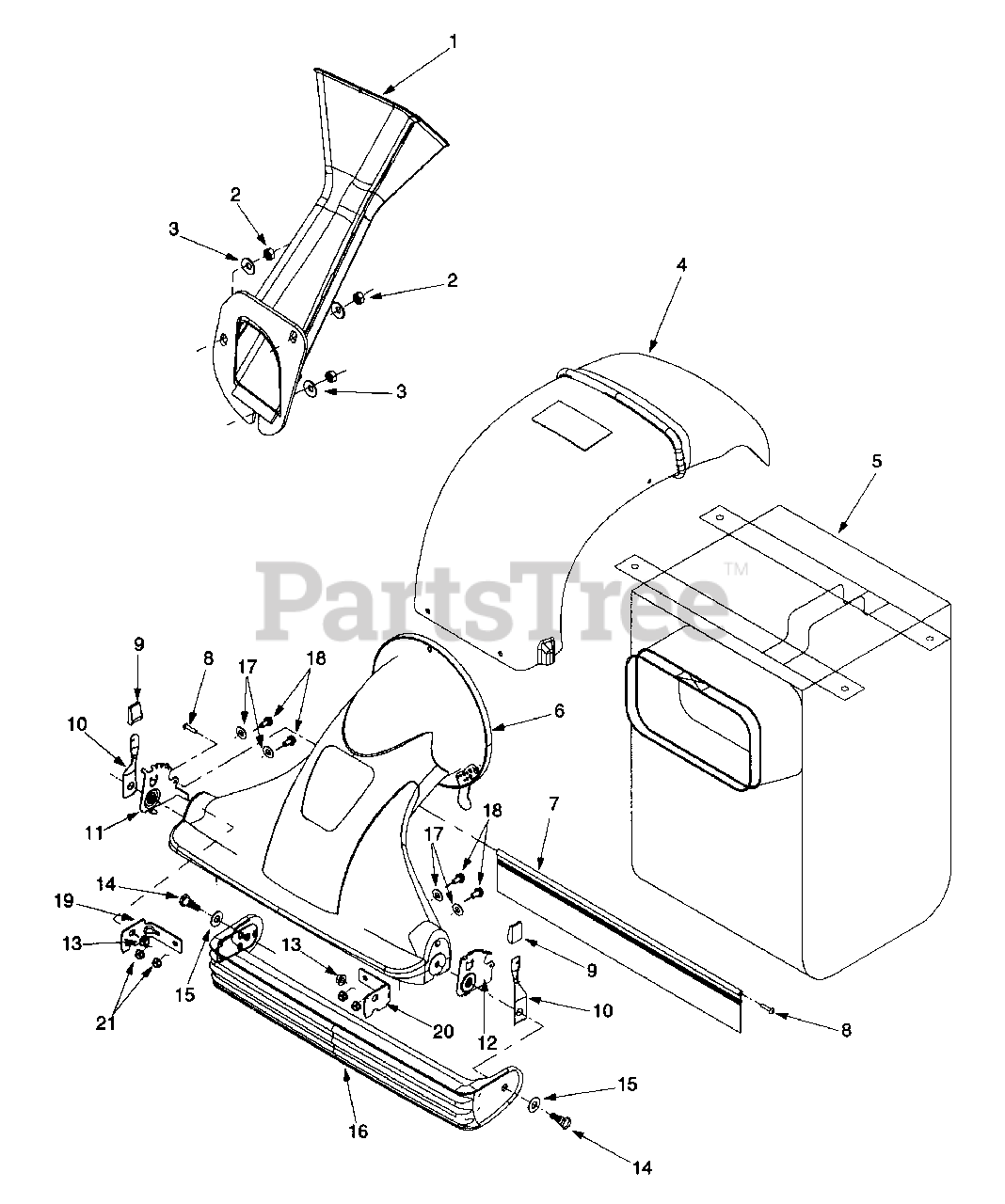

YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2000) > Parts Diagrams (6) > Chute,Nozzle & Bag

  • Title
681-0095

1

Chipper Chute

Part# 681-0095

Note: *CHOOSE COLOR WHEN ORDERING*

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

CHUTE ASSY-CHIPPER COMPLETE

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

OLD CUB YELLOW (0498)

CHUTE ASSY-CHIPPER COMPLETE

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

CHUTE ASSY-CHIPPER COMPLETE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

RED METALLIC (0650)

CHUTE ASSY-CHIPPER COMPLETE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

YARDMAN GREEN (0665)

CHUTE ASSY-CHIPPER COMPLETE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

BLACK JACK (0691)

CHUTE ASSY-CHIPPER COMPLETE

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

MASTERCRAFT GREEN (0709)

CHUTE ASSY-CHIPPER COMPLETE

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

CUB YELLOW-99 (0716)

CHUTE ASSY-CHIPPER COMPLETE

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

CUB YELLOW 2 (4021)

CHUTE ASSY-CHIPPER COMPLETE

Part# CUB YELLOW 2 (4021)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $167.79

912-3010

2

Hex Nut 5/16-18

Part# 912-3010

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0242

3

Bell Washer.340 ID x .872 OD

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

731-1838A

4

Discharge Chute

Part# 731-1838A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $126.16

764-0493

5

Bag

Part# 764-0493

Note: NLA

OEM Warranty Repair Part for MTD

Not available

631-0086

6

Nozzle Asm

Part# 631-0086

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $196.19

731-1831

7

Nozzle Flap

Part# 731-1831

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.08

710-0969

8

Screw

Part# 710-0969

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

720-0426

9

Height Adjustment Knob

Part# 720-0426

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.90

732-0754

10

Spring Lever

Part# 732-0754

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.36

781-0702-0637

11

Index Bracket RH

Part# 781-0702-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $16.02

781-0703-0637

12

Index Bracket LH

Part# 781-0703-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.68

912-0431

13

Hex Flange Lock Nut 3/8-16

Part# 912-0431

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

938-0913

14

Shoulder Screw

Part# 938-0913

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.23

736-3084

15

Flat Washer .510 x 1.12 x .060

Part# 736-3084

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.22

631-0049

16

Door Asm

Part# 631-0049

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $63.13

736-0173

17

Flat Washer .28 ID x .74 OD

Part# 736-0173

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0751

18

Hex Cap Screw 1/4-20 x .625

Part# 710-0751

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

781-0704-0637

19

Nozzle Reinforcement Bracket RH

Part# 781-0704-0637

OEM Warranty Repair Part for MTD

Not available

781-0705-0637

20

Nozzle Reinforcement Bracket LH

Part# 781-0705-0637

OEM Warranty Repair Part for MTD

Not available

912-3027

21

Hex Flange Lock Nut 1/4-20

Part# 912-3027

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.82
