YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2000) Impeller & Housing Parts Diagram

Yard Boss Chipper Shredder Vacuum

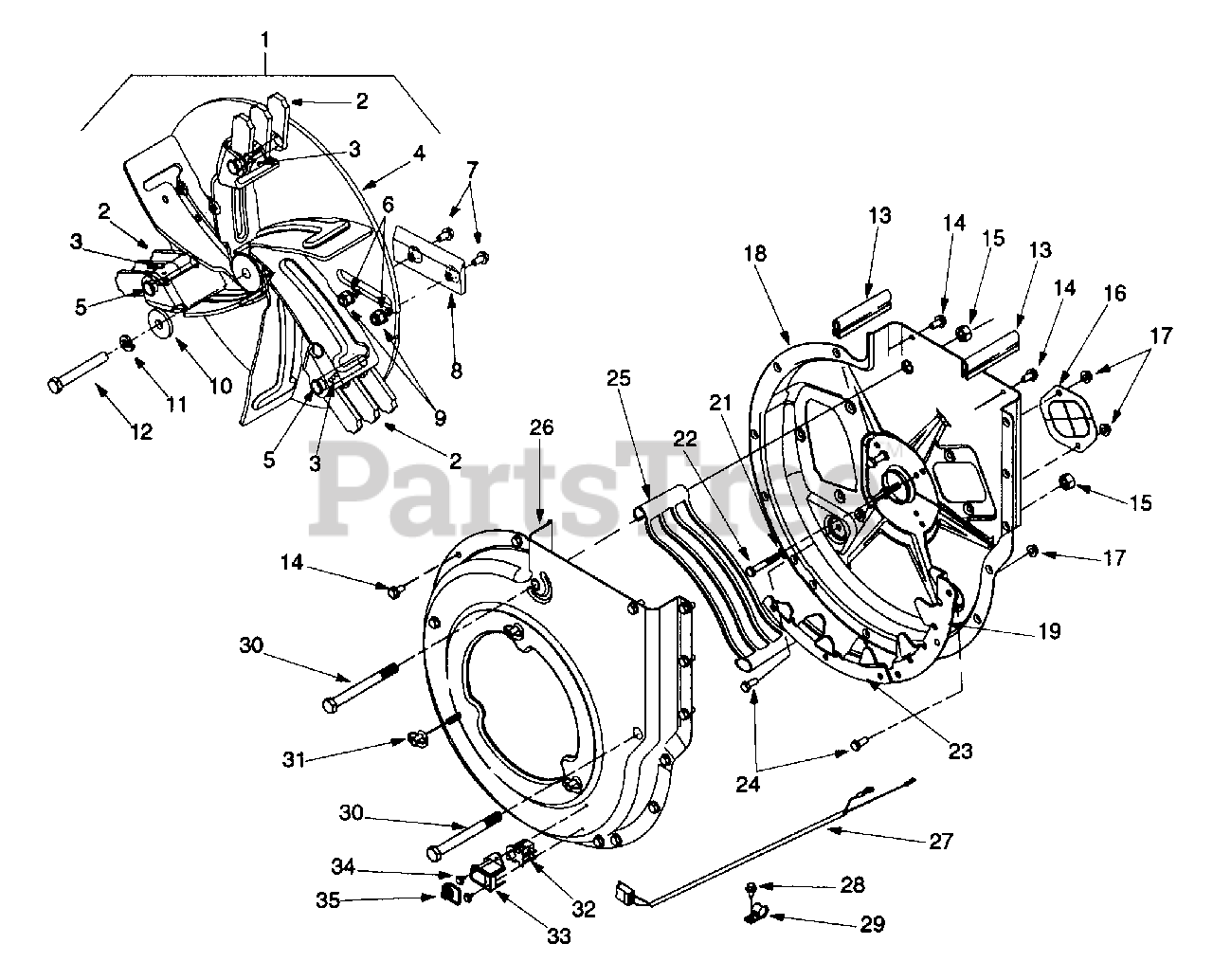

Impeller & Housing Parts Diagram

  • Title

1

MTD 981-04091

Impeller Ass'y Complete

Note: For Model 550

$496.99

$

Usually ships in 3-6 days

0

2

MTD 719-0329

Flail Blade

$31.99

$

In Stock, Qty 20+

0

3

MTD 715-0166

Spiral Pin

$6.49

$

In Stock, Qty 20+

0

4

MTD 981-04090

Impeller Assembly

Note: For Model 550

$372.99

$

Usually ships in 3-6 days

0

5

MTD 911-0833B

Clevis Pin

$11.99

$

In Stock, only 3 left!

0

6

MTD 936-0119

Lock Washer 5/16

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1054

Cap Screw 5/16-24 x 1.0

$3.99

$

In Stock, Qty 20+

0

8

MTD 981-0490

Chipper Blade

$30.99

$

In Stock, Qty 20+

0

9

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

10

MTD 736-0247

Flat Washer .406 x 1 1/4

$8.99

$

In Stock, Qty 20+

0

11

MTD 936-0217

Lock Washer 3/8
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

12

MTD 710-1273

Hex Cap Screw 3/8-24 x 2.75

$7.49

$

Usually ships in 3-6 days

0

13

MTD 723-0438

Rubber Seal

$9.99

$

Usually ships in 3-6 days

0

14

MTD 710-0604A

Hex Washer Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 912-0384

Hex Lock Nut 1/2-13

$6.49

$

In Stock, only 3 left!

0

16

MTD 781-0627

Chipper Blade Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

17

MTD 712-3004A

Hex Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

18

MTD 681-0098

Housing Ass'y Inner Flail

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0098-0483

HOUSING ASSY-FLAIL INNER - CHARCOAL GRAY (0483)

$193.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0498

HOUSING ASSY-FLAIL INNER - OLD CUB YELLOW (0498)

$238.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0637

HOUSING ASSY-FLAIL INNER - POWDER BLACK (0637)

$238.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0638

HOUSING ASSY-FLAIL INNER - MTD/TROY-BILT RED (0638)

$238.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0650

HOUSING ASSY-FLAIL INNER - RED METALLIC (0650)

$193.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0662

HOUSING ASSY-FLAIL INNER - OYSTER GRAY (0662)

$193.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0665

HOUSING ASSY-FLAIL INNER - YARDMAN GREEN (0665)

$193.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0689

HOUSING ASSY-FLAIL INNER - POLO GREEN (0689)

$193.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0716

HOUSING ASSY-FLAIL INNER - CUB YELLOW-99 (0716)

$238.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0691

HOUSING ASSY-FLAIL INNER - BLACK JACK (0691)

$

$

Not available

MTD 681-0098-0692

HOUSING ASSY-FLAIL INNER - AGWAY BLUE (0692)

$

$

Not available

$193.99

$

Usually ships in 3-6 days

0

19

MTD 781-0599-0637

Upper Shredder Blade

$30.99

$

In Stock, only 1 left!

0

21

MTD 936-0119

Lock Washer 5/16

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0772

Hex Cap Screw 5/16-18 x 2

$4.49

$

Usually ships in 3-6 days

0

23

MTD 781-0653-0637

Flail Housing Blade

$64.99

$

Usually ships in 3-6 days

0

24

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

25

MTD 719-0326

Discharge Screen

$94.99

$

In Stock, only 2 left!

0

26

MTD 681-0060

Housing Ass'y Outer Flail

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

27

MTD 929-0241A

Wire Harness

$57.99

$

Usually ships in 3-6 days

0

28

MTD 710-0896

Hex Washer Screw 1/4-14

$3.99

$

In Stock, Qty 20+

0

29

MTD 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

30

MTD 710-0382

Hex Cap Screw 1/2-13 x 5.0

$11.99

$

In Stock, only 2 left!

0

31

MTD 712-0421

Knob 5/16-18

$6.49

$

In Stock, Qty 20+

0

32

MTD 925-3166

Switch

$15.99

$

In Stock, Qty 20+

0

33

MTD 931-1613

Safety Switch Mounting Cover

$9.99

$

In Stock, only 2 left!

0

34

MTD 710-1268

Hex Washer Screw

$3.99

$

Usually ships in 3-6 days

0

35

MTD 925-1700

Switch Cover

$11.99

$

In Stock, only 2 left!

0
