YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2000) Transmission Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

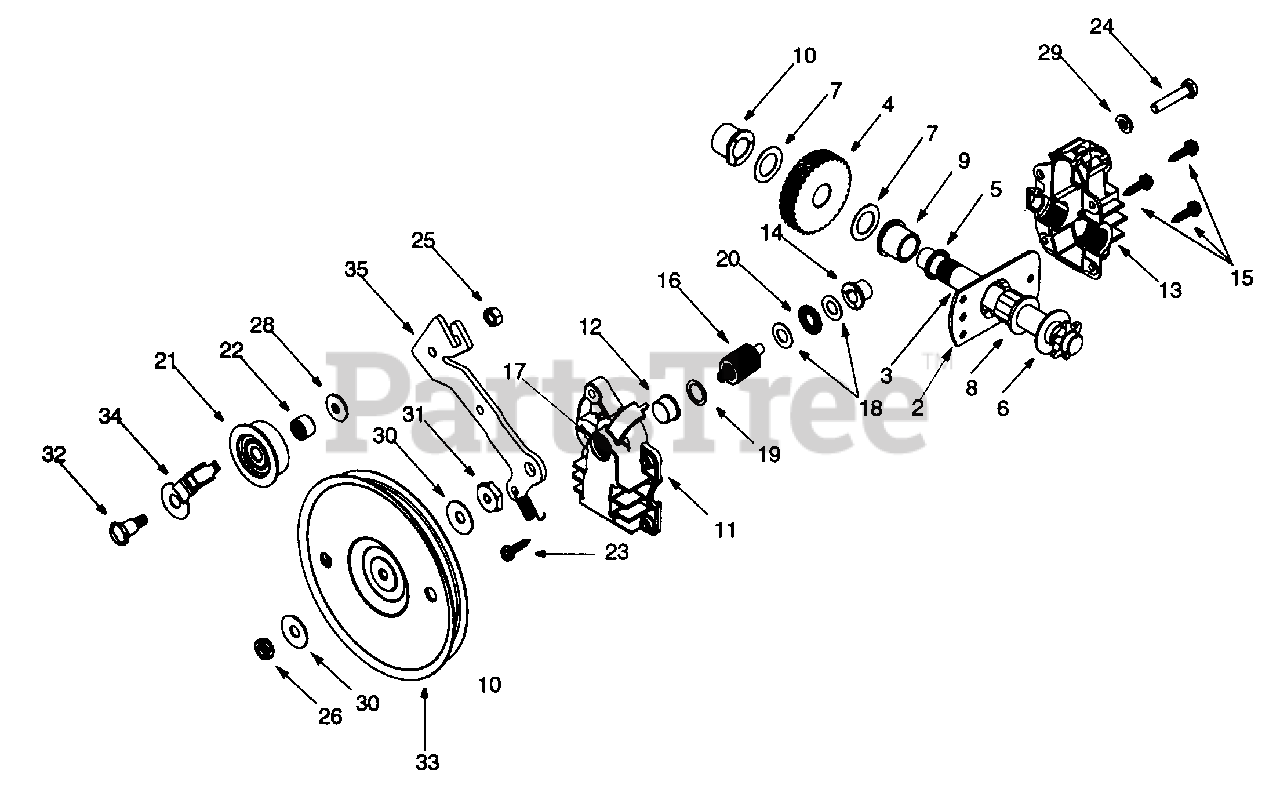

Transmission Assembly Parts Diagram

  • Title

1

MTD 918-0255

Transmission Assembly Complete

$829.99

$

Usually ships in 3-6 days

0

2

MTD 16500A-0637

Hex Bearing Cup

$8.99

$

Usually ships in 3-6 days

0

3

MTD 911-1118

Output Shaft 6T Sprocket

$32.99

$

Usually ships in 3-6 days

0

4

MTD 717-1432

Helical 34T Gear

$

$

Not available

5

MTD 721-0213

Oil Seal

$11.99

$

In Stock, Qty 8

0

6

MTD 736-0187

Flat Washer .64 ID x 1.24 OD

$4.99

$

In Stock, Qty 20+

0

7

MTD 936-0336

Flat Washer 5/8 x 1.0

$4.99

$

In Stock, Qty 20+

0

8

MTD 941-0413

Hex Flange Bearing .631 ID

$10.99

$

Usually ships in 3-6 days

0

9

MTD 741-0414

Flange Bearing .629 ID

$11.99

$

Usually ships in 3-6 days

0

10

MTD 941-0415

Flange Bearing .566 ID

$11.99

$

Usually ships in 3-6 days

0

11

MTD 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

12

MTD 748-0373

Flange Bearing .503 ID

$4.49

$

Usually ships in 3-6 days

0

13

MTD 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

14

MTD 748-0208A

Flange Bearing .378 ID

$4.99

$

Usually ships in 3-6 days

0

15

MTD 710-0589

Hex Washer Screw #10-16 x .75

$7.49

$

Usually ships in 3-6 days

0

16

MTD 717-1433

Pinion Shaft 107

$40.99

$

Usually ships in 3-6 days

0

17

MTD 921-0329

Oil Seal

$10.99

$

Usually ships in 3-6 days

0

18

MTD 936-0314

Thrust Washer .382 ID x .684 OD
(Superseded to 736-0314)

$

$

Not available

19

MTD 936-0520

Flat Washer .504 ID x .70 OD

$6.49

$

Usually ships in 3-6 days

0

20

MTD 741-0479

Thrust Bearing .375 ID x .812 OD

$12.99

$

Usually ships in 3-6 days

0

21

MTD 956-0008

Pulley Ass'y Idler w/ Bearing

$21.99

$

In Stock, only 2 left!

0

22

MTD 941-0556

Needle Bearing .375 ID x .375 OD
(Superseded to 741-0556)

$

$

Not available

23

MTD 710-0589

Hex Screw #10-16 x .75

$7.49

$

Usually ships in 3-6 days

0

24

MTD 710-1062

Hex Cap Screw 1/4-20 x 1.25

$6.99

$

Usually ships in 3-6 days

0

25

MTD 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

26

MTD 912-3045

Hex Jam Nut 5/16-24 LH Thd

$4.99

$

Usually ships in 3-6 days

0

27

MTD 932-0357A

Extension Spring 1.12 Lg
(Superseded to 732-0357A)

$4.99

$

In Stock, Qty 5

0

28

MTD 736-0270

Bell Washer .265 ID x .75 OD

$4.49

$

In Stock, Qty 20+

0

29

MTD 936-0329

Lock Washer 1/4

$4.99

$

In Stock, Qty 16

0

30

MTD 936-0425

Bell Washer .325 ID x .930 OD
(Superseded to 736-0425)

$

$

Not available

31

MTD 738-0440

Shoulder Spacer .375 ID x .165 OD

$6.49

$

In Stock, only 3 left!

0

32

MTD 938-0826

Shoulder Bolt 1/4-28 x .375
(Superseded to 738-0826)

$13.99

$

In Stock, only 1 left!

0

33

MTD 756-0656

Flat Pulley 5.06 Dia

$39.99

$

Usually ships in 3-6 days

0

34

MTD 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

35

MTD 682-0054

Idler Bracket

$27.99

$

Usually ships in 3-6 days

0
