YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Flail Housing Assemblies Parts Diagram

Yard Boss Chipper Shredder Vacuum

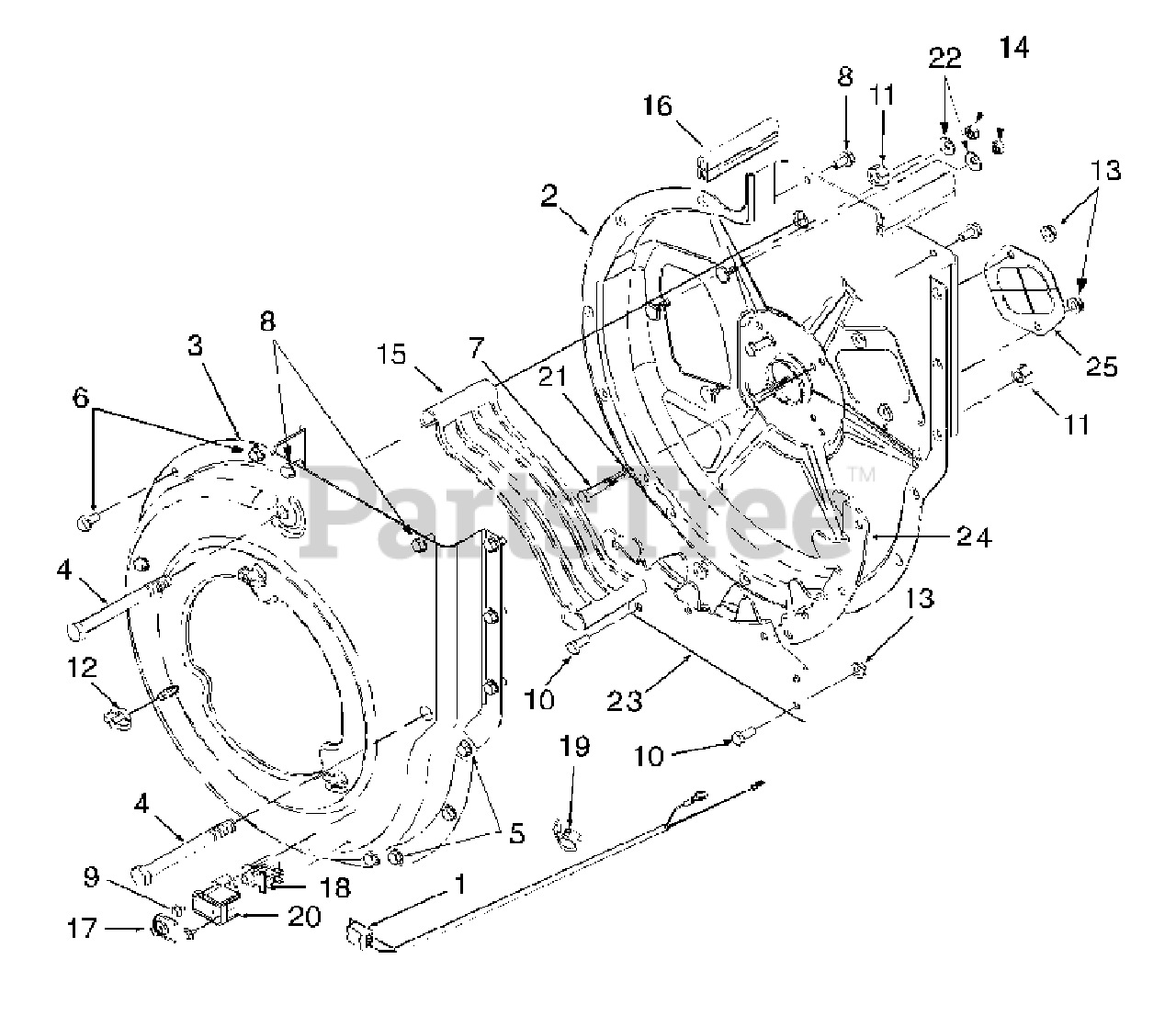

Flail Housing Assemblies Parts Diagram

  • Title

1

MTD 629-0241

Harness, Wire

$

$

Not available

2

MTD 681-0059-0662

Housing Ass'y, Inner Flail

Note: NLA

$

$

Not available

3

MTD 681-0060-0662

Housing Ass'y, Outer Flail

$288.99

$

Usually ships in 3-6 days

0

4

MTD 710-0382

Screw, Hex Cap, 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

5

MTD 710-0604A

Screw, Hex Wash Hd Tapp 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .50

$6.99

$

In Stock, Qty 20+

0

7

MTD 710-0772

Screw, Hex Cap, 5/16-24 x 2 GR5

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1268

Screw, Hex Wash Hd Tapp #10-16 x .38

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 912-0384

Nut, Hex Center Lock, 1/2-13

$6.99

$

In Stock, only 3 left!

0

12

MTD 712-0421

Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 912-3010

Nut, Hex, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 719-0326

Screen, Discharge

$101.99

$

In Stock, only 2 left!

0

16

MTD 723-0438

Rubber Seal

$10.99

$

Usually ships in 3-6 days

0

17

MTD 925-1700

Cover, Switch

$11.99

$

In Stock, only 2 left!

0

18

MTD 925-3166

Switch, Snap Mount

$16.99

$

In Stock, Qty 20+

0

19

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

20

MTD 931-1613

Cover, Safety Switch Mtg.

$10.99

$

In Stock, only 2 left!

0

21

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0242

Washer, Bell, .345 x .88 x .06

$4.49

$

In Stock, Qty 20+

0

23

MTD 781-0598-0637

Blade, Lower Shredder

$79.99

$

Usually ships in 3-6 days

0

24

MTD 781-0599-0637

Blade, Upper Shredder

$33.99

$

In Stock, only 1 left!

0

25

MTD 781-0627

Cover, Chipper Blade

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0
