YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Idler Bracket & Belt Cover Parts Diagram

Yard Boss Chipper Shredder Vacuum

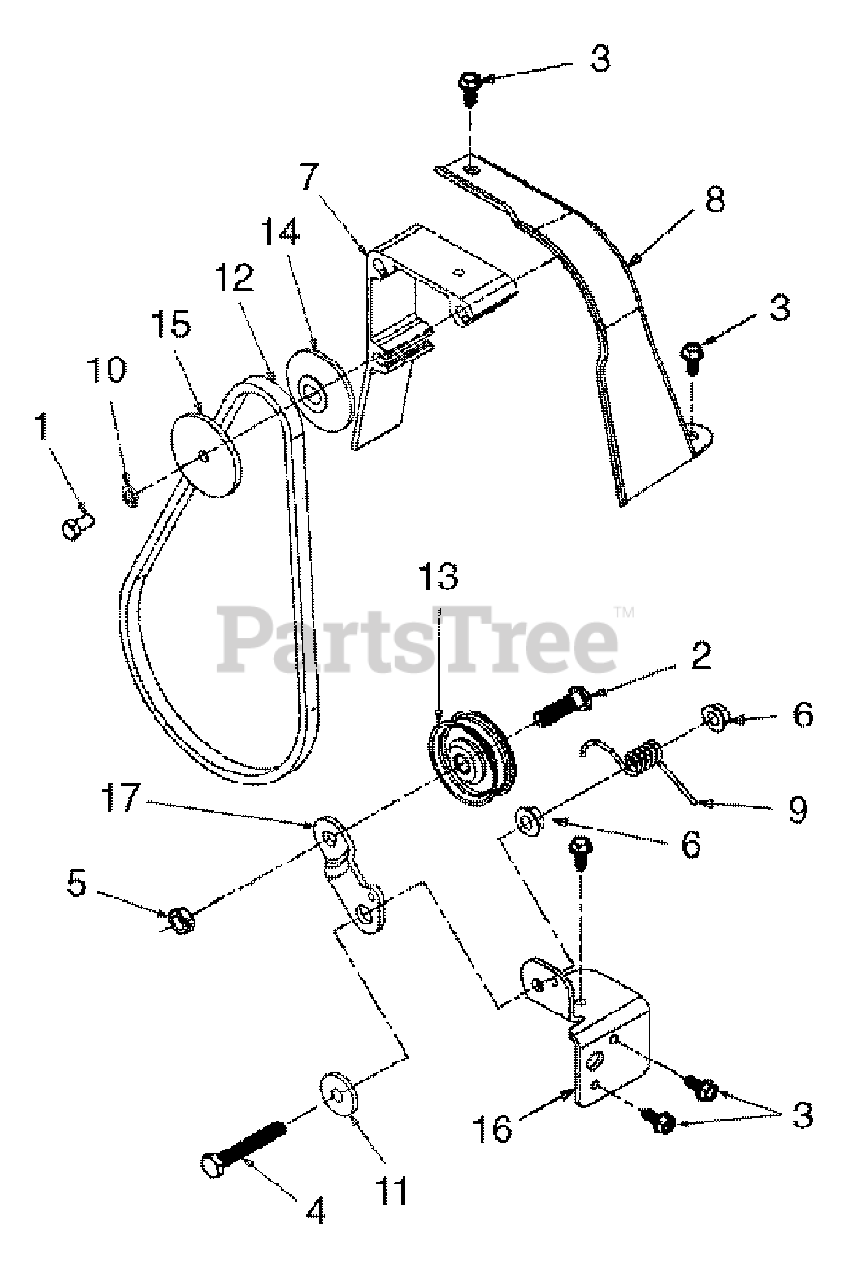

Idler Bracket & Belt Cover Parts Diagram

  • Title

1

MTD 710-0230

Screw, Hex Cap, 1/4-28 x .50

$

$

Not available

2

MTD 710-0723

Screw, Hex Cap, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0896

Screw, Hex Wash Hd Tapp. 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-04039

Screw, Hex Cap, 5/16-18 x 2.0

$4.49

$

In Stock, only 4 left!

0

5

MTD 712-0266A

Nut, Hex Cent-L Jam, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

7

MTD 719-0330A

Adapter, Engine Mtg

Note: NLA

$

$

Not available

8

MTD 731-1584

Belt Cover

Variations

MTD 731-1584-0637

BELT COVER PLAS. - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 732-0745

Spring, Torsion, .54 x 1.0

Note: NLA

$

$

Not available

10

MTD 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 12

0

11

MTD 748-0234

Shoulder Spacer, .50 ID x .27 Lg

$4.49

$

In Stock, Qty 10

0

12

MTD 954-0256

V-Belt, 3/8 x 29.0 Lg

$47.99

$

In Stock, only 3 left!

0

13

MTD 756-0313

Pulley, Flat Idler

$24.99

$

In Stock, Qty 7

0

14

MTD 756-0986

Pulley Half, 2.0 Dia

$

$

Not available

15

MTD 956-0987

Pulley Half, 2.0 Dia

$

$

Not available

16

MTD 781-0611-0662

Bracket, Idler Pivot

Note: NLA

$

$

Not available

17

MTD 781-0614

Bracket, Idler

$

$

Not available
