YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Impeller Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

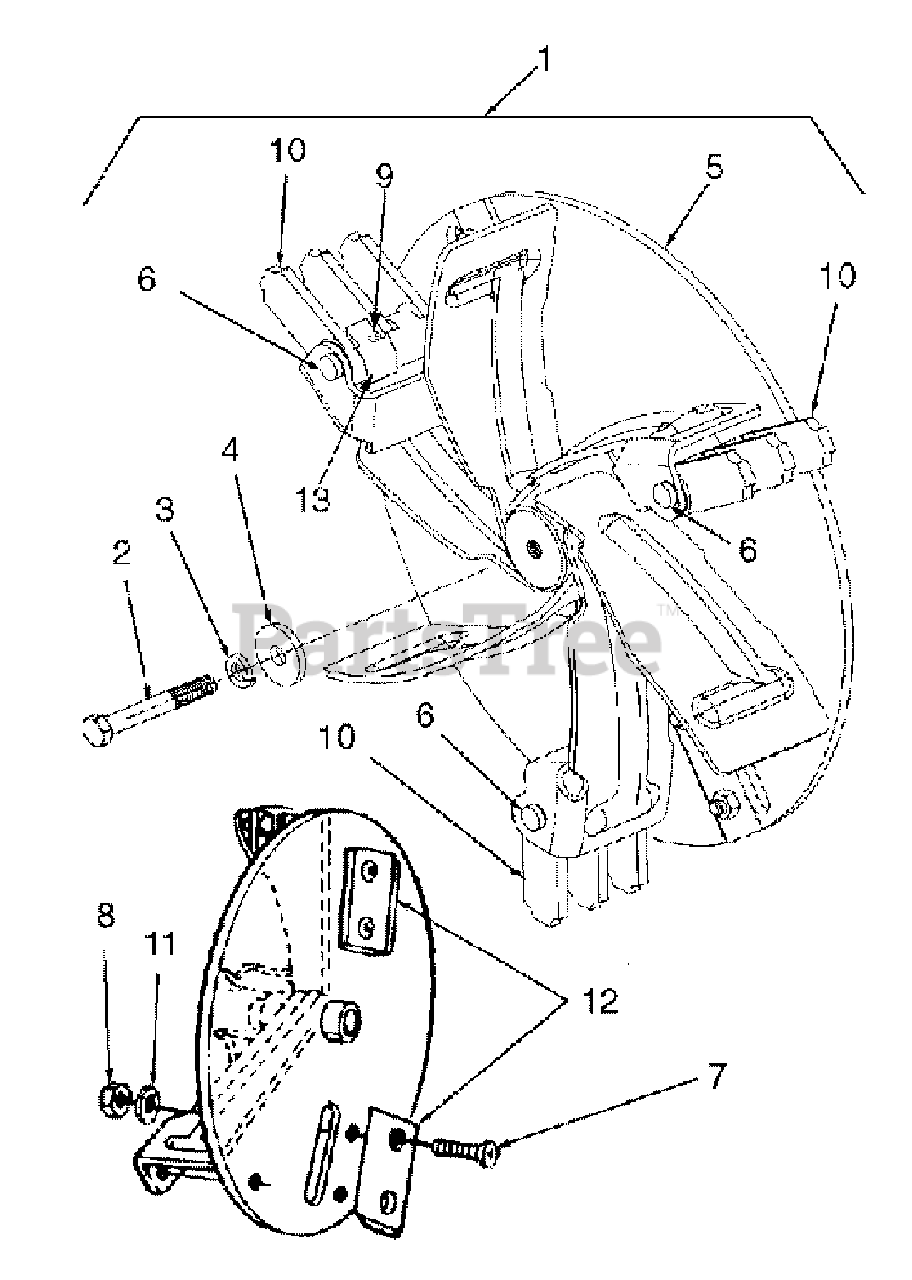

Impeller Assembly Parts Diagram

  • Title

1

MTD 981-04091

Impeller Ass'y, Complete

Note: (Includes Ref. Nos. 5 thru 13)

$496.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$7.49

$

Usually ships in 3-6 days

0

3

MTD 936-0217

Washer, Lock, 3/8 Heavy Duty 1
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

4

MTD 736-0247

Washer, Flat, .406 x 1-1/4 HD1

$8.99

$

In Stock, Qty 20+

0

5

MTD 981-04091

Impeller Assembly

$496.99

$

Usually ships in 3-6 days

0

6

MTD 911-0833B

Pin, Clevis

$11.99

$

In Stock, only 3 left!

0

7

MTD 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$3.99

$

In Stock, Qty 20+

0

8

MTD 912-0411

Nut, Hex Insert Lock, 5/16-24
(Superseded to 712-0411)

$

$

Not available

9

MTD 715-0166

Pin, Spirol, 5/32 x 1.125

$6.49

$

In Stock, Qty 20+

0

10

MTD 719-0329

Blade, Flail

$31.99

$

In Stock, Qty 20+

0

11

MTD 936-0119

Washer, Lock, 5/16

$4.49

$

In Stock, Qty 20+

0

12

MTD 942-0544B

Blade, Chipper

$89.99

$

In Stock, Qty 14

0

13

MTD 781-0735

Pin Retaining Clip

$3.99

$

In Stock, Qty 20+

0
