YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2002) Drive Parts Diagram

Yard Boss Chipper Shredder Vacuum

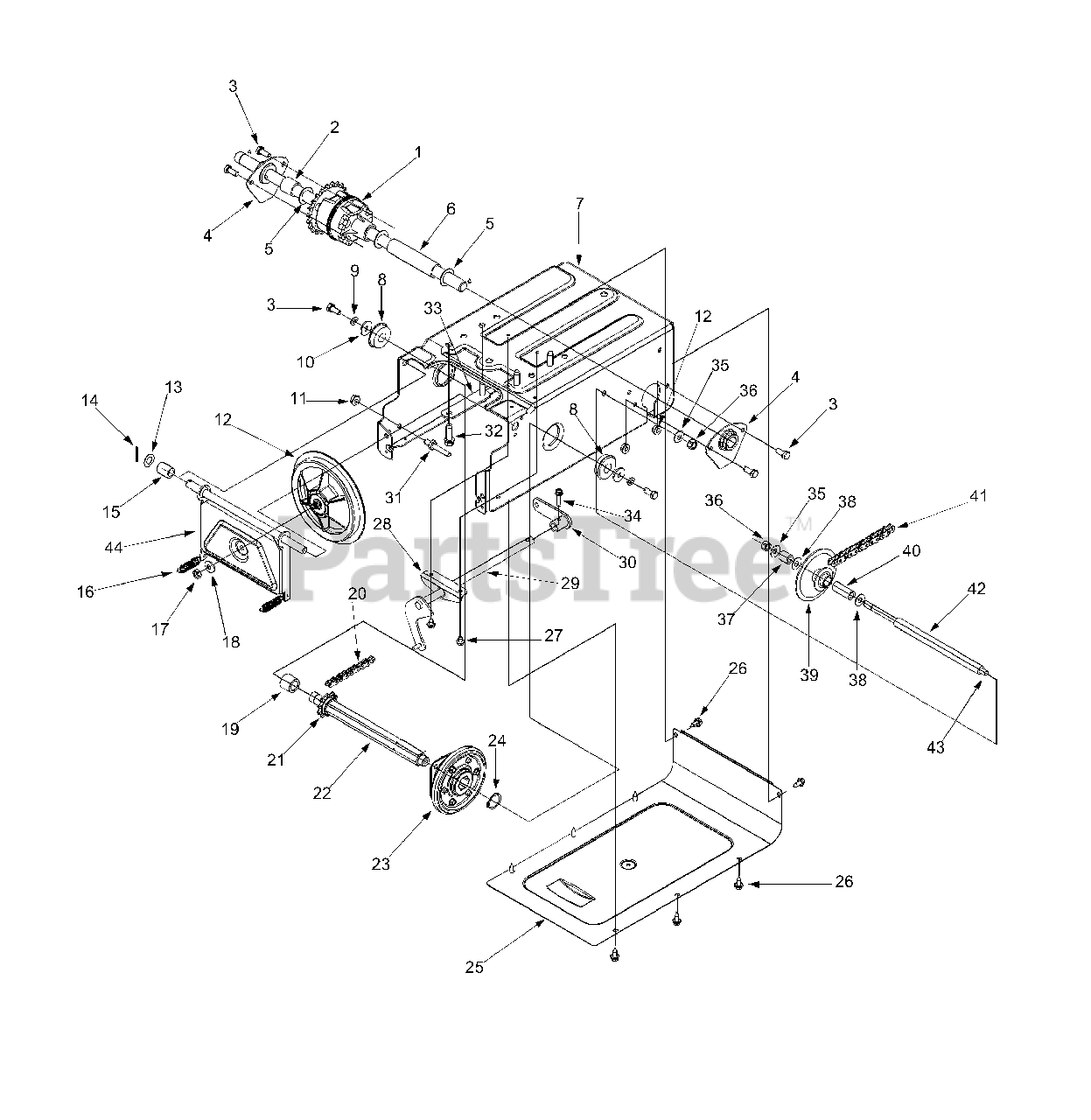

Drive Parts Diagram

  • Title

1

MTD 618-0168

Transmission Assembly

Note: NLA

$

$

Not available

2

MTD 750-0981

Spacer .782 ID x 1.0 OD

$

$

Not available

3

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 681-0058

Axle Bracket Assembly

$

$

Not available

5

MTD 936-0287

Flat Washer .793 ID x 1.24 OD
(Superseded to 736-0287)

$

$

Not available

6

MTD 750-0980

Spacer .782 ID x 1.0 OD

Note: NLA

$

$

Not available

7

MTD 681-0081

Frame Assembly

Note: NLA

Variations

MTD 681-0081-0483

No Longer Available FRAME ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0081-0498

Frame Assembly - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0081-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0081-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 681-0081-0662

Frame Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0081-0716

No Longer Available FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

MTD 941-0563

Ball Bearing

$36.99

$

In Stock, Qty 20+

0

9

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-3089

Flat Washer .312 ID x .934 OD

$

$

Not available

11

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

Usually ships in 3-6 days

0

12

MTD 956-0012A

Friction Disc Assembly

$125.99

$

In Stock, Qty 9

0

13

MTD 936-0160

Flat Washer .53 ID x .93 OD

$4.49

$

In Stock, Qty 17

0

14

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 20+

0

15

MTD 748-0382

Spacer .508 ID x .75 OD

Note: NLA

$

$

Not available

16

MTD 932-0209

Extension Spring .48 OD x 2.03

$7.99

$

In Stock, Qty 11

0

17

MTD 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0105

Spring Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

19

MTD 750-0998

Spacer .675 ID x 1.0 OD

$

$

Not available

20

MTD 713-0284

Chain #41 36 Links

$24.99

$

Usually ships in 3-6 days

0

21

MTD 713-0413

Sprocket 10T #41

$12.99

$

Usually ships in 3-6 days

0

22

MTD 711-1073

Hex Shaft .875

Note: NLA

$

$

Not available

23

MTD 984-0042C

Friction Wheel Assembly

$138.99

$

In Stock, only 4 left!

0

24

MTD 916-0102

Snap Ring 1.0 Dia.
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

25

MTD 781-0612A

Bottom Frame Cover

Note: NLA

Variations

MTD 781-0612A-0483

No Longer Available COVER-FRAM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0612A-0498

Cover, Frame Bottom - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0612A-0650

No Longer Available COVER-FRAM - RED METALLIC (0650)

$

$

Not available

MTD 781-0612A-0662

Cover, Frame Bottom - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0612A-0716

No Longer Available COVER-FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

26

MTD 710-0896

Hex Washer Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0653

Hex Washer Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

28

MTD 784-5590

Frame Shift Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

29

MTD 681-0082

Shift Shaft Assembly

$

$

Not available

30

MTD 681-0072

Shift Assembly

Note: NLA

Variations

MTD 681-0072-0637

No Longer Available ARM-SHIFT- - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 738-0908

Idler Bolt 5/16-18 x 2.25

$

$

Not available

32

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, Qty 7

0

33

MTD 781-0638A

Frame Reinforcement Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0638A-0483

No Longer Available PLATE-REIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0638A-0637

PLATE-REINFORCEMEN - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

35

MTD 736-0105

Spring Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

37

MTD 750-0979

Spacer .407 ID x .625 OD

Note: NLA

$

$

Not available

38

MTD 936-0267

Flat Washer .375 ID x .870 OD
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

39

MTD 713-0330

Sprocket Assembly 9T & 22T

Note: NLA

$

$

Not available

40

MTD 750-0351

Sleeve .380 ID x .623 OD x 1.5

$

$

Not available

41

MTD 713-0374

Chain #420 36L

$25.99

$

Usually ships in 3-6 days

0

42

MTD 750-0978

Spacer .407 ID x .625 OD x 7.86

Note: NLA

$

$

Not available

43

MTD 711-1028

Jack Shaft .375 x 11.40

Note: NLA

$

$

Not available

44

MTD 681-0055-0637

Friction Wheel Support Bracket

$

$

Not available
