YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2002) Handle, Nozzle & Bag Parts Diagram

Yard Boss Chipper Shredder Vacuum

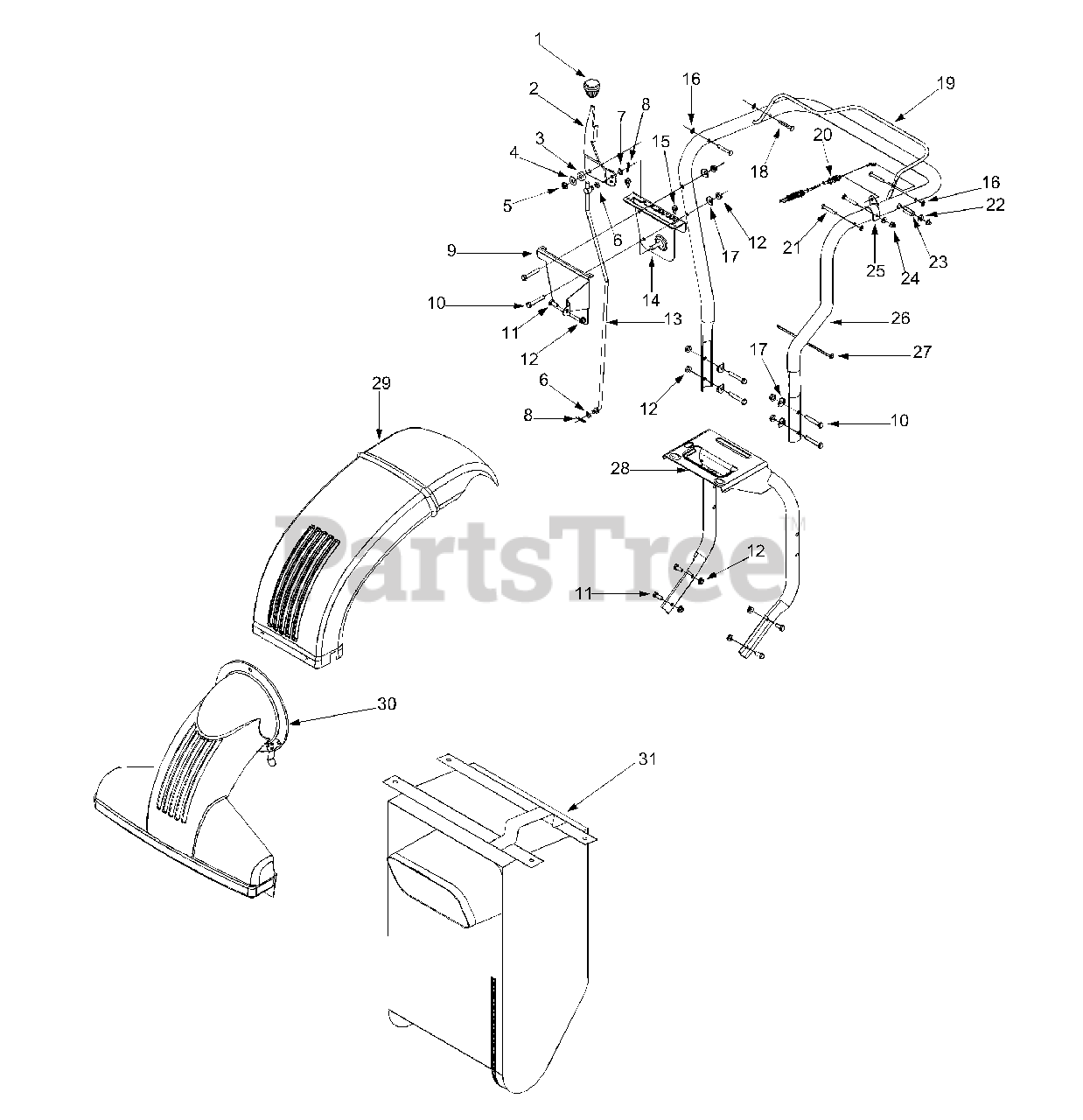

Handle, Nozzle & Bag Parts Diagram

  • Title

1

MTD 920-0232

Shift Knob

$10.99

$

In Stock, only 4 left!

0

2

MTD 784-0297A

Shift Lever

Note: NLA

Variations

MTD 784-0297A-0483

No Longer Available HANDLE-SHI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0297A-0498

No Longer Available HANDLE-SHI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0297A-0662

No Longer Available HANDLE-SHI - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0297A-0716

No Longer Available HANDLE-SHI - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

MTD 735-0126A

Rubber Washer

$

$

Not available

4

MTD 936-0300

Flat Washer
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

5

MTD 912-0116

Lock Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

6

MTD 736-0413

Spring Washer

$6.99

$

In Stock, only 3 left!

0

7

MTD 936-0117

Flat Washer .375 ID x .620 OD

$7.49

$

In Stock, only 1 left!

0

8

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

9

MTD 781-0626

Shift Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0626-0483

No Longer Available COVER-SHIF - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0626-0637

No Longer Available COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

MTD 781-0626-0650

No Longer Available COVER-SHIF - RED METALLIC (0650)

$

$

Not available

MTD 781-0626-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0626-0716

No Longer Available COVER-SHIF - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

MTD 710-3103

Hex Cap Screw 5/16-18 x 2.0

$4.49

$

In Stock, Qty 13

0

11

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 747-0626

Shift Rod

Note: NLA

$

$

Not available

14

MTD 681-0076

Shift Bracket Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0076-0483

No Longer Available BRKT-SHIFT- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0076-0498

No Longer Available BRKT-SHIFT- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0076-0637

Bracket Assembly, Shift - POWDER BLACK (0637)

$

$

Not available

MTD 681-0076-0638

No Longer Available BRKT-SHIFT- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0076-0650

No Longer Available BRKT-SHIFT- - RED METALLIC (0650)

$

$

Not available

MTD 681-0076-0662

No Longer Available BRKT-SHIFT- - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0076-0689

No Longer Available BRKT-SHIFT- - POLO GREEN (0689)

$

$

Not available

MTD 681-0076-0716

No Longer Available BRKT-SHIFT- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

15

MTD 710-0896

Hex Washer Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

16

MTD 1539-019

Push Nut .250

$4.49

$

In Stock, Qty 16

0

17

MTD 936-0451

Shoulder Washer .320 ID x .93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 20+

0

18

MTD 911-0737

Pin .250 x 1.75

$4.99

$

In Stock, Qty 11

0

19

MTD 747-1133

Drive Clutch Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 747-1133-0498

No Longer Available ROD CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 747-1133-0662

ROD CLUTCH CONTROL - OYSTER GRAY (0662)

$

$

Not available

MTD 747-1133-0716

No Longer Available ROD CLUTCH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 746-1080

Clutch Cable

$

$

Not available

21

MTD 710-0136

Hex Cap Screw 1/4-20 x 1.75

$3.99

$

In Stock, only 1 left!

0

22

MTD 936-0275

Flat Washer 5/16
(Superseded to 736-0275)

$

$

Not available

23

MTD 750-1185

Spacer .345 ID x .51 OD

Note: NLA

$

$

Not available

24

MTD 912-0442

Lock Nut 1/4-20
(Superseded to 712-0442)

$

$

Not available

25

MTD 781-0157

Cable Mounting Bracket

Note: NLA

Variations

MTD 781-0157-0637

No Longer Available BRACKET CA - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 749-1083

Upper Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1083-0498

HANDLE UPPER CSV - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-1083-0650

No Longer Available HANDLE UPP - RED METALLIC (0650)

$

$

Not available

MTD 749-1083-0662

Handle Assembly, Upper - OYSTER GRAY (0662)

$

$

Not available

MTD 749-1083-0716

No Longer Available HANDLE UPP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

28

MTD 649-0012

Lower Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 649-0012-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 649-0012-0637

No Longer Available HANDLE-ASM - POWDER BLACK (0637)

$

$

Not available

MTD 649-0012-0638

No Longer Available HANDLE-ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0012-0650

No Longer Available HANDLE-ASM - RED METALLIC (0650)

$

$

Not available

MTD 649-0012-0662

Handle Assembly, Lower - OYSTER GRAY (0662)

$

$

Not available

MTD 649-0012-0716

HANDLE-ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

MTD 731-1573

Discharge Chute

Note: NLA

$

$

Not available

30

MTD 631-0029

Nozzle Assembly

$

$

Not available

31

MTD 764-0472

Vacuum Bag

Note: NLA

$

$

Not available
