YCA 484-E - Yard King 19" Walk-Behind Mower (2014) Engine & Blade Group (YCA484) Parts Diagram

19" Walk-Behind Mower

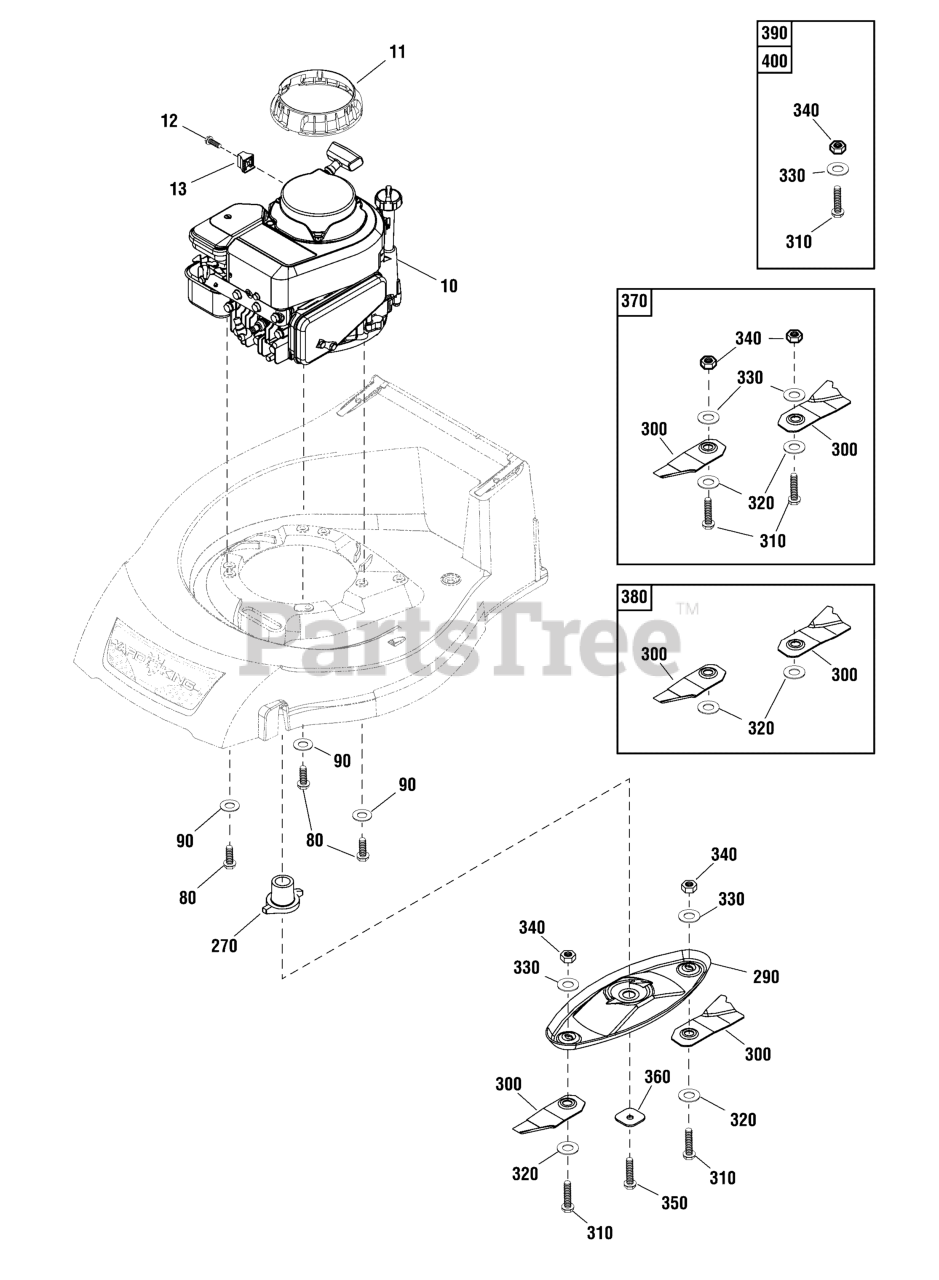

Engine & Blade Group (YCA484) Parts Diagram

  • Title

10

Murray 09T502-3141-H1

** Engine, Briggs & Stratton 450 Series

Note: (Engine Style may vary from illustration)

$

$

Currently unavailable

11

Murray 281705

FINGER GUARD, 450 Series, Black
(Superseded to 691348)

$26.99

$

In Stock, only 1 left!

0

12

Murray HA20435D

BOLT

$

$

Currently unavailable

13

Murray EE14444A

SPACER, Throttle Mount

$

$

Currently unavailable

80

Murray HA21320D

BOLT, Taptite, HW, 3/8UNC x 30

$

$

Currently unavailable

90

Murray HA22277D

WASHER, Engine Mounting

$

$

Currently unavailable

270

Murray EE14417A

SLEEVE, Locking, 4 Stroke

$

$

Currently unavailable

290

Murray CA09471GW

BLADE DISC, Oval

$

$

Currently unavailable

300

BLADE

$

$

Not available

310

BOLT, Blade

$

$

Not available

320

Murray CA09347A

WASHER, Blade Tension

$

$

Currently unavailable

330

Murray HA25276B

WASHER, Belleville, Blued

$

$

Currently unavailable

340

Murray CA09241D

NUT, Nylock, 3/8 UNC

$

$

Currently unavailable

350

Murray EE14484B

BOLT, Blade Disc

$

$

Currently unavailable

360

Murray EN73054B

WASHER, Blade Disc

$

$

Currently unavailable

370

Murray CA09470B

KIT, Blade & Bolt, Bulk Pack (1 Pack)

Note: (Includes Ref. Nos. 300, 310, 320, 330 & 340)

$

$

Currently unavailable

380

Murray CA09470P

KIT, Blade & Bolt, Bulk Pack (40 Pairs)

Note: (Includes Ref. Nos. 300, 310, 320, 330 & 340)

$

$

Currently unavailable

390

Murray CA09277S

KIT, Hardware, Bolt, Washer, Nut (1 Pack)

Note: (Includes Ref. Nos. 310, 330 & 340)

$

$

Currently unavailable

400

Murray CA09277P

KIT, Hardware, Blade Mounting , Bulk Pack (50 Pairs)

Note: (Includes Ref. Nos. 310, 330 & 340)

$

$

Currently unavailable
