YCS 464XE-E - Yard King 18" Walk-Behind Mower (2013) Deck & Catcher Group (YCS464XE) Parts Diagram

18" Walk-Behind Mower

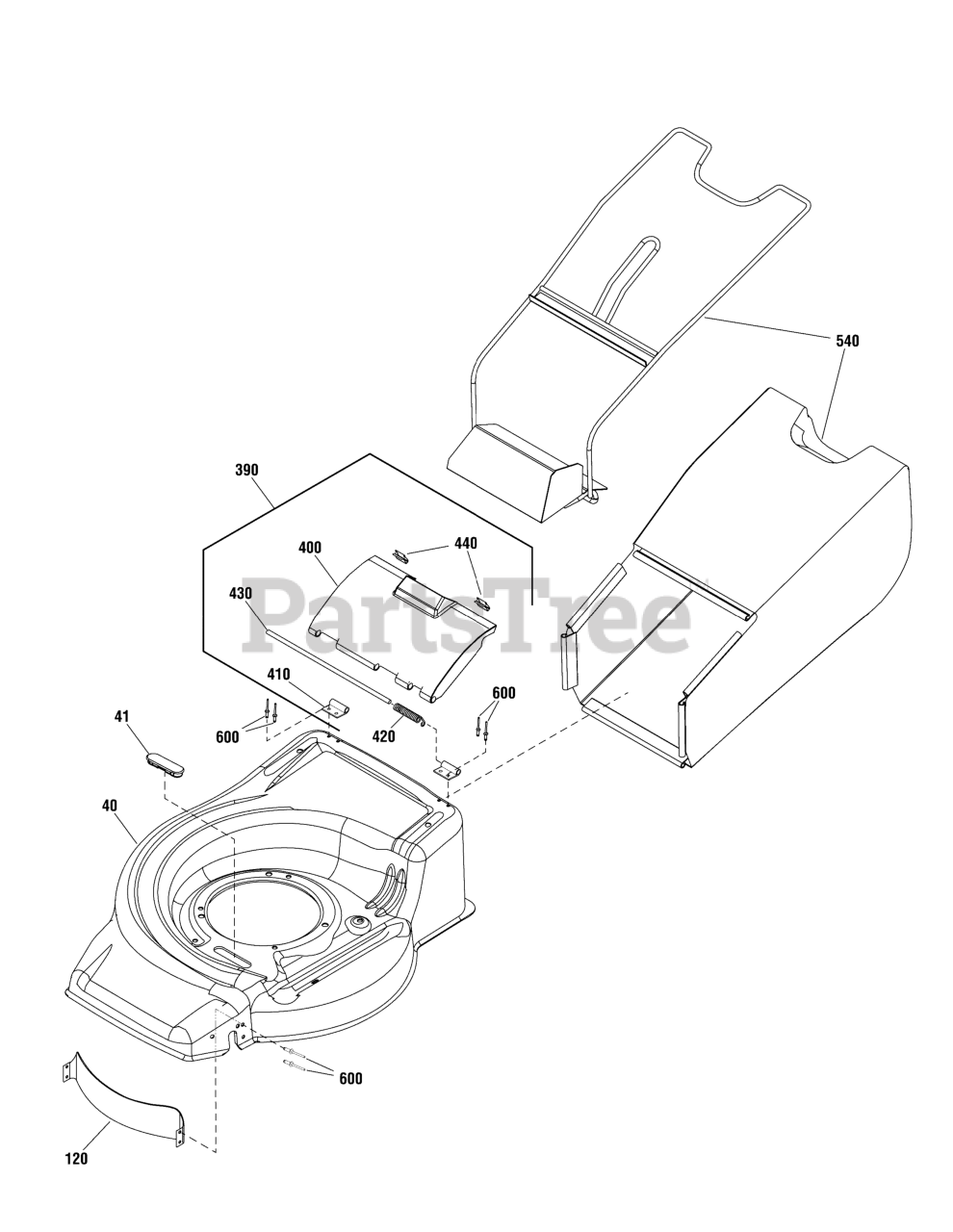

Deck & Catcher Group (YCS464XE) Parts Diagram

  • Title

40

* BASEPLATE, Flame Red

Note: (May not available in Flame Red. Order CH85432M)

$

$

Not available

40

Murray CH85432M

BASEPLATE, Brunswick Green

$

$

Currently unavailable

41

Murray CH85985AZ

PLUG, Muffler Slot

Note: (Required with Ref. 40)

$

$

Currently unavailable

120

Murray CH85467A

FRONT SKIRT

$

$

Currently unavailable

390

Murray CH86225A

REAR FLAP ASSEMBLY

Note: (Includes Ref. Nos. 400, 410, 420, 430 & 440)

$

$

Currently unavailable

400

FLAP, Rear

$

$

Not available

410

BRACKET, Flap

$

$

Not available

420

Murray CH85865A

SPRING, Flap

$

$

Currently unavailable

430

Murray CH85967D

PIVOT ROD

$

$

Currently unavailable

440

Murray HA25687D

U-CLIP

$

$

Currently unavailable

540

Murray GC11816A

CATCHER ASSEMBLY

$

$

Currently unavailable

600

RIVET

Note: (Not a serviceable part)

$

$

Not available
