YCS 464XE-E - Yard King 18" Walk-Behind Mower (2013) Handles & Controls Group (YCS464XE) Parts Diagram

18" Walk-Behind Mower

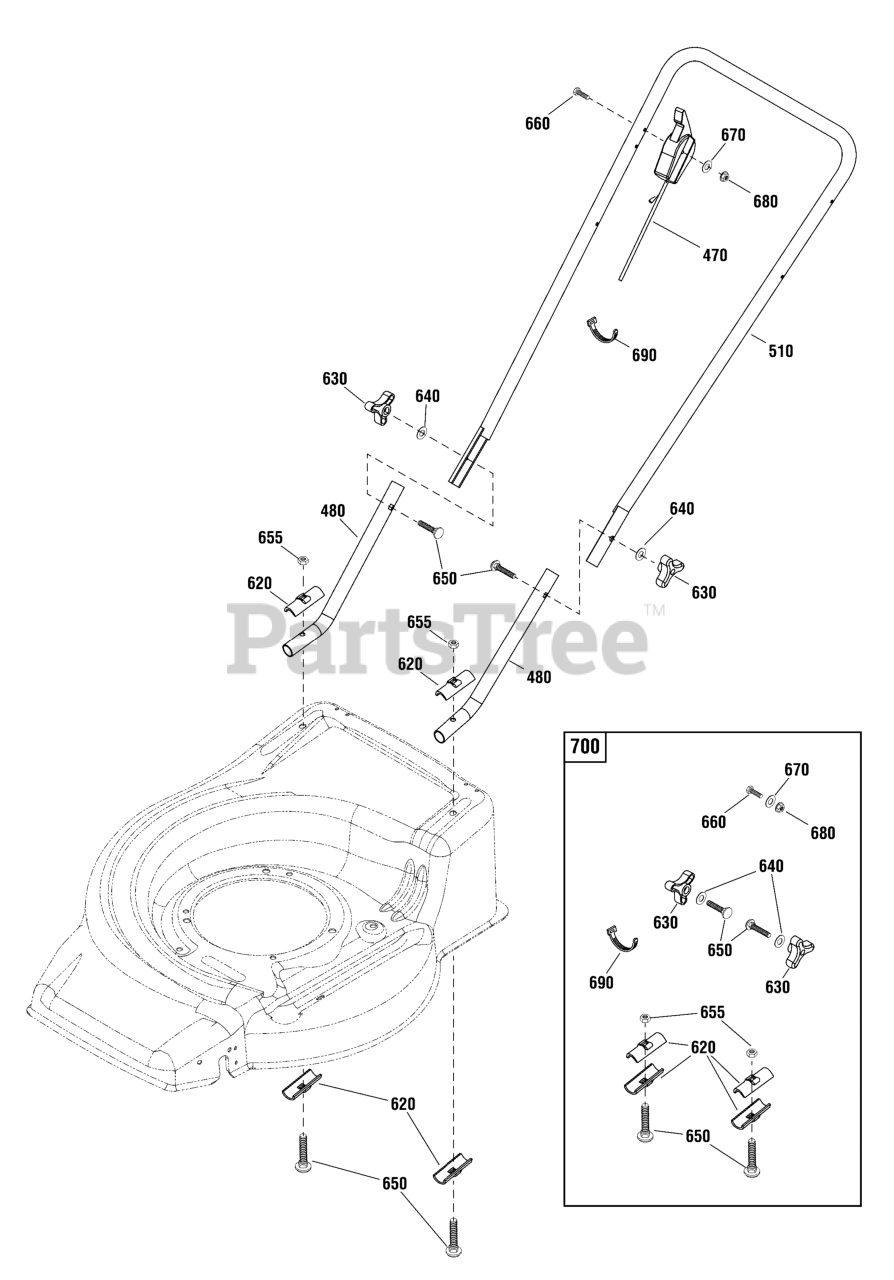

Handles & Controls Group (YCS464XE) Parts Diagram

  • Title

470

Murray TC04426AZ

THROTTLE CONTROL

$

$

Currently unavailable

480

Murray CH84871GT

HANDLE, Lower

$

$

Currently unavailable

510

Murray CH85932GT

HANDLE, Upper

$

$

Currently unavailable

620

* SADDLE PLATE

$

$

Not available

630

* KNOB, Handle

$

$

Not available

640

* WASHER, M8

$

$

Not available

650

* BOLT, Carriage, M8 x 45

$

$

Not available

655

* NUT, Nylock, M8

$

$

Not available

660

* BOLT, Throttle Control

$

$

Not available

670

* WASHER, Throttle Control

$

$

Not available

680

* NUT, Throttle Control

$

$

Not available

690

* CABLE TIE

$

$

Not available

700

Murray CH87223A

KIT, Hardware, Handle

Note: (Includes Ref. Nos 620, 630, 640, 650, 665, 660, 670 & 680)

$

$

Currently unavailable
