YCS 466-AA - Yard King 18" Walk-Behind Mower (2012) Mower Deck Group (YCS466) Parts Diagram

18" Walk-Behind Mower

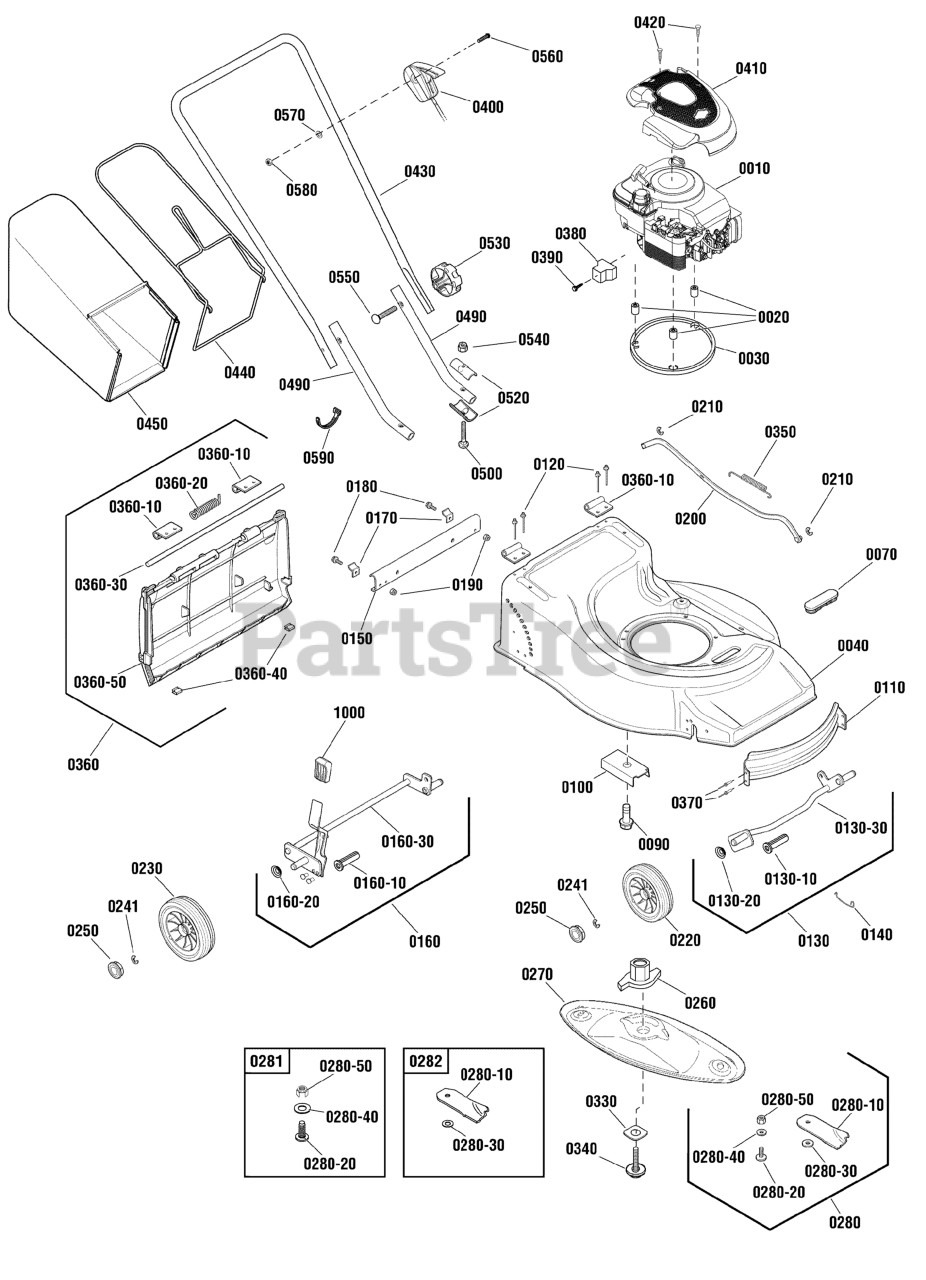

Mower Deck Group (YCS466) Parts Diagram

  • Title

0010

Murray 122T02-0193-B1

* ENGINE, Briggs & Stratton 625 Series, Q50

Note: (Engine Model: 122T02-0193-B1)

$

$

Currently unavailable

0010

Murray 122T02-5193-H1

* ENGINE, Briggs & Stratton 625 Series, Q50

Note: (Engine Model: 122T02-5193-H1)

$

$

Currently unavailable

0020

Murray EN73043AZ

SPACER, Tube, 20mm

$

$

Currently unavailable

0030

Murray EN73041AZ

SPACER RING, Plastic, Engine

$

$

Currently unavailable

0040

Murray CH85432N

BASEPLATE, Red

$

$

Currently unavailable

0070

Murray CH85985AZ

PLUG

$

$

Currently unavailable

0090

Murray HA21318D

SCREW, Taptite, 3/8 x 50

$

$

Currently unavailable

0100

Murray VV17130D

PLATE, Saddle

$

$

Currently unavailable

0110

Murray CH85467A

SKIRT, Inner

$

$

Currently unavailable

0120

Murray HA25167A

RIVET, Flap Bracket

$

$

Currently unavailable

0130

Murray CH85955DZ

AXLE, Front

Note: (Includes Ref. Nos. 0130-10, 0130-20 & 0130-30)

$

$

Currently unavailable

0130-10

Murray CH82394A

BUSHING, Axle, Front

$

$

Currently unavailable

0130-20

Murray CH81445A

DUST SEAL

$

$

Currently unavailable

0130-30

AXLE, Front

Note: (Not a serviceable part. Order Ref. No. 0130)

$

$

Not available

0140

Murray CH84899B

CLIP, Front Axle

$

$

Currently unavailable

0150

Murray CH84860A

SAFETY SKIRT

$

$

Currently unavailable

0160

Murray CH85956DZ

AXLE, Rear, Complete

Note: (Includes Ref. Nos. 0160-10, 0160-20 & 0160-30)

$

$

Currently unavailable

0160-10

Murray CH84861A

BUSHING, Axle, Rear

$

$

Currently unavailable

0160-20

Murray CH81445A

DUST SEAL

$

$

Currently unavailable

0160-30

AXLE, Rear

Note: (Not a serviceable part. Order Ref. No. 0160)

$

$

Not available

0170

Murray CH84863D

RETAINER, Axle

$

$

Currently unavailable

0180

Murray HA21321D

SCREW, Serrated, 1/4-20 x 5/8

$

$

Currently unavailable

0190

Murray HA24844D

NUT, Axle Retainer, 1/4-20

$

$

Currently unavailable

0200

Murray CH86083DZ

LINK, Connecting

$

$

Currently unavailable

0210

Murray HA25131D

CIRCLIP, Connecting Link

$

$

Currently unavailable

0220

Murray CH87081G

WHEEL, Easy Track 150, Front

Note: (6 Inch)

$

$

Currently unavailable

0230

Murray CH87082G

WHEEL, Easy Track 175, Rear

Note: (7 Inch)

$

$

Currently unavailable

0241

Murray CH86298A

CIRCLIP

$

$

Currently unavailable

0250

Murray CH83765AZ

HUB CAP, Small

$

$

Currently unavailable

0260

Murray EE14417A

SLEEVE, 4 Stroke Locking Style

$

$

Currently unavailable

0270

Murray CA09495GZ

BLADE DISC, Oval

$

$

Currently unavailable

0280

Murray CA09506S

KIT, Blade

Note: (Includes Ref. Nox. 0280-10, 0280-20, 0280-30, 0280-40, 0280-50)

$

$

Currently unavailable

0280-10

BLADE, Low Profile

Note: (Not a serviceable part. Order Ref. No. 0280)

$

$

Not available

0280-20

BOLT, Blade

Note: (Not a serviceable part. Order Ref. No. 0280)

$

$

Not available

0280-30

Murray CA09347A

WASHER, Blade Tension

Note: (Not a serviceable part. Order Ref. No. 0280)

$

$

Currently unavailable

0280-40

WASHER, Belleville

Note: (Not a serviceable part. Order Ref. No. 0280)

$

$

Not available

0280-50

NUT, Nylock, 3/8-16

Note: (Not a serviceable part. Order Ref. No. 0280)

$

$

Not available

0281

Murray CA09277S

KIT, Hardware, Bolt, Washer, Nut (1 Pack)

Note: (Includes Ref. Nos. 0280-20, 0280-40 & 0280-50)

$

$

Currently unavailable

--

Murray CA09277P

KIT, Hardware, Bolt, Washer, Nut, Bulk (50 Pairs)

Note: (Includes Ref. Nos. 0280-20, 0280-40 & 0280-50)

$

$

Currently unavailable

0282

Murray CA09306P

BLADE SET, Bulk (50 Pairs)

Note: (Includes Ref. Nos. 0280-10 & 0280-30)

$

$

Currently unavailable

0330

Murray EN73054B

WASHER, Blade Disk, 4 Stroke

$

$

Currently unavailable

0340

Murray EE14484B

BOLT, Blade Disk, 4 Stroke

$

$

Currently unavailable

0350

Murray CH85943A

SPRING, Connecting Link

$

$

Currently unavailable

0360

Murray CH86225A

KIT, Rear Flap Brackets, Set of 2

Note: (Includes Ref. Nos. 0360-10, 0360-20, 0360-30, 0360-40 & 0360-50)

$

$

Currently unavailable

0360-10

Murray CH85958D

BRACKET, Rear Flap

$

$

Currently unavailable

0360-20

Murray CH85865A

SPRING, Rear Flap

$

$

Currently unavailable

0360-30

Murray CH85967D

PIVOT ROD, Rear Flap

$

$

Currently unavailable

0360-40

Murray HA25687D

U-CLIP, Rear Flap

$

$

Currently unavailable

0360-50

REAR FLAP

Note: (Not a serviceable part. Order Ref. No. 0360)

$

$

Not available

0370

Murray HA25167A

RIVET, Skirt

$

$

Currently unavailable

0400

Murray TC04456AZ

THROTTLE CONTROL

$

$

Currently unavailable

0410

SHROUD, Engine

Note: (B&S # 791975)

$

$

Not available

0420

SCREW, Hi-Lo, No. 8 x 7-8

Note: (B&S # 95050)

$

$

Not available

0430

Murray CH85932GT

HANDLE, Upper

$

$

Currently unavailable

0440

Murray GC11813D

FRAME, Bag

$

$

Currently unavailable

0450

Murray GC11812A

BAG

$

$

Currently unavailable

0490

Murray CH84871GT

HANDLE, Lower, Classic

$

$

Currently unavailable

0500

Murray HA20310D

BOLT, Handle Knob, 5/16-18 x 1-3/4

$

$

Currently unavailable

0520

Murray CH80854GZ

SADDLE PLATE

$

$

Currently unavailable

0530

Murray CH85737A

KNOB, Handle

$

$

Currently unavailable

0540

Murray HA24845D

NUT, 5/16-18

$

$

Currently unavailable

0550

Murray HA20310D

BOLT, Saddle, 5/16-18 x 1-3/4

$

$

Currently unavailable

0560

Murray HA20407D

SCREW, Pan Head, 10-24 x 1-3/4

$

$

Currently unavailable

0570

Murray HA22274D

WASHER, 3/16 ID x 5/8 OD

$

$

Currently unavailable

0580

Murray HA24847D

HARDWARE, Nut & S-Proof Washer, 10/24

$

$

Currently unavailable

0590

Murray HA25655A

CABLE TIE

$

$

Currently unavailable

0600

Murray CH82515D

HANDLE SPANNER

Note: (Not Illustrated)

$

$

Currently unavailable

1000

Murray CH81754A

KNOB, Height Adjust

$

$

Currently unavailable
