YE 16H44 C - Electrolux/AYP Lawn Tractor 16HP 44" TRACTOR-TRANSAXLE/WHEEL Parts Diagram

Lawn Tractor

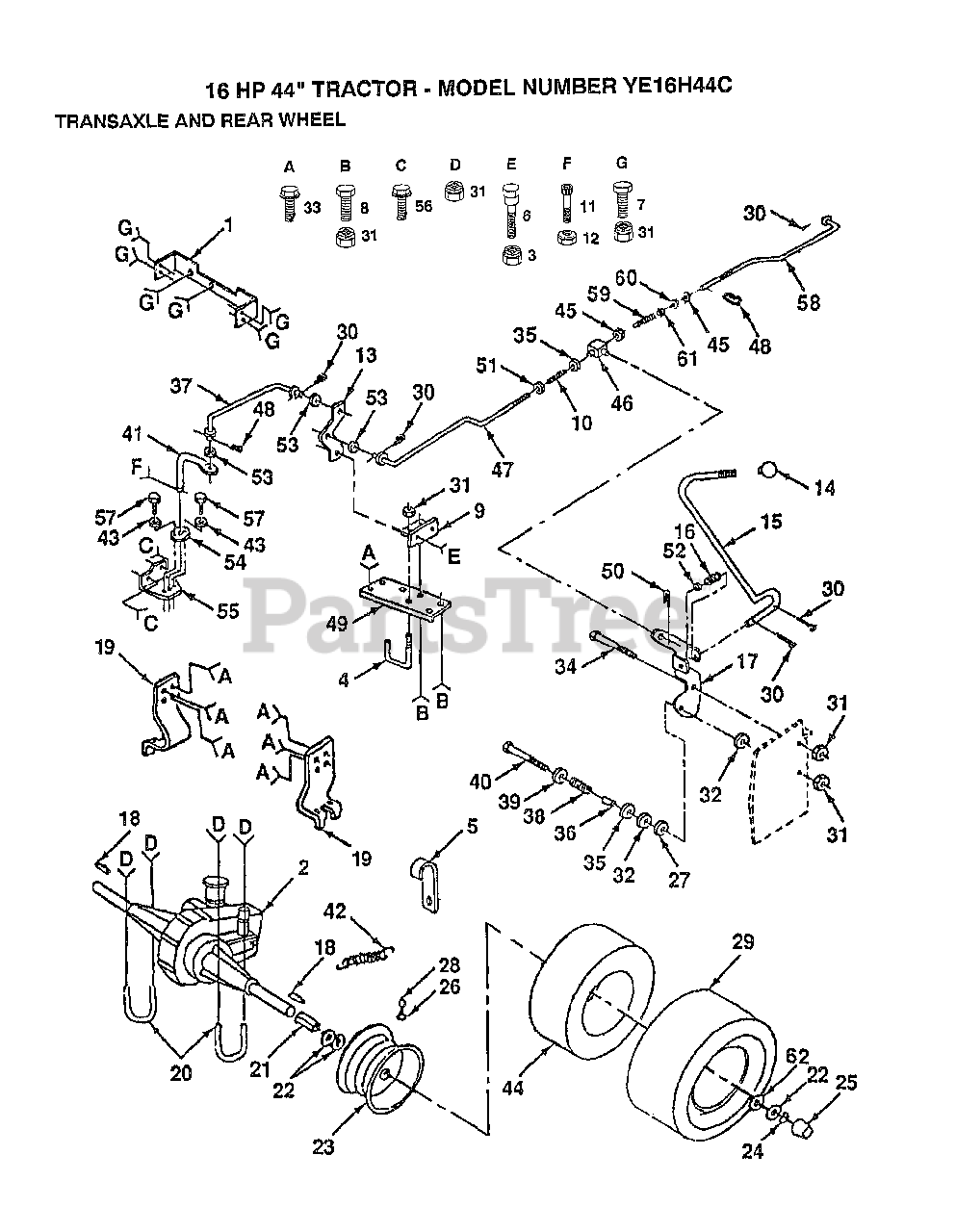

16HP 44" TRACTOR-TRANSAXLE/WHEEL Parts Diagram

  • Title
1

Electrolux/AYP 121187X

PLATE TRANS SUPT
(Superseded to 532121187)

$

$

Not available

2

Electrolux/AYP 121431X

TRANSAXLE.AGRIFAB
(Superseded to 532121431)

$

$

Not available

3

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 121190X

KEEPER
(Superseded to 532121190)

$

$

Not available

5

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

6

Electrolux/AYP 100536K

SHOULDER BOLT LT
(Superseded to 532100536)

$

$

Not available

7

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 121206X

BRKT BELLCRANK
(Superseded to 532121206)

$

$

Not available

10

Electrolux/AYP 102670X

SPRING GTV
(Superseded to 532102670)

$

$

Not available

11

Electrolux/AYP 74561014

SCREW
(Superseded to 874561014)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121204X

BELLCRANK
(Superseded to 532121204)

$

$

Not available

14

Electrolux/AYP 121274X

KNOB.DUCKHEAD.1/2
(Superseded to 532121274)

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110845X

ROD.YTH
(Superseded to 532110845)

$8.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121631X

SPRING TORSION
(Superseded to 532121631)

$

$

Not available

17

Electrolux/AYP 108196X

BRKT CONTROL HYT
(Superseded to 532108196)

$

$

Not available

18

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

19

Electrolux/AYP 126649X

BRKT TRANSAXLE

$

$

Not available

20

Electrolux/AYP 121189X

U BOLT
(Superseded to 532121189)

$

$

Not available

21

Electrolux/AYP 121199X

SPACER SPLIT
(Superseded to 532121199)

$

$

Not available

22

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 106108X361

SUB= 106108X417

$

$

Not available

24

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 108972X

WASHER HYT
(Superseded to 532108972)

$

$

Not available

28

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

29

Electrolux/AYP 122082X

SUB= 918122082X
(Superseded to 532125833)

$194.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 108200X

WASHER FRIC HYT
(Superseded to 532108200)

$

$

Not available

33

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 108518X

BOLT HYT
(Superseded to 532108518)

$

$

Not available

35

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108201X

SPACER HYT
(Superseded to 532108201)

$

$

Not available

37

Electrolux/AYP 121202X

LINK CONTROL
(Superseded to 532121202)

$

$

Not available

38

Electrolux/AYP 108844X

SPRING HYT
(Superseded to 532108844)

$

$

Not available

39

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 74760648

BOLT - HEX 3/8 - 16 X 3
(Superseded to 583614301)

$

$

Not available

41

Electrolux/AYP 121209X

ARM ASM PUMP
(Superseded to 532121209)

$

$

Not available

42

$

$

Not available

43

Electrolux/AYP 19070816

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 108212X

TRUNION HYT
(Superseded to 532108212)

$18.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 121750X

ROD ADJ CONTROL
(Superseded to 532121750)

$47.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

49

Electrolux/AYP 123186X

BRACKET
(Superseded to 532123186)

$

$

Not available

50

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

51

Electrolux/AYP 19131212

WASHER T
(Superseded to 819131212)

$

$

Not available

52

Electrolux/AYP 19151516

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 110739X

WASHER T
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 121217X

GUIDE CONTROL
(Superseded to 532121217)

$

$

Not available

55

Electrolux/AYP 121216X

BRKT
(Superseded to 532121216)

$

$

Not available

56

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 17021010

SUB= 817021010

$

$

Not available

58

Electrolux/AYP 132654

SUB= 532132654

$

$

Not available

59

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

60

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

61

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

62

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0
