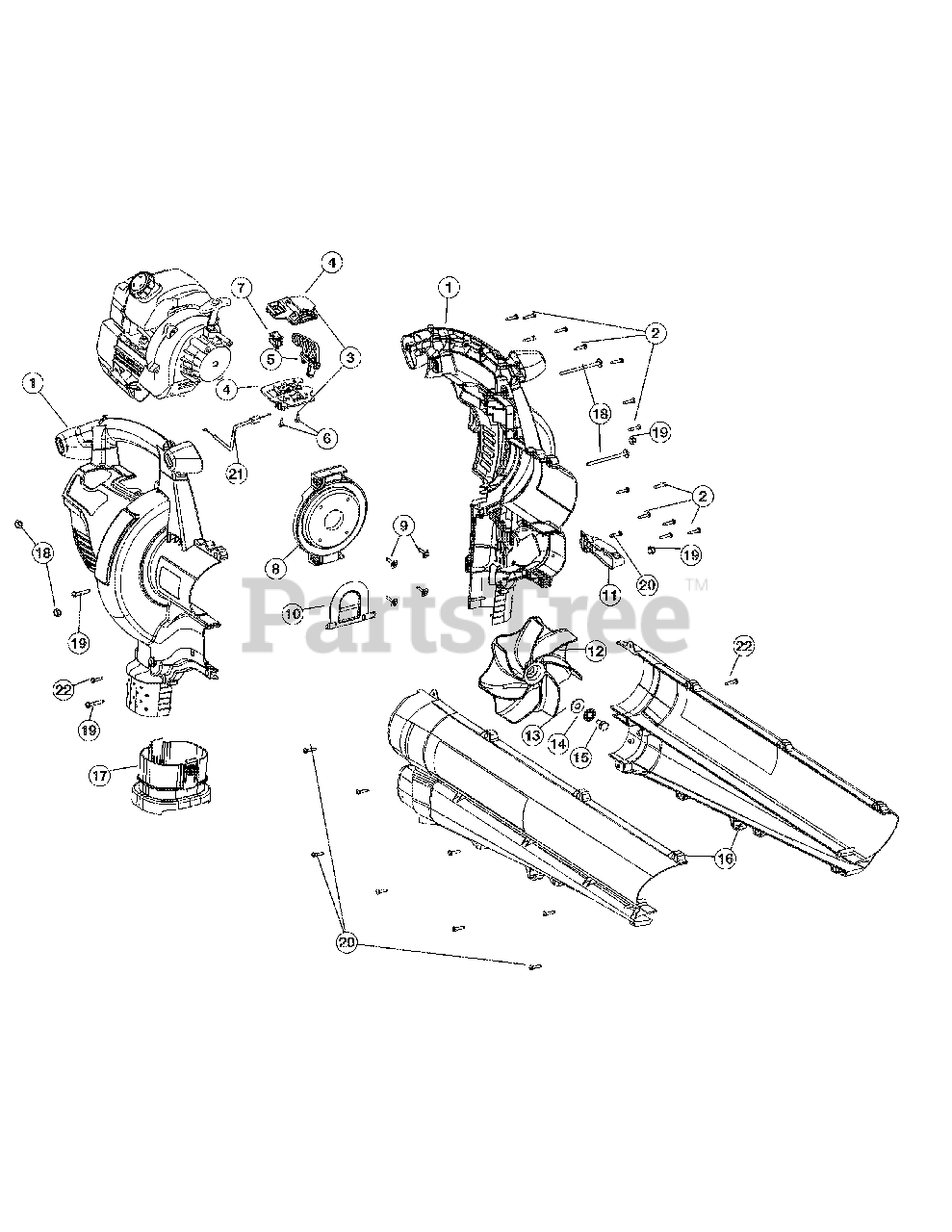

YGBV (41ASGBPG900) - Yard Machines Blower Vacuum General Assembly Parts Diagram

Blower Vacuum

General Assembly Parts Diagram

  • Title

1

MTD 753-05061

Engine Cover Assembly

Note: (Incl. Ref No. 2)

$

$

Not available

2

MTD 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 753-05013A

Throttle Control Assembly

Note: (Incl. Ref No. 4-6)

$

$

Not available

4

MTD 753-05013A

Throttle Control Plates

Note: (Incl. Ref No. 6)

$

$

Not available

5

MTD 791-00048

Throttle Control Lever

$11.99

$

Usually ships in 3-6 days

0

6

MTD 791-182423

Screw, Plastic

$

$

Not available

7

MTD 791-182405

Rocker Switch Assembly

$11.99

$

In Stock, Qty 5

0

8

MTD 753-04809

Engine Mounting Plate

Note: (Incl. Ref No. 9)

$

$

Not available

9

MTD 710-04215A

Screw

$4.99

$

Usually ships in 3-6 days

0

10

MTD 791-182410

Mode Control Flapper

$10.99

$

Usually ships in 3-6 days

0

11

MTD 791-00050

Mode Control Lever

Note: (Incl. Ref No. 20)

$

$

Not available

12

MTD 731-04275

Impeller Blade

$37.99

$

In Stock, only 4 left!

0

13

MTD 736-04107

Washer

$4.99

$

Usually ships in 3-6 days

0

14

MTD 736-04110A

Lock Washer

$5.99

$

In Stock, only 2 left!

0

15

MTD 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

16

MTD 791-00051

Blower/Vac Tube Assembly

Note: (Incl. Ref No. 20)

$65.99

$

Usually ships in 3-6 days

0

17

MTD 791-182417

Vacumm Bag Adapter

$19.99

$

Usually ships in 3-6 days

0

18

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

19

MTD 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

20

MTD 791-181482

Screw

$4.99

$

Usually ships in 3-6 days

0

21

MTD 791-00049

Throttle Cable

$

$

Not available

22

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

MTD 791-612930

Cable Tie

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04465

Vacuum Bag Assembly

Note: Not Shown (Incl. Ref No. 17, Vacuum Bag & Cable Tie)

$76.99

$

In Stock, only 2 left!

0

MTD 753-04325

Patio Head

Note: Not Shown

$64.99

$

Usually ships in 3-6 days

0
