YM 141 (21A-141R901) - Yard-Man Tiller (2007) Lower Cultivator Parts Diagram

Tiller

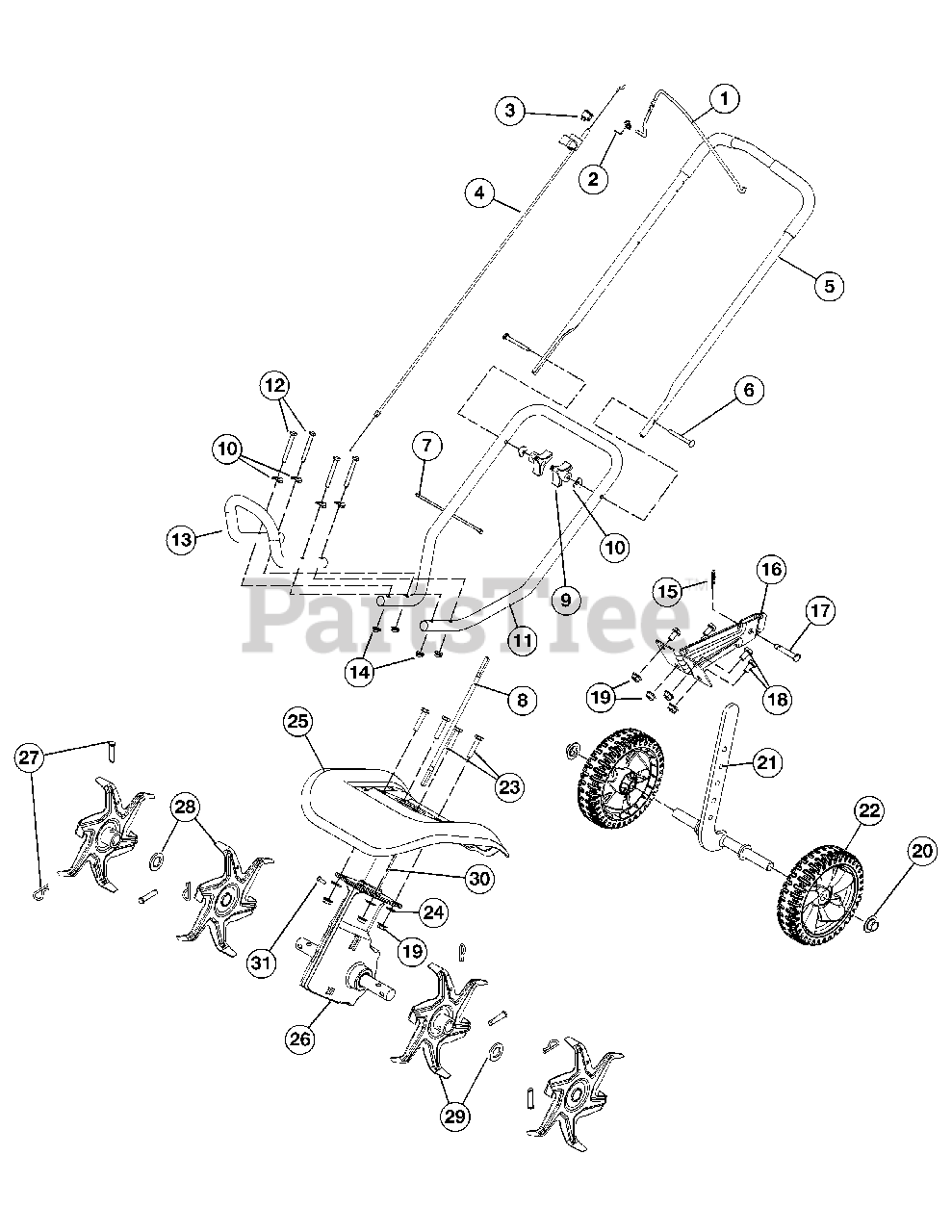

Lower Cultivator Parts Diagram

  • Title

1

MTD 753-04042

Throttle Control

$

$

Not available

2

MTD 753-04043

Torsion Spring (includes 7)

$

$

Not available

3

MTD 791-182673

On/Off Switch

$10.99

$

Usually ships in 3-6 days

0

4

MTD 753-04147

Throttle Cable

$

$

Not available

5

MTD 753-04498

Upper Handle
(Superseded to 753-06319)

$21.99

$

Usually ships in 3-6 days

0

6

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

7

MTD 753-04049

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

8

MTD 753-04499

Flex Shaft

$27.99

$

In Stock, Qty 6

0

9

MTD 791-182677

Knob

$13.99

$

Usually ships in 3-6 days

0

10

MTD 753-04052

Shoulder Washer
(Superseded to 936-0451)

$3.99

$

In Stock, Qty 20+

0

11

MTD 753-04053

Lower Handle
(Superseded to 749-1295A-0637)

$55.99

$

In Stock, only 1 left!

0

12

MTD 753-04054

Screw
(Superseded to 710-0395)

$4.49

$

In Stock, Qty 7

0

13

MTD 753-04055

Front Handle

$36.99

$

Usually ships in 3-6 days

0

14

MTD 753-04056

Lock Nut
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

15

MTD 753-04057

Cotter Pin
(Superseded to 914-0104)

$3.99

$

In Stock, Qty 20+

0

16

MTD 753-04058

Tailpiece Bracket Assembly

$38.99

$

Usually ships in 3-6 days

0

17

MTD 753-04059

Clevis Pin
(Superseded to 711-1017)

$6.99

$

In Stock, only 2 left!

0

18

MTD 753-04060

Cap Screw
(Superseded to 710-3013)

$4.49

$

In Stock, only 2 left!

0

19

MTD 753-04061

Lock Nut
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

20

MTD 753-04062

Cap Push
(Superseded to 726-0299)

$7.49

$

In Stock, Qty 20+

0

21

MTD 753-04063

Wheel Support Bracket Assembly

$54.99

$

In Stock, only 1 left!

0

22

MTD 753-04501

Wheel
(Superseded to 734-04261)

$19.99

$

Usually ships in 3-6 days

0

23

MTD 753-05001

Cap Screw
(Superseded to 6109)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182678

Washer
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

25

MTD 753-04915

Tine Shield

$

$

Not available

26

MTD 791-147474

Gear Box Assembly
(Superseded to 753-04489)

$

$

Not available

27

MTD 791-147473

Tine Fastener Assembly

$

$

Not available

28

MTD 791-182729

Tine Assembly (Left Outer or Right Inner)

$

$

Not available

29

MTD 791-182730

Tine Assembly (Left Inner or Right Outer)

$

$

Not available

30

MTD 753-04500

Drive Shaft Housing
(Superseded to 753-05469)

$34.99

$

In Stock, only 1 left!

0

31

MTD 791-180288

Anti Rotation Screw
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0
