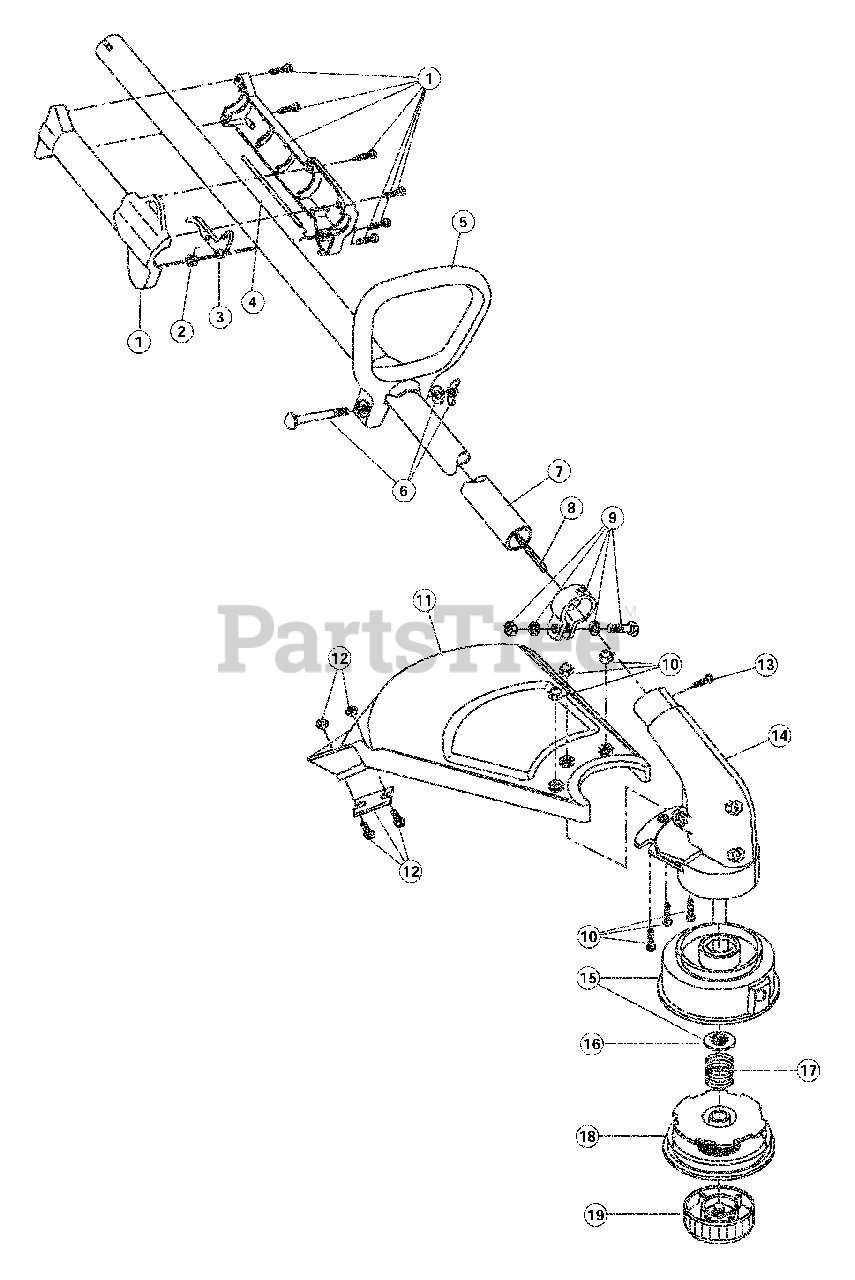

YM 1500 (41ADY15G701) - Yard-Man String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

Boom And Trimmer Parts Diagram

  • Title

1

MTD 753-04294

Throttle Housing & Trigger Assembly

Note: (Includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 753-04295

Throttle Trigger

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle

Note: (Includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$18.99

$

In Stock, only 1 left!

0

7

MTD 753-04330

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$75.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

Note: (Includes 13)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 791-180548

Guard and Blade Assembly

Note: (Includes 12)

$

$

Not available

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

13

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

14

MTD 791-180549

Gearbox Assembly

Note: (Includes 15)

$

$

Not available

15

MTD 791-153619

Outer Spool and Eyelet Assembly

$26.99

$

In Stock, only 1 left!

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317

Spring
(Superseded to 791-610317B)

$10.99

$

In Stock, Qty 20+

0

18

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$21.99

$

In Stock, Qty 20+

0

19

MTD 791-153066

Bump Head Knob Assembly
(Superseded to 791-153066B)

$13.99

$

In Stock, Qty 20+

0

MTD 791-610375

Cutting Line (50 ft)

Note: Optional Accessory; Not shown

$

$

Not available

MTD 791-153577

Spool and Line (25 ft) Assembly
(Superseded to 791-153577B)

Note: Optional Accessory; Not shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Not shown

$36.99

$

Usually ships in 3-6 days

0
