YM 1500 (41BDY15G901) - Yard-Man String Trimmer Boom and Trimmer Parts YM1500 Parts Diagram

String Trimmer

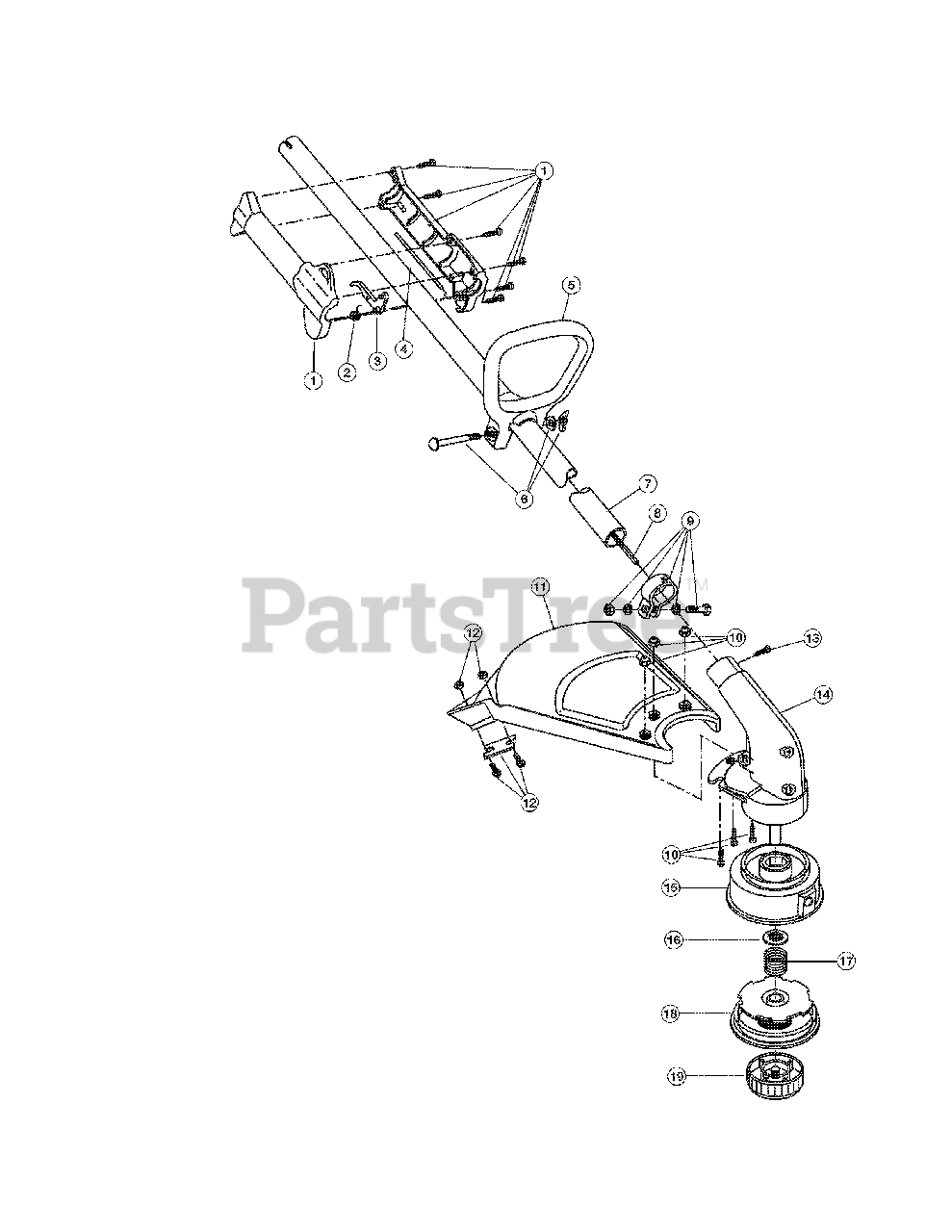

Boom and Trimmer Parts YM1500 Parts Diagram

  • Title

1

MTD 791-182069

Throttle Housing Assembly (includes 2 & 3)
(Superseded to 753-04927)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-181556

Throttle Trigger
(Superseded to 791-181807)

$9.49

$

In Stock, Qty 9

0

4

MTD 753-04901

Throttle Cable

$8.49

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle (includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$18.99

$

In Stock, only 1 left!

0

7

MTD 753-04828

Drive Shaft Housing

$

$

Not available

8

MTD 753-04251

Flexible Drive Shaft

$62.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly (includes 13)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 791-180548

Guard Assembly (includes 12)

$

$

Not available

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

13

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

14

MTD 791-180549

Gearbox Assembly (includes 15)

$

$

Not available

15

MTD 791-153619

Outer Spool Assembly (includes 16)

$26.99

$

In Stock, only 1 left!

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

18

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0
