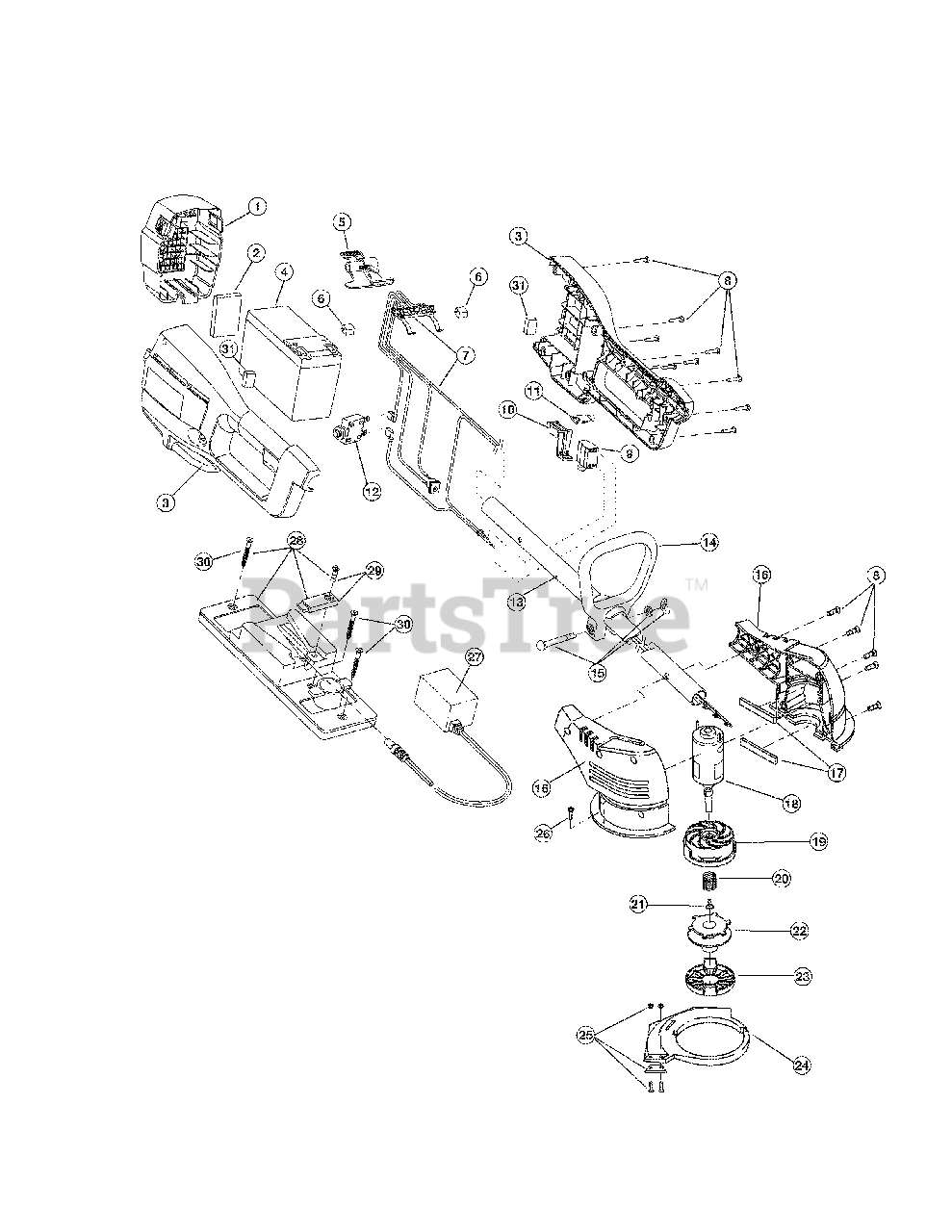

YM 155 (41AE155G901) - Yard-Man String Trimmer, Electric Replacement Parts Parts Diagram

String Trimmer, Electric

Replacement Parts Parts Diagram

  • Title

1

MTD 791-182696

Battery Door

$35.99

$

Usually ships in 3-6 days

0

2

MTD 791-182542

Foam Pad

$

$

Not available

3

MTD 753-05062

Battery Housing

$

$

Not available

4

MTD 791-182391B

12 Volt Batterry

$

$

Not available

5

MTD 791-182699

Battery Latch

$

$

Not available

6

MTD 791-182702

Terminal Spacer

$

$

Not available

7

MTD 791-182724

Wiring Harness Assembly

$

$

Not available

8

MTD 791-181482

Housing Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-180150

Switch Assembly (includes 10)

$

$

Not available

10

MTD 791-182318

Trigger

$

$

Not available

11

MTD 791-180364

Lock-Off Button
(Superseded to 791-182705)

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-180365

Circuit Breaker

$25.99

$

Usually ships in 3-6 days

0

13

MTD 791-180367

Motor Wire Tube

$

$

Not available

14

MTD 791-153064

D-Handle (includes 15)

$

$

Not available

15

MTD 791-181587

Handle Hardware

$18.99

$

In Stock, only 1 left!

0

16

MTD 753-05066

Motor Housing

$

$

Currently unavailable

17

MTD 791-180369

Spacer

$

$

Not available

18

MTD 791-182715

Motor with Shaft

$73.99

$

Usually ships in 3-6 days

0

19

MTD 791-180372

Outer Spool and Eyelet/Motor Fan

$

$

Not available

20

MTD 791-180374

Spring

$10.99

$

Usually ships in 3-6 days

0

21

MTD 753-04010

Screw

$

$

Not available

22

MTD 791-180292B

Inner Reel with .080" Line

$18.99

$

Usually ships in 3-6 days

0

23

MTD 791-180376

Reel Cover

$

$

Not available

24

MTD 791-180293

Guard Assembly (includes 25)

$

$

Not available

25

MTD 791-180377

Blade Assembly

$

$

Not available

26

MTD 753-1202

Guard Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 791-182534

12 Volt Charger

$66.99

$

Usually ships in 3-6 days

0

28

MTD 791-180295

Charging Station Stand (includes 29 & 30

$

$

Not available

29

MTD 791-180378

Barrel Clamp with Screw

$

$

Not available

30

MTD 791-182709

Mounting Screw

$

$

Not available

31

MTD 753-04007

Front Battery Pads

$

$

Not available

MTD 791-610375

Replacement Line (.080 Diameter) (NOT SHOWN)

Note: Optional Accessories

$

$

Not available

MTD 791-180327

Bump Head Assembly (includes 20-24)) (NOT SHOWN)

Note: Optional Accessories

$

$

Not available
