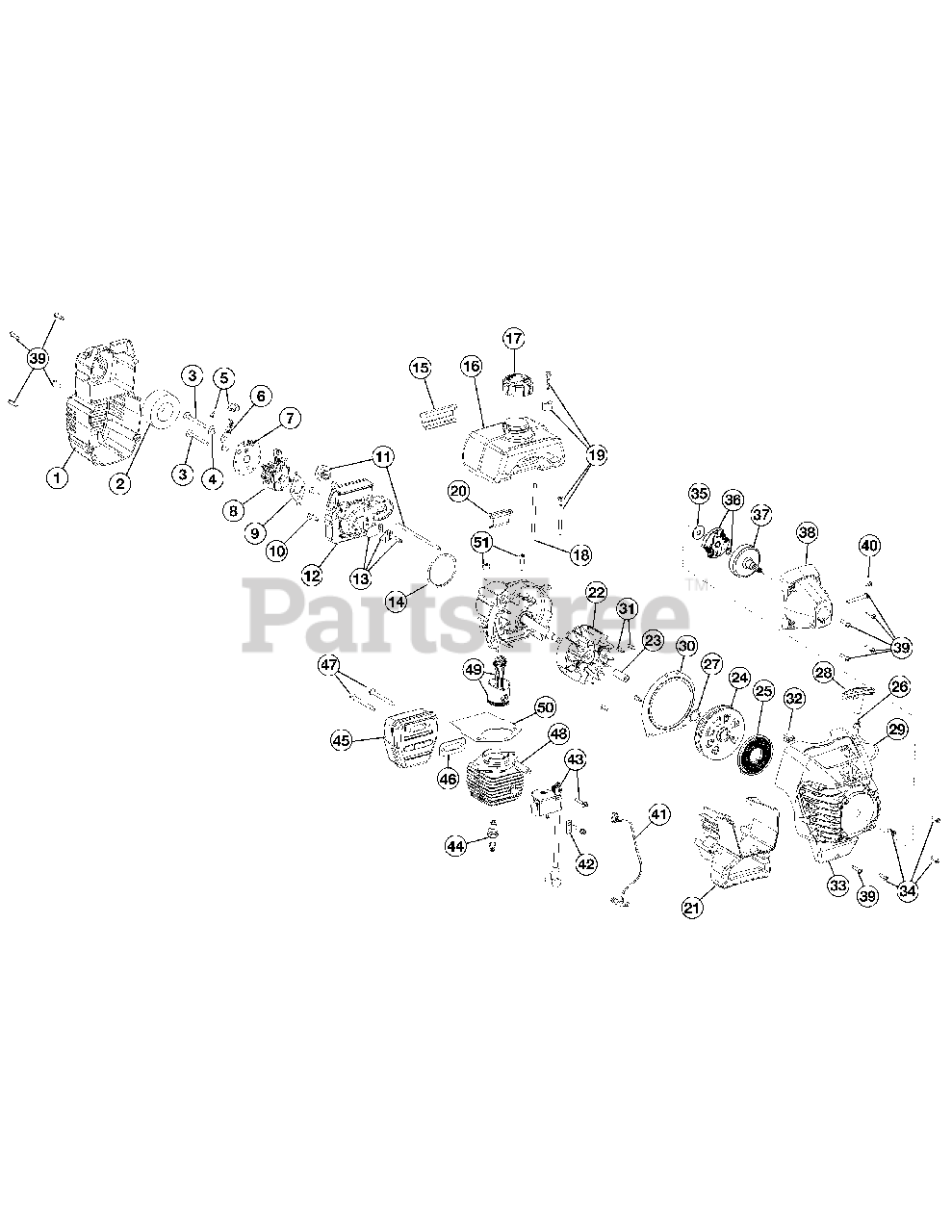

YM 20 CS (41ADY20C901) - Yard-Man String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (includes 2)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182202

Choke Knob w/Screw

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-04418

Choke Lever (includes 5)

$10.99

$

Usually ships in 3-6 days

0

7

MTD 753-04419

Choke Plate (includes 6)

$

$

Not available

8

MTD 753-05133

Carburetor Assembly (includes 9)

$81.99

$

In Stock, Qty 6

0

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer & Hose Assembly

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-05487

Carburetor O-Ring
(Superseded to 721-04163)

$3.49

$

In Stock, Qty 8

0

15

MTD 791-612134

Rear Mounting Pad

$

$

Not available

16

MTD 791-182767

Fuel Tank Assembly (includes 17-19)

$

$

Not available

17

MTD 753-04084

Fuel Cap Assembly

$21.99

$

Usually ships in 3-6 days

0

18

MTD 791-181086

Fuel Return Line

$6.99

$

In Stock, Qty 20+

0

19

MTD 753-04233

Fuel Line Assembly

$18.99

$

In Stock, Qty 11

0

20

MTD 791-145308

Front Mounting Pad

$

$

Not available

21

MTD 753-05091

Shroud Extension & Stand (includes 39)

$17.99

$

Usually ships in 3-6 days

0

22

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

23

MTD 791-181525

Spacer

$20.99

$

Usually ships in 3-6 days

0

24

MTD 753-04459

Recoil Pulley Assembly (includes 25, 27 & 29)
(Superseded to 753-04823)

$30.99

$

In Stock, Qty 9

0

25

MTD 753-04286

Recoil Spring

$24.99

$

In Stock, Qty 6

0

26

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

27

MTD 753-04288

Pulley Retainer

$9.99

$

In Stock, only 1 left!

0

28

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

29

MTD 791-613103

Rope

$9.99

$

In Stock, only 3 left!

0

30

MTD 753-04928

Pressure Plate Assembly (includes 31)

$

$

Not available

31

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

32

MTD 753-04824

Rope Guide Retainer

$

$

Not available

33

MTD 753-05492

Starter Housing Assembly (includes 24-32, 34 & 39)

$68.99

$

In Stock, only 1 left!

0

34

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

36

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$23.99

$

In Stock, Qty 20+

0

37

MTD 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 14

0

38

MTD 753-04889

Clutch Cover Assembly (includes 39-40)

$19.99

$

Usually ships in 3-6 days

0

39

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

40

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

41

MTD 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

42

MTD 791-611063

Ground Tab

$

$

Not available

43

MTD 753-04336

Module Assembly

$100.99

$

Usually ships in 3-6 days

0

44

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

45

MTD 753-05169

Muffler Assembly (includes 46 & 47)

$104.99

$

Usually ships in 3-6 days

0

46

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

47

MTD 753-04620

Muffler Mounting Bolts
(Superseded to 710-04188A)

$3.99

$

Usually ships in 3-6 days

0

48

MTD 753-04814

Cylinder Assembly (includes 50 & 51)

$78.99

$

In Stock, only 1 left!

0

49

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

50

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

51

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-04689

Spark Arrestor Screen

Note: Not Shown

$

$

Not available

MTD 753-1209

Piston Ring Set

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04812

Short Block Assembly (includes 10, Crankcase, 44 & 48-51)

Note: Not Shown

$208.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Not Shown

$10.99

$

In Stock, only 1 left!

0
