YM 21 CS (41ADY21C901) - Yard-Man String Trimmer General Assembly Parts Diagram

String Trimmer

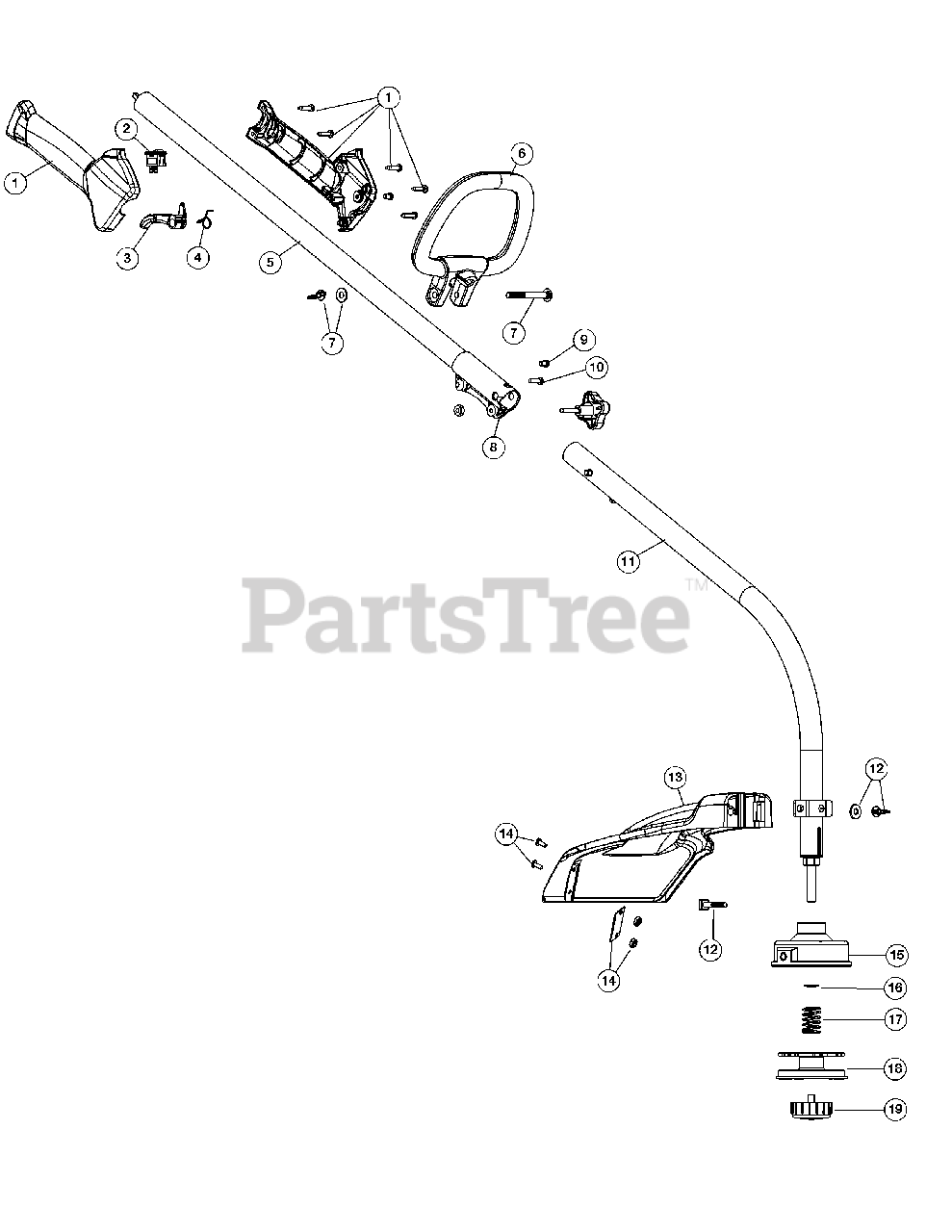

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$22.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$11.99

$

In Stock, only 3 left!

0

3

MTD 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, Qty 5

0

5

MTD 753-04344

Upper Shaft Housing Assembly

$90.99

$

In Stock, only 2 left!

0

6

MTD 753-05461

D-Handle (Incl. 7)

$23.99

$

Usually ships in 3-6 days

0

7

MTD 791-181587

D-Handle Hardware Assembly

$20.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl. 9 - 10)

$24.99

$

In Stock, Qty 11

0

9

MTD 791-182057

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

10

MTD 791-181617

Bolt

$5.99

$

In Stock, Qty 10

0

11

MTD 753-04508

Lower Shaft Housing Assembly

$85.99

$

In Stock, Qty 6

0

12

MTD 753-04282

Shield Mounting Hardware

$27.99

$

In Stock, Qty 5

0

13

MTD 753-04283

Shield Assembly (Incl. 14)

$54.99

$

In Stock, only 3 left!

0

14

MTD 791-180553

Blade Assembly

$15.99

$

In Stock, Qty 7

0

15

MTD 753-04284

Outer Spool Assembly (Incl. 16)

$29.99

$

In Stock, Qty 20+

0

16

MTD 791-610660

Retainer

$5.49

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

18

MTD 753-1155

Inner Reel

$24.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head Knob Assembly

$14.99

$

In Stock, Qty 20+

0

MTD 953-1156

Reel & Line Assembly

Note: Not shown

$33.99

$

In Stock, only 2 left!

0
