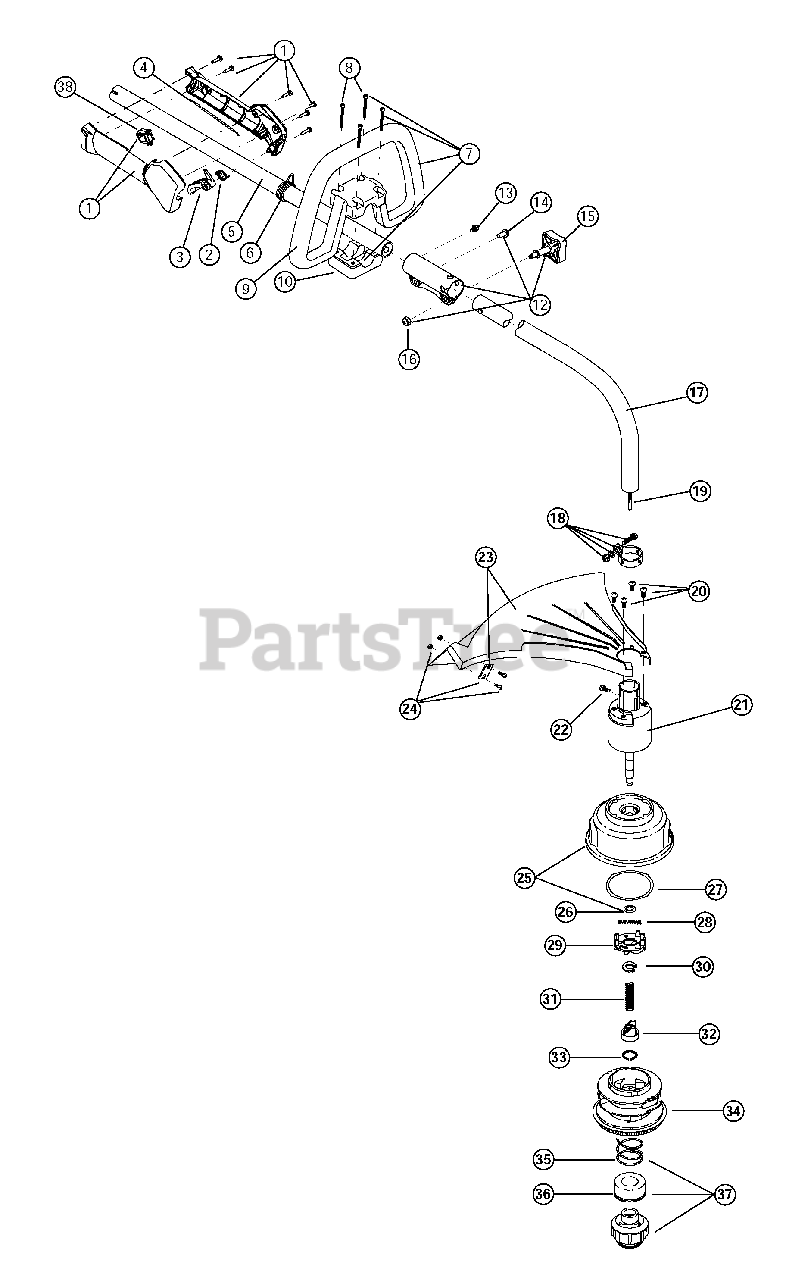

YM 25 (41ADY25C401) - Yard-Man String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-00057

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

3

MTD 791-00058

Throttle Trigger
(Superseded to 753-06754)

$6.99

$

In Stock, only 1 left!

0

4

MTD 791-182877

Throttle Cable Assembly

$15.99

$

Usually ships in 3-6 days

0

5

MTD 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

6

MTD 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

7

MTD 791-180809

Deluxe D-Handle Assembly

Note: (includes 8-10)

$

$

Currently unavailable

8

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

MTD 753-1190

EZ-Link Coupler

Note: (includes 11-15)

$21.99

$

In Stock, Qty 6

0

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

13

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

14

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

Note: (includes 11)

$7.49

$

In Stock, only 1 left!

0

15

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

16

MTD 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$98.99

$

Usually ships in 3-6 days

0

17

MTD 791-153597

Lower Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

18

MTD 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

19

MTD 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

20

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

21

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

22

MTD 791-181659

Shield and Blade Assembly

Note: (includes 23)

$

$

Not available

23

MTD 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

24

MTD 791-181457

Outer Spool and Eyelet Assembly w/Retainer

$37.99

$

In Stock, only 3 left!

0

25

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

26

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

27

MTD 791-181459

Small Spring

$4.49

$

In Stock, Qty 20+

0

28

MTD 791-181461

Slider
(Superseded to 753-04257)

$6.99

$

In Stock, Qty 10

0

29

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

30

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

31

MTD 791-181462

Plunger

$

$

Not available

32

MTD 791-181463

C-Clip

$3.99

$

In Stock, Qty 6

0

33

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

34

MTD 791-181465

Large Spring

$

$

Currently unavailable

35

MTD 791-181467

Foam Seal

$

$

Not available

36

MTD 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 34 & 35)

$15.99

$

Usually ships in 3-6 days

0

37

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessory; Not Shown

$30.99

$

In Stock, Qty 7

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

$36.99

$

Usually ships in 3-6 days

0
