YM 260 CO (41AD26OG701) - Yard-Man String Trimmer Boom And Trimmer Parts Diagram

String Trimmer

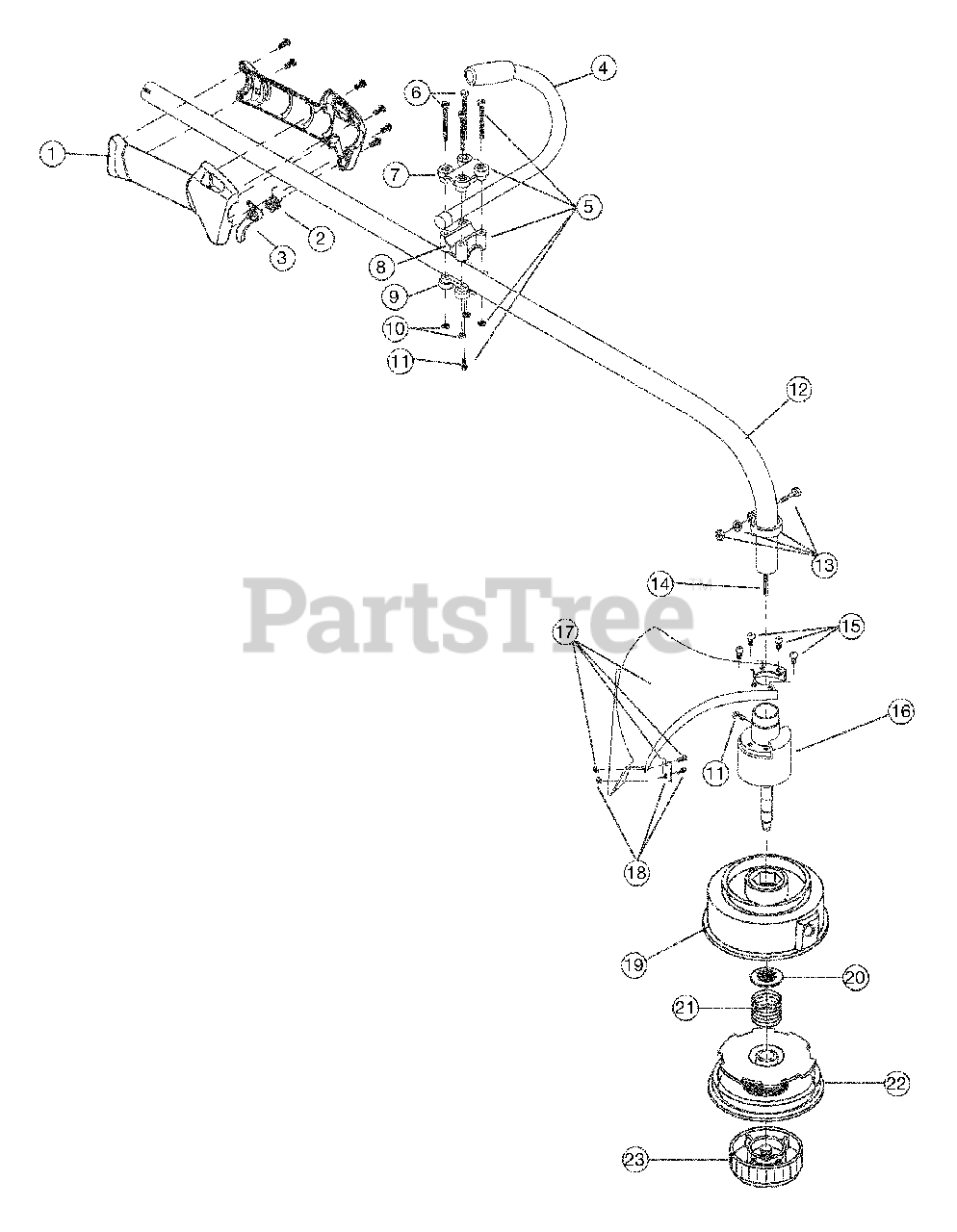

Boom And Trimmer Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (Includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-683815

J-Handle Assembly

$

$

Not available

5

MTD 791-683295

Handle Bracket Assembly

Note: (Includes 6-11)

$48.99

$

Usually ships in 3-6 days

0

6

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

7

MTD 791-181812

Upper Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

8

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

9

MTD 791-181814

Lower Handle Clamp

$9.49

$

Usually ships in 3-6 days

0

10

MTD 791-181815

Nut

$4.99

$

Usually ships in 3-6 days

0

11

MTD 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

12

MTD 753-04301

Drive Shaft Housing Assembly

Note: (Includes 14)

$

$

Not available

13

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

14

MTD 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$86.99

$

Usually ships in 3-6 days

0

15

MTD 791-180531

Shield Mounting Screw
(Superseded to 791-181858)

$

$

Not available

16

MTD 791-181784

Bushing Housing Assembly w/Spool Shaft

$

$

Not available

17

MTD 791-683274

Shield and Blade Assembly

$38.99

$

In Stock, only 2 left!

0

18

MTD 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

19

MTD 791-153619

Outer Spool and Eyelet Assembly

Note: (Includes 20)

$29.99

$

Usually ships in 3-6 days

0

20

MTD 791-610660

Retainer

$5.49

$

In Stock, Qty 20+

0

21

MTD 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

22

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$24.99

$

In Stock, Qty 20+

0

23

MTD 791-153066B

Bump Head Knob Assembly

$14.99

$

In Stock, Qty 20+

0

MTD 791-610375

Replacement Line, 0.080 Diameter

Note: Optional Accessory; Not Shown

$

$

Not available

MTD 791-153577B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$29.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$41.99

$

Usually ships in 3-6 days

0

MTD 791-180897B

Bump Head Assembly

Note: Optional Accessory; Not Shown

$79.99

$

Usually ships in 3-6 days

0
