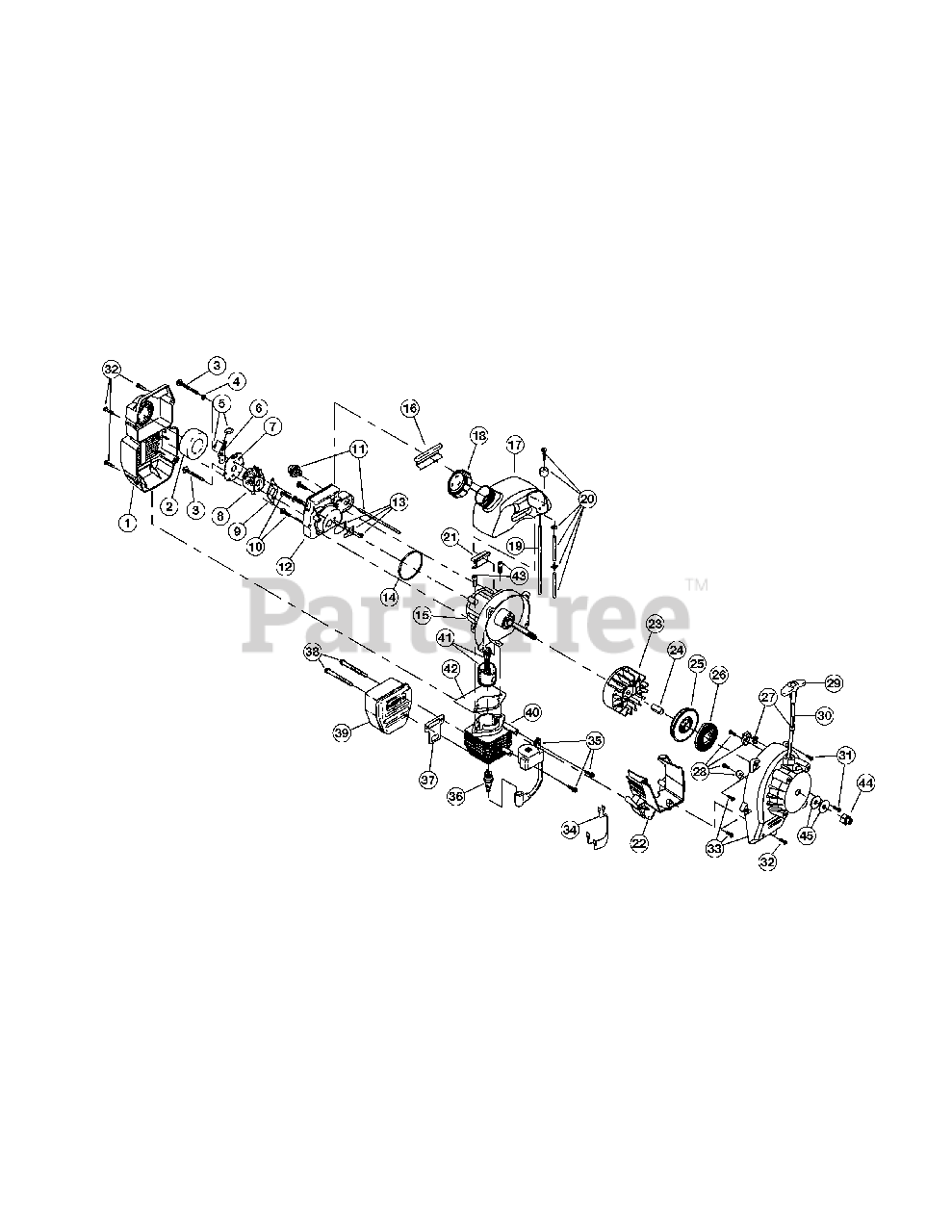

YM 320 BV (41CS320G901) - Yard-Man Blower Vacuum Engine Assembly Parts Diagram

Blower Vacuum

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner/Muffler Cover Assembly

Note: (Incl. 2 & 32)

$41.99

$

In Stock, only 1 left!

0

2

MTD 791-180350B

Air Cleaner Filter

$10.99

$

In Stock, Qty 6

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 936-0271

Wavey Washer

$4.99

$

In Stock, Qty 9

0

5

MTD 791-182202

Choke Knob and Screw

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly

Note: (Incl. 5)

$

$

Not available

7

MTD 753-04419

Choke Lever and Plate

Note: (Incl. 6)

$

$

Not available

8

MTD 753-04408

Carburetor Assembly

Note: (Incl. 9 & 20)

$75.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$

$

Not available

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$24.99

$

In Stock, Qty 16

0

12

MTD 753-1196

Carb Mount Assembly

Note: (Incl. 10,13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 721-04163

Ring

$3.99

$

In Stock, Qty 6

0

15

MTD 753-04328

Crank Case Service Assembly

Note: (Incl. 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04310

Fuel Tank Assembly

Note: (Incl. 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$21.99

$

In Stock, Qty 6

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 16

0

20

MTD 791-682039

Fuel Line Assembly

$17.99

$

In Stock, Qty 19

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182401

Shroud Extension

Note: (Incl. 32)

$

$

Not available

23

MTD 753-05240

Flywheel Assembly

$81.99

$

In Stock, only 2 left!

0

24

MTD 750-04245

Spacer

$3.99

$

Usually ships in 3-6 days

0

25

MTD 753-1199

Recoil Pulley Assembly

$24.99

$

In Stock, only 4 left!

0

26

MTD 791-613102

Recoil Spring

$27.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$11.99

$

In Stock, only 2 left!

0

28

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

29

MTD 631-04164A

Pull Handle
(Superseded to 631-04164B)

$4.49

$

In Stock, Qty 8

0

30

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

32

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

33

MTD 791-181931

Starter Housing Assembly

Note: (Incl. 25-32)

$

$

Not available

34

MTD 791-182402

Wire Lead Assembly

$12.99

$

Usually ships in 3-6 days

0

35

MTD 753-05866

Module Assembly

$92.99

$

Usually ships in 3-6 days

0

36

MTD 791-610311B

Spark Plug

$15.99

$

In Stock, Qty 5

0

37

MTD 791-180980

Exhaust Gasket

$8.49

$

Usually ships in 3-6 days

0

38

MTD 710-04188A

Muffler Mounting Bolt Assembly

$4.49

$

Usually ships in 3-6 days

0

39

MTD 753-05709

Muffler Assembly
(Superseded to 753-05169)

Note: (Incl. 37 & 38)

$118.99

$

Usually ships in 3-6 days

0

40

MTD 753-04814

Cylinder Assembly

Note: (Incl. 42 & 43)

$88.99

$

In Stock, only 1 left!

0

41

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

42

MTD 753-04182

Cylinder Gasket

$17.99

$

Usually ships in 3-6 days

0

43

MTD 791-182723

Cylinder Bolt

$4.99

$

In Stock, Qty 12

0

44

MTD 791-181524

Impeller Drive Nut

$

$

Not available

45

MTD 9162-1

Washer

$4.99

$

In Stock, only 2 left!

0

MTD 753-1209

Piston Ring

Note: Not shown

$56.99

$

Usually ships in 3-6 days

0

MTD 753-04895

Short Block Assembly

Note: Not shown (Incl. 10, 15, 36, 40-43)

$

$

Not available
