YM 600 - Weed Eater Trimmer, Electric Electric Trimmer Parts Diagram

Trimmer, Electric

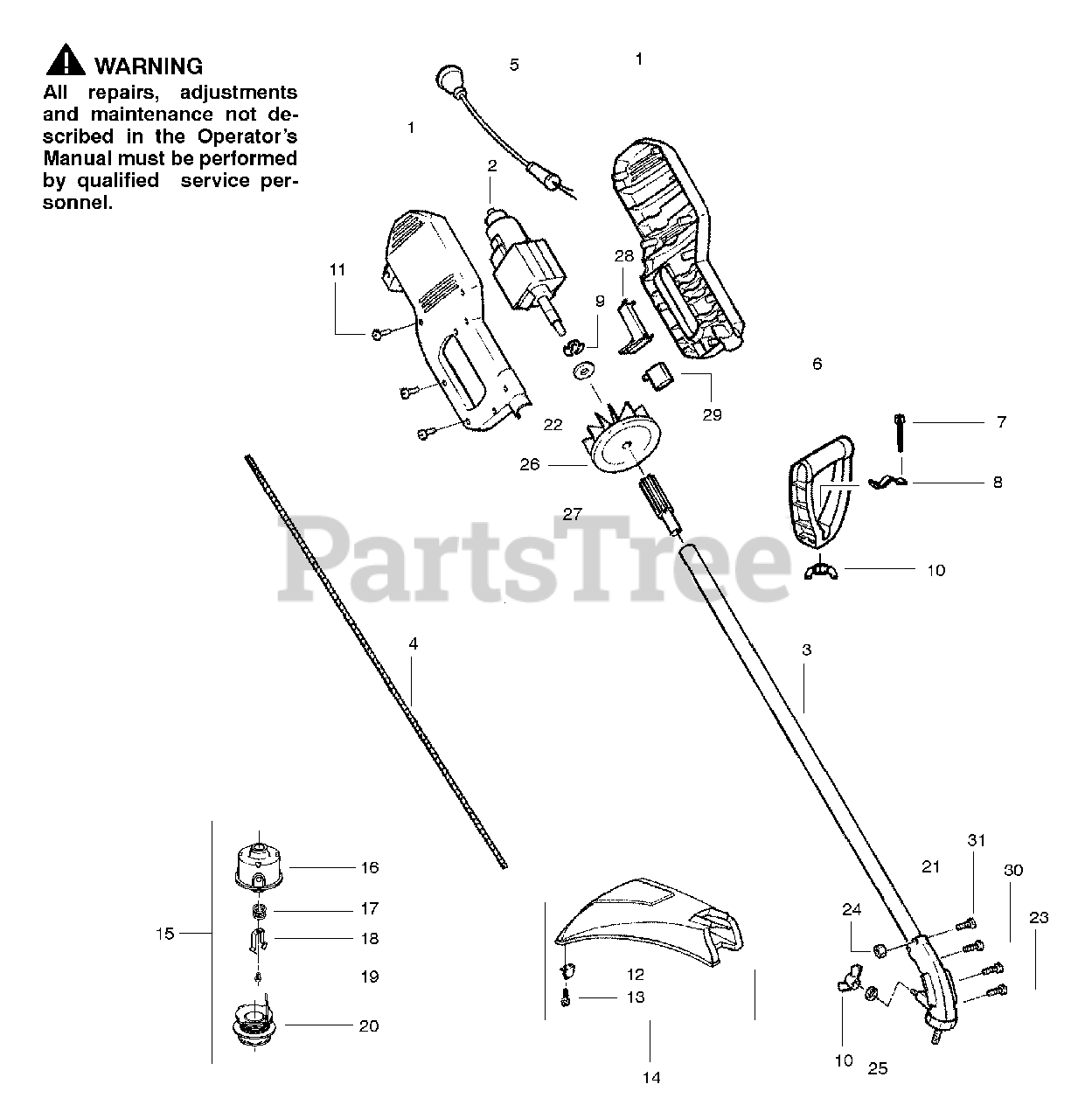

Electric Trimmer Parts Diagram

  • Title

1

Poulan 530403717

Set-Housing

$

$

Not available

2

Poulan 530402688

Motor

$

$

Not available

3

Poulan 530403742

Assy-Tube

$

$

Not available

4

Poulan 530095391

Shaft-Flex

$

$

Not available

5

Poulan 530402803

Assy-Wiring Harness

Note: (Incl. Switch)

$

$

Not available

6

Poulan 530038708

Handle-Assist

$

$

Not available

7

Poulan 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

8

Poulan 530094742

Clamp-Assist Handle

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530403111

Clip Retainer

$

$

Not available

10

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 10

0

12

Poulan 530095387

Line Limiter

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 530015880

Screw-Line Limiter

$4.99

$

In Stock, Qty 8

0

14

Poulan 530069752

Kit-Shield Ass'y.

Note: (Incl.12 & 13)

$

$

Not available

15

Poulan 952701666

Accy-Cutting Head
(Superseded to 590267601)

Note: (Incl. 16-20)

$26.99

$

In Stock, Qty 6

0

16

Poulan 530069690

Assy-Hub

$

$

Not available

17

Poulan 530401464

Spring

$

$

Not available

18

Poulan 530401466

Retainer-Clip

$3.99

$

In Stock, Qty 10

0

19

Poulan 530401467

Screw w/ Washer-Head

$

$

Not available

20

Poulan 952711527

Accy-Spool w/Line

$

$

Not available

21

Poulan 530095638

Assy-Gear Box

$

$

Not available

22

Poulan 530403112

Washer-Drive Adaptor

$

$

Not available

23

Poulan 530016202

Screw

$

$

Not available

24

Poulan 530016284

Locknut

$4.99

$

In Stock, only 4 left!

0

25

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 530402798

Fan

$

$

Not available

27

Poulan 530402801

Drive Adaptor Ass'y.

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530402799

Trigger

$

$

Not available

29

Poulan 530402802

Switch

$

$

Not available

30

Poulan 530016224

Screw

$4.99

$

In Stock, Qty 5

0

31

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

Poulan 545117524

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530403323

Shaft Warning Decal

Note: Not Shown

$

$

Not available
