YM 70 SS (41ADY70C901) - Yard-Man String Trimmer Boom & Trimmer Parts Diagram

String Trimmer

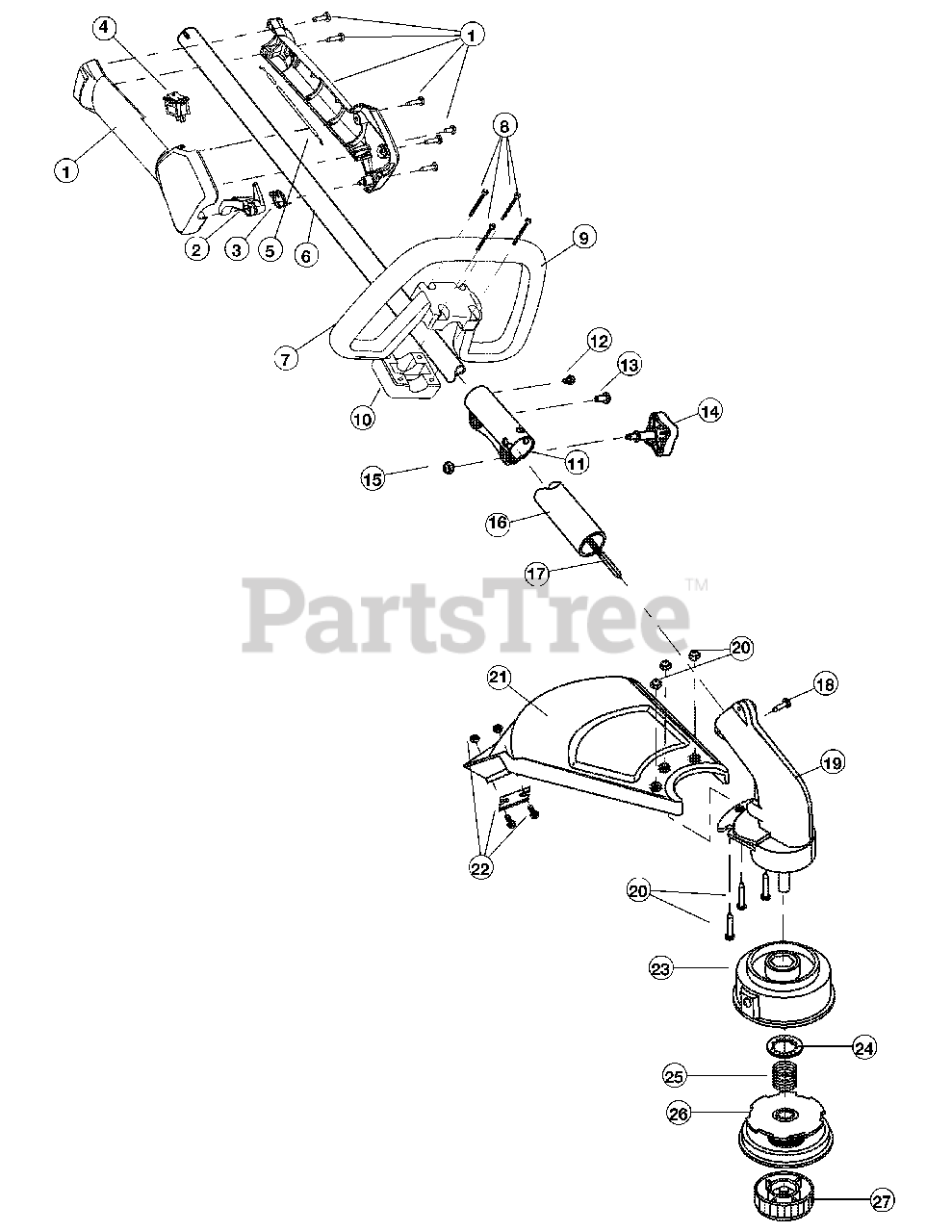

Boom & Trimmer Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 17

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 13

0

4

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

5

MTD 753-04405

Throttle Cable Assembly

$7.99

$

In Stock, only 1 left!

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, Qty 8

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

MTD 791-181616B

Split Boom Coupler (includes 12-15)
(Superseded to 753-1190)

$23.99

$

In Stock, only 4 left!

0

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 11

0

13

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

14

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

15

MTD 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

16

MTD 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

MTD 753-05182

Lower Flexible Drive Shaft

$31.99

$

In Stock, only 2 left!

0

18

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 10

0

19

MTD 753-05183

Gear Box Assembly (includes 23-27)

$

$

Not available

20

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

21

MTD 791-180548

Shield Assembly (includes 22)

$

$

Not available

22

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

23

MTD 791-153619

Outer Spool Assembly (includes 24)

$27.99

$

In Stock, only 1 left!

0

24

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

25

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

26

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

27

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: Optional Accessories not shown

$31.99

$

In Stock, Qty 7

0

MTD 753-1156

Reel and Line Assembly
(Superseded to 953-1156)

Note: Optional Accessories not shown

$31.99

$

In Stock, Qty 7

0
