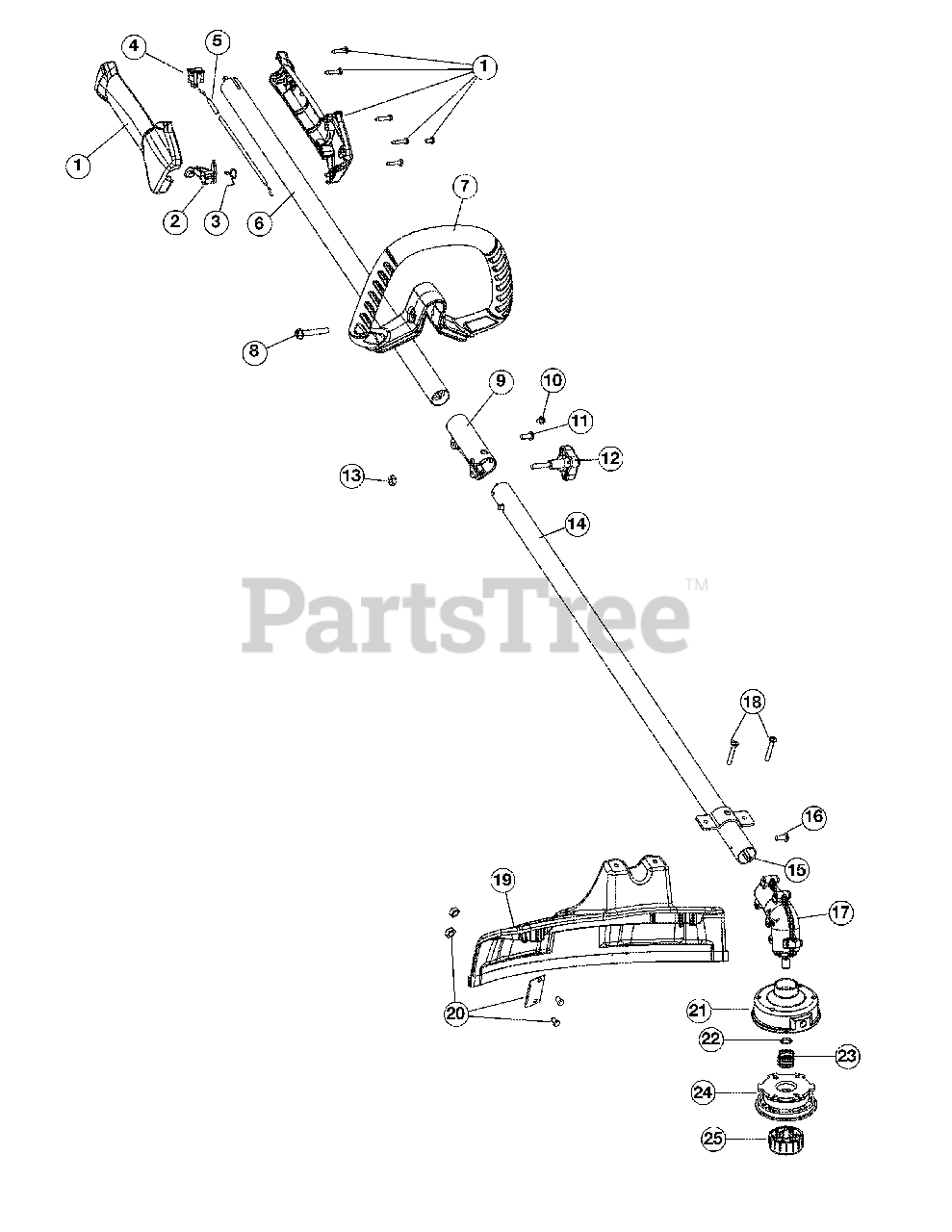

YM 70 SS (41BDY70C901) - Yard-Man String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No. 2-4)

$22.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 17

0

3

MTD 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, Qty 5

0

4

MTD 791-182405

Switch

$11.99

$

In Stock, Qty 8

0

5

MTD 746-04085A

Throttle Cable Assembly

$11.99

$

In Stock, only 1 left!

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$90.99

$

In Stock, only 2 left!

0

7

MTD 753-06039

Deluxe D-Handle Assembly

Note: (Incl. Ref No. 8)

$11.99

$

In Stock, only 4 left!

0

8

MTD 753-06040

Bolt

$7.49

$

In Stock, Qty 18

0

9

MTD 791-181616B

Split Boom Coupler
(Superseded to 753-1190)

Note: (Incl. Ref No. 10-13)

$24.99

$

In Stock, Qty 11

0

10

MTD 791-182057

Screw

$4.99

$

In Stock, Qty 17

0

11

MTD 791-181617

Bolt

$5.99

$

In Stock, Qty 10

0

12

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

Note: (Incl. Ref No. 13)

$7.49

$

Usually ships in 3-6 days

0

13

MTD 712-04018A

Knob Retaining Nut

$4.99

$

In Stock, only 4 left!

0

14

MTD 753-08164

Lower Drive Shaft Housing Assembly

$22.99

$

In Stock, Qty 20+

0

15

MTD 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 20+

0

16

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, Qty 7

0

17

MTD 753-06140

Gear Box Assembly
(Superseded to 753-06571)

Note: (Incl. Ref No. 16 & 21-25)

$

$

Not available

18

MTD 753-06125

Shield Mounting Screws

$7.49

$

In Stock, only 2 left!

0

19

MTD 753-06123

Shield Assembly

Note: (Incl. Ref No. 20)

$21.99

$

In Stock, Qty 7

0

20

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

21

MTD 753-04284

Outer Spool Assembly

$29.99

$

In Stock, Qty 20+

0

22

MTD 791-610660

Retainer

$5.49

$

In Stock, Qty 20+

0

23

MTD 791-610317B

Spring

$11.99

$

In Stock, Qty 20+

0

24

MTD 753-1155

Inner Reel

$24.99

$

In Stock, Qty 20+

0

25

MTD 791-153066B

Bump Knob Assembly

$14.99

$

In Stock, Qty 20+

0

MTD 953-1156

Reel & Line Assembly

Note: Not Shown

$33.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap

Note: Not Shown

$41.99

$

Usually ships in 3-6 days
