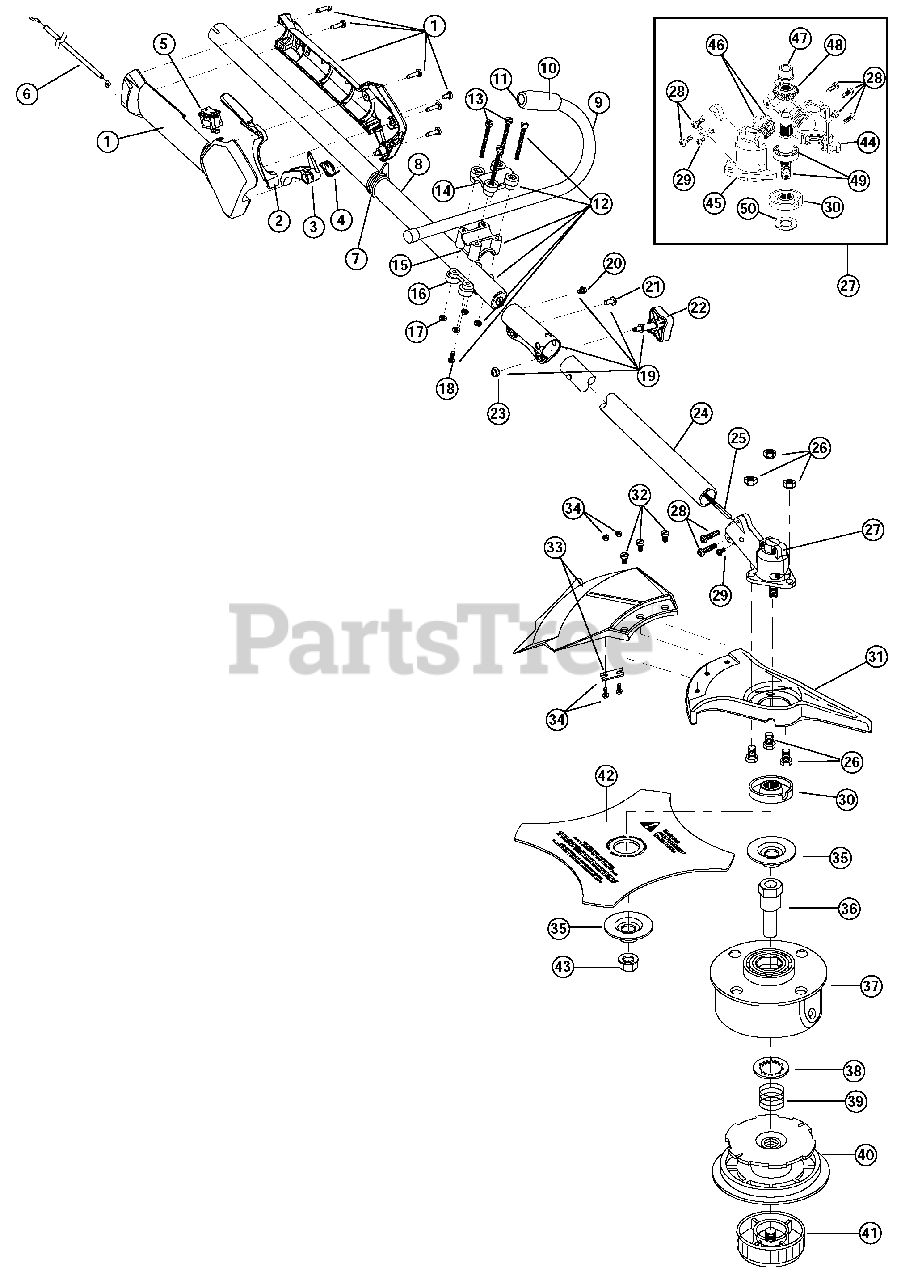

YM 90 (41ADY90C401) - Yard-Man String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04339

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 753-04340

Throttle Trigger Lock-Out

$

$

Not available

3

MTD 791-00058

Throttle Trigger
(Superseded to 753-06754)

$6.99

$

In Stock, only 1 left!

0

4

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

5

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

6

MTD 753-04278

Throttle Cable Assembly
(Superseded to 746-04085A)

$9.99

$

In Stock, only 3 left!

0

7

MTD 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

8

MTD 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

9

MTD 791-181099

J-Handle Assembly

Note: (includes 10 & 11)

$

$

Not available

10

MTD 791-612831

Grip

$11.99

$

Usually ships in 3-6 days

0

11

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

12

MTD 791-683295

Handle Bracket Assembly

Note: (includes 13-18)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

14

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

15

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

16

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

17

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

18

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

19

MTD 791-182928

Click-Link Coupler

Note: (includes 20-23)

$

$

Not available

20

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

21

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

22

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

23

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

24

MTD 791-180804

Lower Drive Shaft Housing Assembly

$

$

Not available

25

MTD 791-613300

Lower Flexible Drive Shaft

$82.99

$

Usually ships in 3-6 days

0

26

MTD 791-182200

Shield Mount Screw Assembly

$6.49

$

In Stock, only 2 left!

0

27

MTD 791-182193

2 piece Gearbox Assembly

Note: (includes 28-30)

$92.99

$

In Stock, only 2 left!

0

28

MTD 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 14

0

29

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

30

MTD 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

31

MTD 791-147492

Blade Shield/Shield Mount

$118.99

$

Usually ships in 3-6 days

0

32

MTD 791-683304

Shield Mounting Screw

$10.99

$

Usually ships in 3-6 days

0

33

MTD 753-1191

Shield and Blade Assembly

Note: (includes 34)

$60.99

$

In Stock, only 2 left!

0

34

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

35

MTD 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

36

MTD 791-612483

Spool Shaft

$51.99

$

In Stock, only 1 left!

0

37

MTD 791-683301

Outer Spool and Eyelet Assembly

$45.99

$

In Stock, Qty 9

0

38

MTD 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

39

MTD 791-610636B

Spring

$9.49

$

In Stock, Qty 20+

0

40

MTD 791-147495

Inner Reel

$24.99

$

In Stock, Qty 14

0

41

MTD 791-180814B

Bump Head Knob Assembly

$19.99

$

In Stock, Qty 20+

0

42

MTD 791-145873B

4-Tooth Blade

$42.99

$

In Stock, Qty 9

0

43

MTD 791-181699

Nut
(Superseded to 712-04105)

$9.99

$

In Stock, only 3 left!

0

MTD 791-180014B

Blade Retaining Kit

Note: (includes 35 & 43); Item not shown

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

Locking Rod Tool

Note: Item not shown

$13.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Harness

Note: Item not shown

$36.99

$

Usually ships in 3-6 days

0

44

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

45

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

46

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Part - Item 27

$29.99

$

Usually ships in 3-6 days

0

47

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

48

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

49

MTD 791-182197

Output Shaft Assembly

Note: (includes 46 & 47); 2 Piece Gearbox Assembly Part - Item 27

$

$

Not available

50

MTD 753-04348

Palnut

Note: 2 Piece Gearbox Assembly Part - Item 27

$6.49

$

In Stock, only 1 left!

0

MTD 753-1160

Reel and Line Assembly
(Superseded to 753-1224)

Note: Optional Accessory; Item not shown

$30.99

$

In Stock, only 2 left!

0

MTD 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: (includes 36-41); Optional Accessory; Item not shown

$109.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Harness

Note: Optional Accessory; Item not shown

$36.99

$

Usually ships in 3-6 days

0
