YMESV 1300 (41BBESPG901) - Yard-Man Blower Vacuum, Electric General Assembly Parts Diagram

Blower Vacuum, Electric

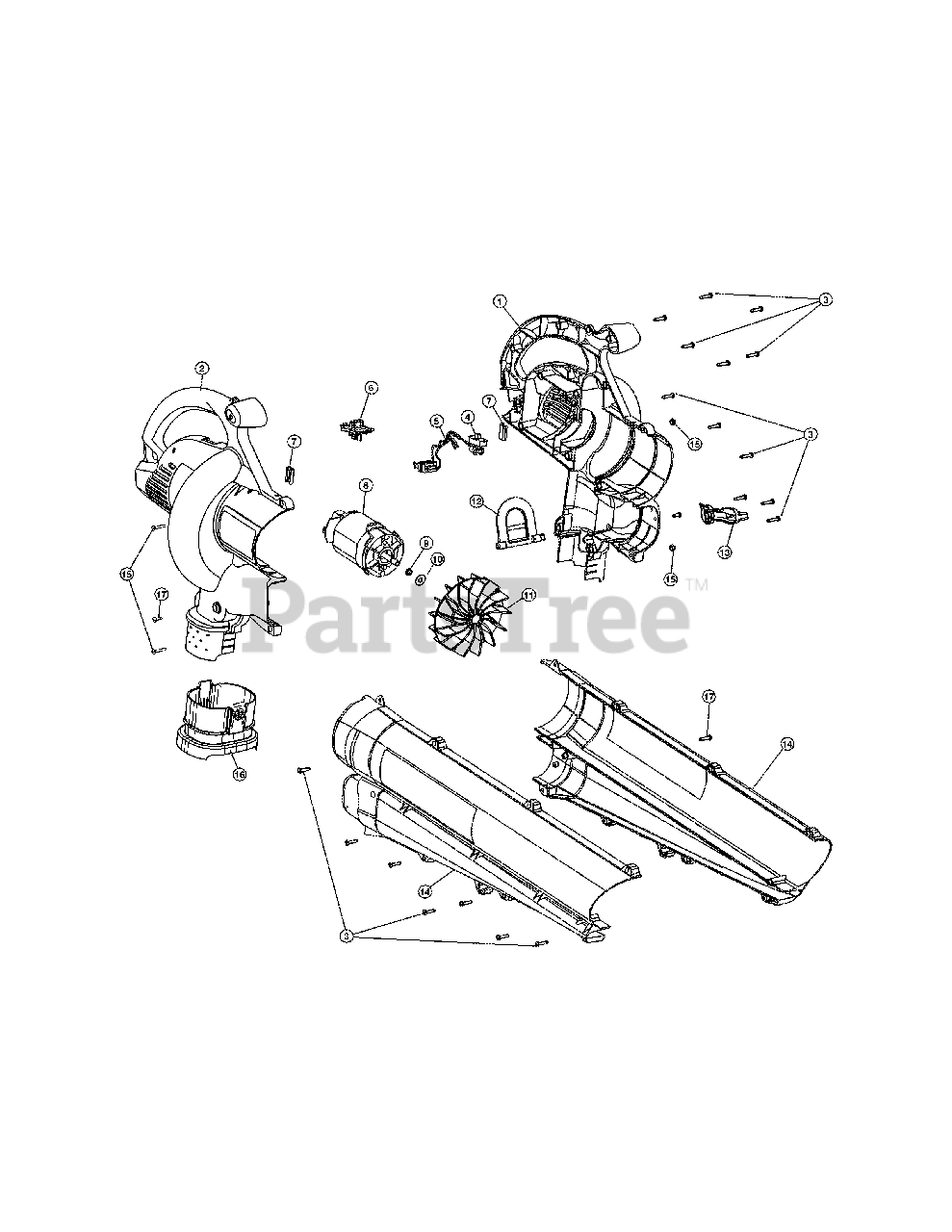

General Assembly Parts Diagram

  • Title

1

MTD 791-182544

Left Motor Housing

$

$

Not available

2

MTD 791-182545

Right Motor Housing

$

$

Not available

3

MTD 791-181482

Housing Screw

$4.99

$

Usually ships in 3-6 days

0

4

MTD 791-182546

Switch Assembly

$

$

Not available

5

MTD 791-182547

Power Connection Wire Assembly

$16.99

$

Usually ships in 3-6 days

0

6

MTD 791-180509

Switch Lever

$

$

Not available

7

MTD 791-180503

Rubber Cushion

$

$

Not available

8

MTD 791-182548

Motor Assembly

$

$

Not available

9

MTD 791-182549

Spacer

$

$

Not available

10

MTD 791-180505

Washer

$

$

Not available

11

MTD 791-182550

Impeller

$44.99

$

In Stock, Qty 5

0

12

MTD 791-182410

Mode Control Flapper

$10.99

$

Usually ships in 3-6 days

0

13

MTD 791-00050

Mode Control Lever (Incl. Ref No. 3)

$

$

Not available

14

MTD 791-00051

Blower/ Vac Tube Assembly (Incl. Ref No. 3)

$65.99

$

Usually ships in 3-6 days

0

15

MTD 791-182425

Blower/ Vac Tube Mounting Hardware

$

$

Not available

16

MTD 791-182417

Vacuum Bag Assembly

$19.99

$

Usually ships in 3-6 days

0

17

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

MTD 791-612930

Cable Tie

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04465

Vacuum Bag Assembly

Note: (Incl. Ref No. , Vacuum Bag & cable tie) Not shown

$76.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Harness

Note: Not shown

$41.99

$

Usually ships in 3-6 days

0

MTD 753-04325

Patio Head

Note: Not shown

$64.99

$

Usually ships in 3-6 days

0
