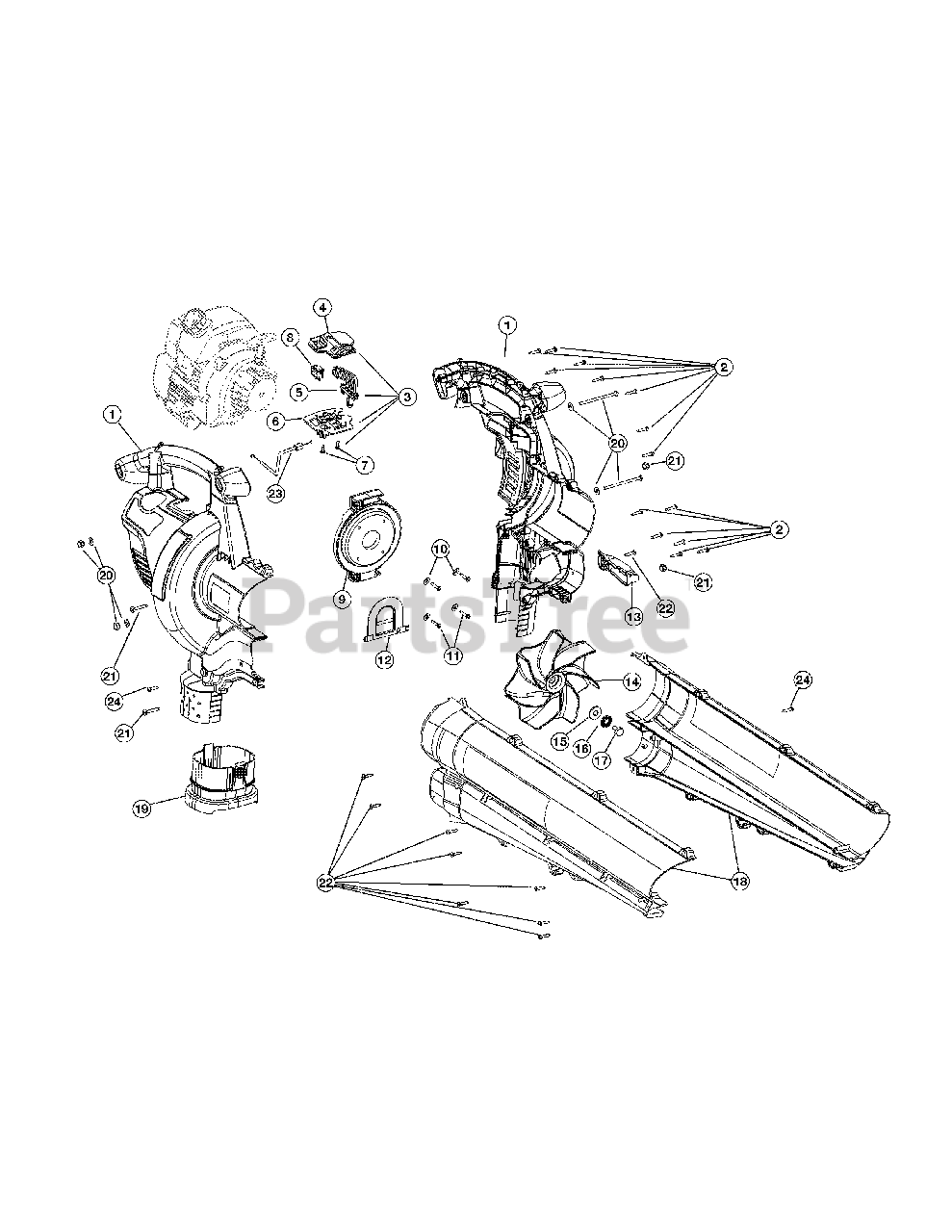

YMGBV 3100 (41CSGBPG901) - Yard-Man Blower Vacuum General Assembly Parts Diagram

Blower Vacuum

General Assembly Parts Diagram

  • Title

1

MTD 753-04808

Engine Cover Assembly

Note: (Incl Ref No. 2)

$

$

Not available

2

MTD 710-04194

Cover Screw

$3.99

$

In Stock, Qty 20+

0

3

MTD 791-182419

Throttle Control Assembly
(Superseded to 753-05013A)

Note: (Incl Ref No. 4-7)

$

$

Not available

4

MTD 753-05013A

Upper Throttle Control Plate

$

$

Not available

5

MTD 791-00048

Throttle Control Lever

$10.99

$

Usually ships in 3-6 days

0

6

MTD 753-05013A

Lower Throttle Control Plate

$

$

Not available

7

MTD 791-182423

Screw, Plastic

$

$

Not available

8

MTD 791-182405

Rocker Switch Assembly

$9.99

$

In Stock, Qty 20+

0

9

MTD 753-04483

Engine Mounting Plate

Note: (Incl Ref No. 10 & 11)

$

$

Not available

10

MTD 791-182409

Washer

$4.49

$

In Stock, Qty 5

0

11

MTD 791-181903

Screw

$

$

Not available

12

MTD 791-182410

Mode Control Flapper

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-00050

Mode Control Lever

Note: (Incl Ref No. 22)

$

$

Not available

14

MTD 731-04275

Impeller Blade

$32.99

$

In Stock, Qty 5

0

15

MTD 736-04107

Washer

$4.49

$

In Stock, only 1 left!

0

16

MTD 736-04110A

Lock Washer

$4.99

$

Usually ships in 3-6 days

0

17

MTD 791-182414

Bolt

$4.49

$

Usually ships in 3-6 days

0

18

MTD 791-00051

Blower/Vac Tube Assembly

Note: (Incl Ref No. 22)

$57.99

$

Usually ships in 3-6 days

0

19

MTD 791-182417

Vacumm Bag Adapter

$17.99

$

Usually ships in 3-6 days

0

20

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

21

MTD 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

22

MTD 791-181482

Screw

$4.49

$

Usually ships in 3-6 days

0

23

MTD 791-00049

Throttle Cable

$

$

Not available

24

MTD 791-181345

Screw

$3.99

$

In Stock, Qty 18

0

MTD 791-612930

Cable Tie

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04465

Vacuum Bag Assembly

Note: Not shown (Incl Ref No.19, Vacuum Bag & Cable Tie)

$68.99

$

In Stock, only 2 left!

0

MTD 753-04325

Patio Head

Note: Not shown

$56.99

$

Usually ships in 3-6 days

0
