YP 110 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

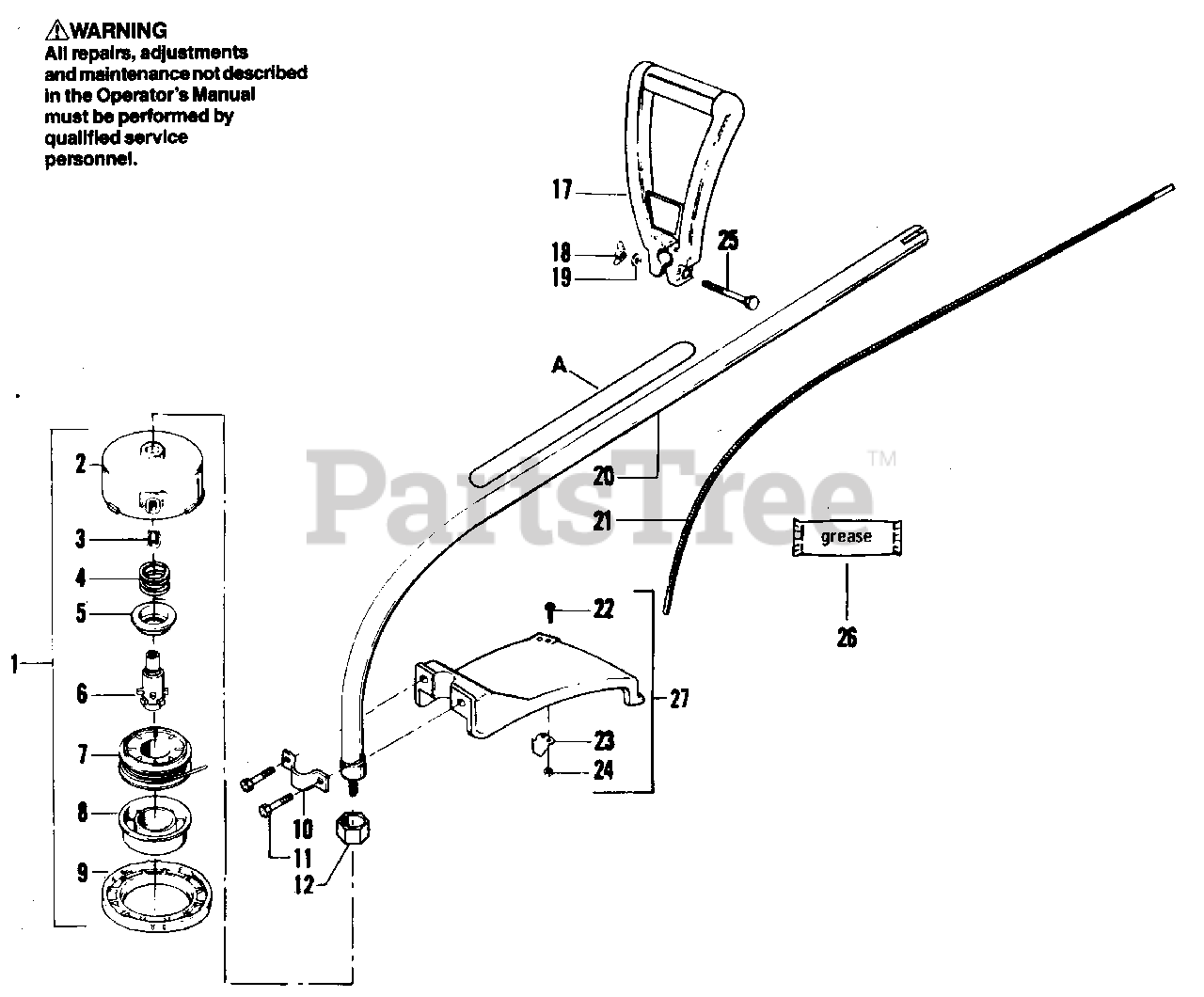

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530093894

Cutting Head Assembly (Incl. #2 - 9)

$19.99

$

Usually ships in 3-10 days

0

2

Poulan 530093896

Hub w/Line Saver
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

3

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530092068

Adaptor - Spring
(Superseded to 530328929)

$

$

Not available

6

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 952701523

Spool w/Line

$

$

Not available

8

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

9

Poulan 530092133

Cover

$

$

Not available

10

Poulan 530093653

Bracket - Shield

$3.99

$

In Stock, only 1 left!

0

11

Poulan 530092243

Screw, Shield - 1/4 - 10 x 1-1/8
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

12

Poulan 530093716

Dust Cup

$

$

Not available

17

Poulan 530010618

Assist Handle
(Superseded to 530069496)

$

$

Not available

18

Poulan 530091373

Wing Nut - 1/4 - 20

$4.99

$

In Stock, only 1 left!

0

19

Poulan 530092062

Washer - 1/4 Flat

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530093943

Drive Shaft Assembly

$

$

Not available

21

Poulan 530093935

Flex Shaft Assembly

$14.99

$

Usually ships in 3-10 days

0

22

Poulan 530015337

Screw - Line Limiter

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530093853

Line Limiter

$

$

Not available

24

Poulan 530015217

Nut - Line Limiter
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530015737

Screw

$

$

Not available

26

Poulan 530030102

Grease - Flex Drive Lube
(Superseded to 952708514)

$

$

Not available

27

Poulan 530069213

Shield Assembly (Incl. #11, 22, 23 & 24)

$

$

Not available

A

Poulan 530027430

Decal - Safety Label
(Superseded to 530029159)

$

$

Not available

Poulan 530066945

Operator's Manual

$6.49

$

Usually ships in 3-10 days

0
