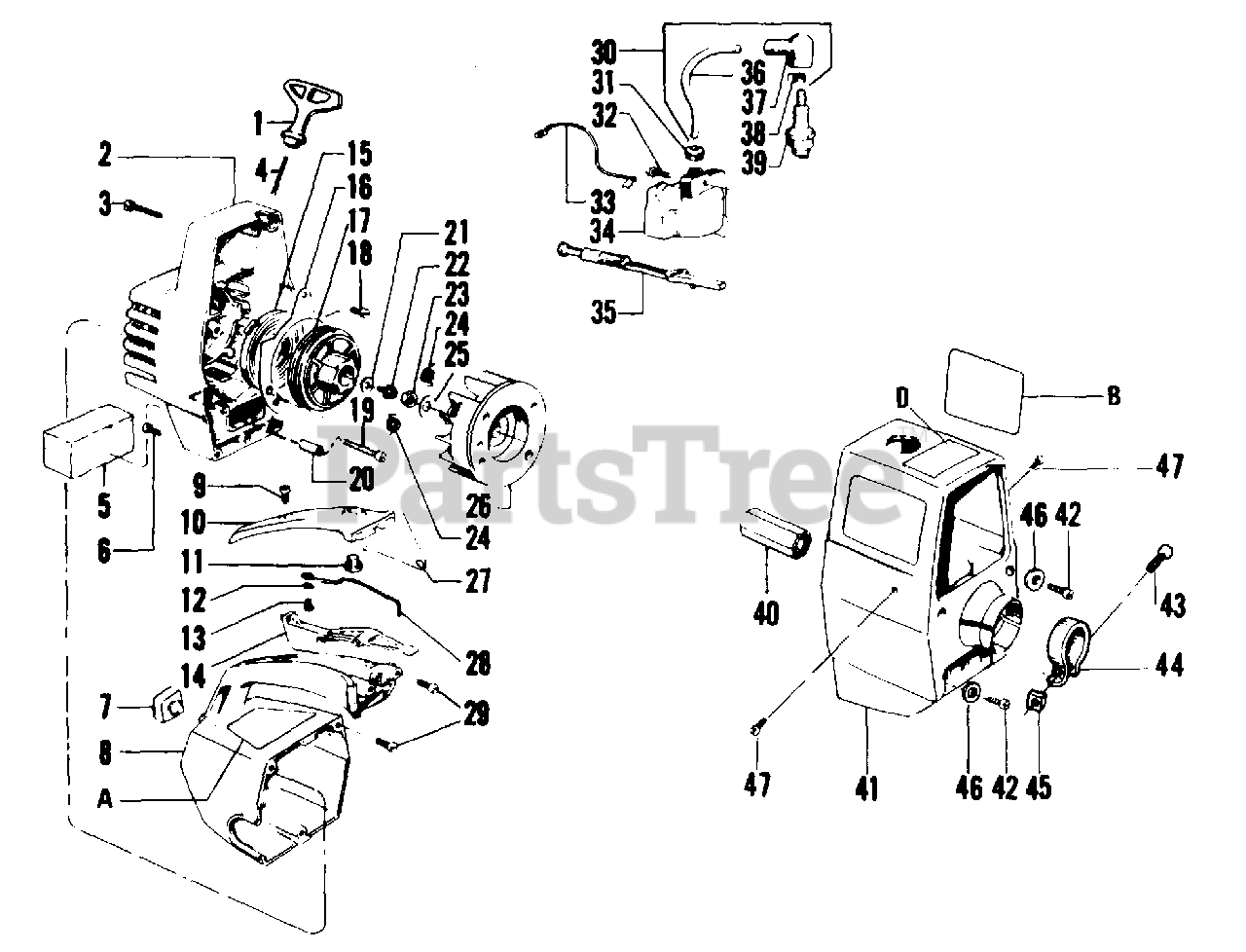

YP 110 - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 530026735

Starter - Handle
(Superseded to 530027569)

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530069178

Fan Housing Kit

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530015706

Screw - 10 - 24 x 1 - 1/2 - Sems Fan Housing - Top

$

$

Not available

4

Poulan 530069231

Rope Kit

$

$

Not available

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 530015582

Screw - 10 - 24 x 5/8 - Sems Fan Housing Bottom

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530024436

Bumper - Fuel Tank Housing

$

$

Not available

8

Poulan 530026199

Handle & Fuel Tank Housing

$18.99

$

Usually ships in 3-10 days

0

9

Poulan 530015247

Screw - 8 - 16 x 3/4 - Pan Hd. - Handle Cover

$

$

Not available

10

Poulan 530026202

Handle Cover

$

$

Not available

11

Poulan 530026679

Button - Kill Switch

$

$

Not available

12

Poulan 530015412

Washer - Kill Switch

$

$

Not available

13

Poulan 530015407

Screw - 8 - 16 x 3/8 - Pan Hd. - Kill Switch

$

$

Not available

14

Poulan 530024365

Trigger - Throttle

$

$

Not available

15

Poulan 530042067

Starter Recoil Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

16

Poulan 530026035

Air Baffle

$

$

Not available

17

Poulan 530026048

Starter Pulley

$

$

Not available

18

Poulan 530015544

Screw #10 x 3/8 - Pan Hd. - Air Baffle

Note: Standard Hardware, Purchase Locally. use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563.

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530015563

Screw - 10 - 24 x 1 - 3/16 - Plastite

Note: Standard Hardware, Purchase Locally. use P/N 15373-10-24xl/4-Fil.HD. instead of 13544, and P/N 15305 10-24xl-3/16 Fil. HD. instead of P/N 15563.

$

$

Not available

20

Poulan 530026122

Spacer - Air Baffle

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530015479

Screw - #10 x 3/4 - Hex Washer Hd. - Starter Pulley
(Superseded to 530071620)

$34.99

$

In Stock, Qty 9

0

23

Poulan 530626605

Nut - Flywheel

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

25

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530039114

Flywheel Assembly (Incl. #24)

$

$

Not available

27

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530024407

Spring - Kill Switch

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530015367

Screw - 10 - 14 x 3/4 - Pan Hd. - Fan Hsg. to Handle & Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

30

Poulan 502039103

High Tension Lead Ass'y (Incl. #36, 37 & 38)
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

31

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530015128

Screw - 8 - 32 x 3/4 - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530024158

Lead Wire - Switch

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530069181

Kit Module

$

$

Not available

35

Poulan 530024303

Knob- Choke

$

$

Not available

36

Poulan 530039082

High Tension Lead Wire

$

$

Not available

37

Poulan 530003934

Boot - Spark Plug

$

$

Not available

38

Poulan 530003933

Connector - Sprak Plug Lead
(Superseded to 507475326)

$

$

Not available

39

Poulan 530030077

Spark Plug

$

$

Not available

40

Poulan 530093925

Drive Adaptor

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 530027007

Shroud

$25.99

$

Usually ships in 3-10 days

0

42

Poulan 530015163

Screw - 10 - 24 x 7/8 - Fil. Hd. - Shroud

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 530015609

Bolt - Clamp - 1/4 - 20 x 9/16

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 530026560

Clamp

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 530015610

Nut - 1/4 - 20

$0.99

$

Usually ships in 3-10 days

0

46

Poulan 530015274

Washer - Shroud

$0.99

$

Usually ships in 3-10 days

0

47

Poulan 530015590

Screw - 10 - 24 x 5/8 Bind. Hd.

$

$

Not available

A

Poulan 530027012

Type 1

$

$

Not available

A

Poulan 530027014

Type 2

$

$

Not available

B

Poulan 530027008

(Right)

$

$

Not available

B

Poulan 530027009

(Left)

$

$

Not available

B

Poulan 530027147

(Top)

$

$

Not available
