YP 115 - Weed Eater String Trimmer CARBURETOR WA-198 BREAKDOWN Parts Diagram

String Trimmer

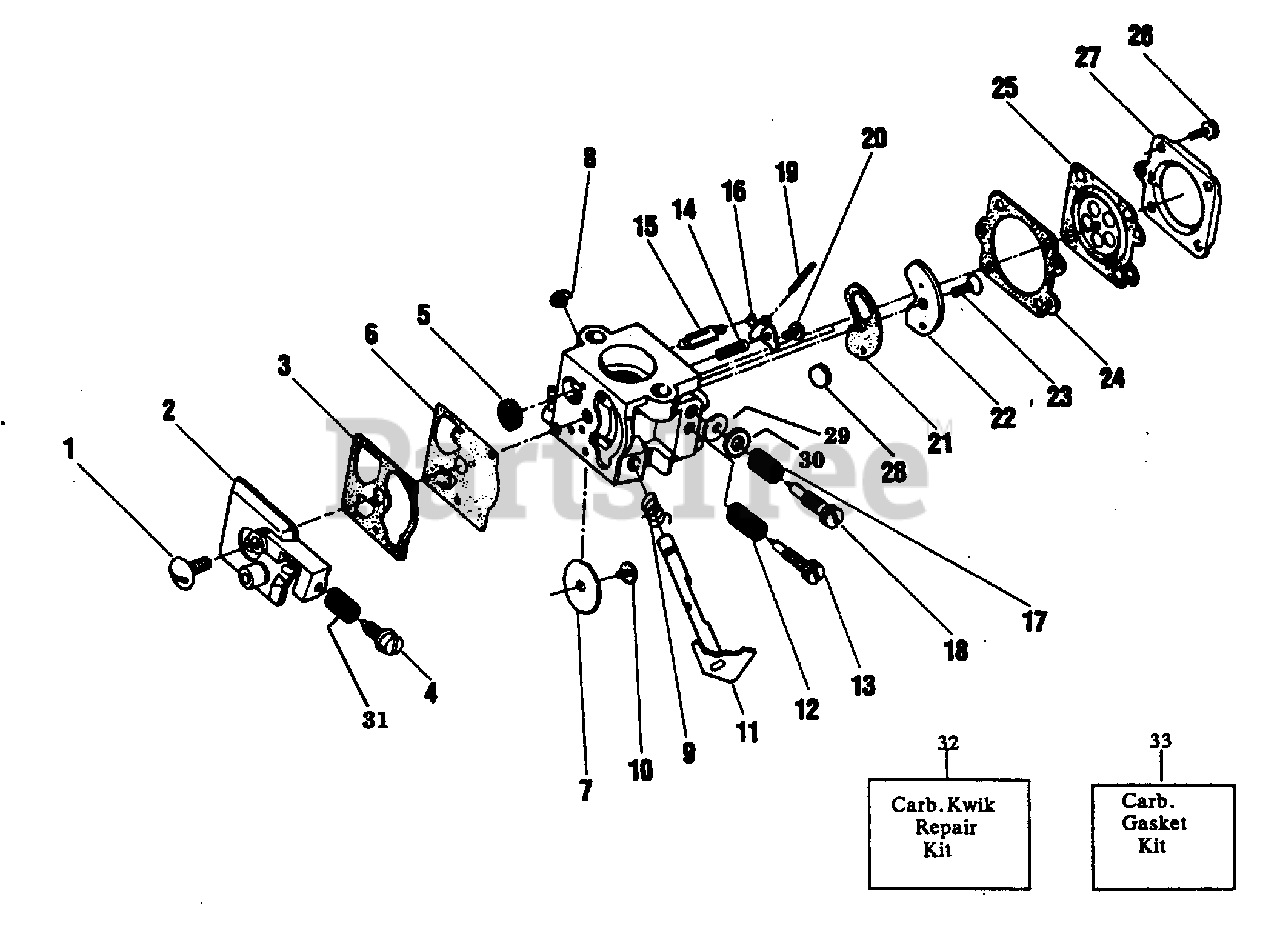

CARBURETOR WA-198 BREAKDOWN Parts Diagram

  • Title

1

Poulan 530035017

Screw-Pump Cover

Note: Included in Carburetor Kwik Repair Kit.

$0.99

$

Usually ships in 3-10 days

0

2

Poulan 530035191

Pump Cover Ass'y. (Inc.4)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530035164

Gasket-Pump
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

4

Poulan 530035203

Screw-Idle Adjustment-

$8.99

$

Usually ships in 3-10 days

0

5

Poulan 530035178

Screen-Inlet

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530035166

Diaphragm-Pump
(Superseded to 504130807)

$6.49

$

In Stock, Qty 10

0

7

Poulan 530035254

Valve-Throttle

$

$

Not available

8

Poulan 530035007

Clip-Throttle Shaft

$

$

Not available

9

Poulan 530035138

Spring-Throttle Return

$

$

Not available

10

Poulan 530035015

Screw-Throttle Valve

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

11

Poulan 530035132

Shaft Ass'y.-Throttle

$

$

Not available

14

Poulan 530035139

Spring-Metering Lever
(Superseded to 530035188)

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 11

0

15

Poulan 530035106

Valve-Inlet Needle
(Superseded to 503117001)

Note: Included in Carburetor Kwik Repair Kit.

$11.99

$

In Stock, Qty 11

0

16

Poulan 530035031

Lever-Metering
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

17

Poulan 530035214

Spring-Hi Speed Needle
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530035212

Needle-High Speed

$

$

Not available

19

Poulan 530035028

Pin-Metering Lever
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$3.49

$

In Stock, only 3 left!

0

20

Poulan 530035016

Screw-Metering Lever Pin

$3.49

$

In Stock, Qty 6

0

21

Poulan 530035211

Gasket-Circuit Plate

$

$

Not available

22

Poulan 530035161

Plate-Circuit

$37.99

$

Usually ships in 3-10 days

0

23

Poulan 530035137

Screw-Circuit Plate

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

24

Poulan 530035151

Gasket-Metering Diaphragm

$3.99

$

In Stock, Qty 8

0

25

Poulan 530035014

Diaphragm Ass'y.-Metering
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

26

Poulan 530035021

Screw Ass'y.-Metering Cover & Throttle Shaft Clip

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530035003

Cover-Metering Diaphragm

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530035218

"O" Ring Mixture

$

$

Not available

30

Poulan 530035217

Mixture Washer

$

$

Not available

31

Poulan 530035208

Spring-Idle Speed
(Superseded to 501667801)

$

$

Not available

32

Poulan 530035220

Kit-Carb. Kwik Repair

$

$

Not available

33

Poulan 530035219

Kit-Carb. Gasket/Diaphragm
(Superseded to 530069844)

$18.99

$

Usually ships in 3-10 days

0
