YP 115 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

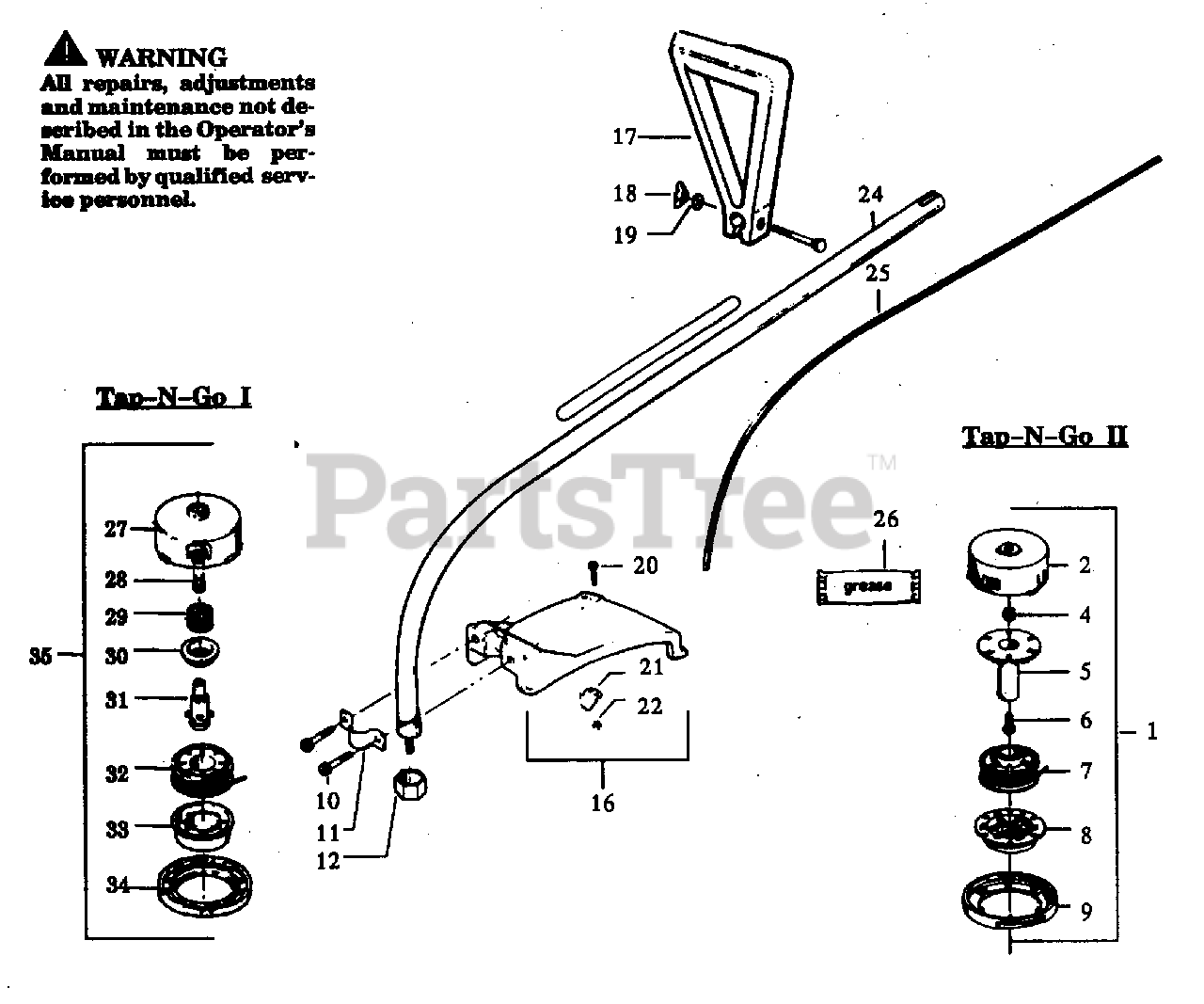

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 952701604

Cutting Head Ass'y.(Inc.2,4 & 5-9) See Service Ref. 1
(Superseded to 952701618)

$

$

Not available

2

Poulan 530094562

Hub w/Line Saver

$

$

Not available

4

Poulan 530094525

Spring
(Superseded to 530094956)

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 530094523

Spool Post
(Superseded to 530069312)

$

$

Not available

6

Poulan 530015542

Screw

$

$

Not available

7

Poulan 952701606

Spool w/Line
(Superseded to 952708510)

$

$

Not available

8

Poulan 530094522

Release Button

$

$

Not available

9

Poulan 530094521

Cover

$10.99

$

Usually ships in 3-10 days

0

10

Poulan 530092243

Screw
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

11

Poulan 530093653

Bracket

$3.99

$

In Stock, only 1 left!

0

12

Poulan 530094543

Dust Cup

$

$

Not available

16

Poulan 530069249

Shield Kit Ass'y. (Inc.10,20,21,22)

$

$

Not available

17

Poulan 530010618

Assist Handle
(Superseded to 530069496)

$

$

Not available

18

Poulan 530091373

Wing Nut

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

20

Poulan 530015337

Screw

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

22

Poulan 530015653

Nut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015737

Screw

$

$

Not available

24

Poulan 530094593

Drive Shaft Hsg.

$

$

Not available

25

Poulan 530094590

Drive Shaft

$14.99

$

Usually ships in 3-10 days

0

26

Poulan 530030102

Shaft Lubrication
(Superseded to 952708514)

$

$

Not available

27

Poulan 530093896

Hub w/Line Saver
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

28

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530092068

Spring Adaptor
(Superseded to 530328929)

$

$

Not available

31

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

32

Poulan 952701523

Spool w/Line

$

$

Not available

33

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

34

Poulan 530092133

Cover

$

$

Not available

35

Poulan 530093894

Cutting Head Assy.(Inc.27-34)See Service Ref. 1

$19.99

$

Usually ships in 3-10 days

0

A

Poulan 530027430

Safety Label Decal
(Superseded to 530029159)

$

$

Not available

Poulan 530067090

Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530061019

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
