YP 130 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

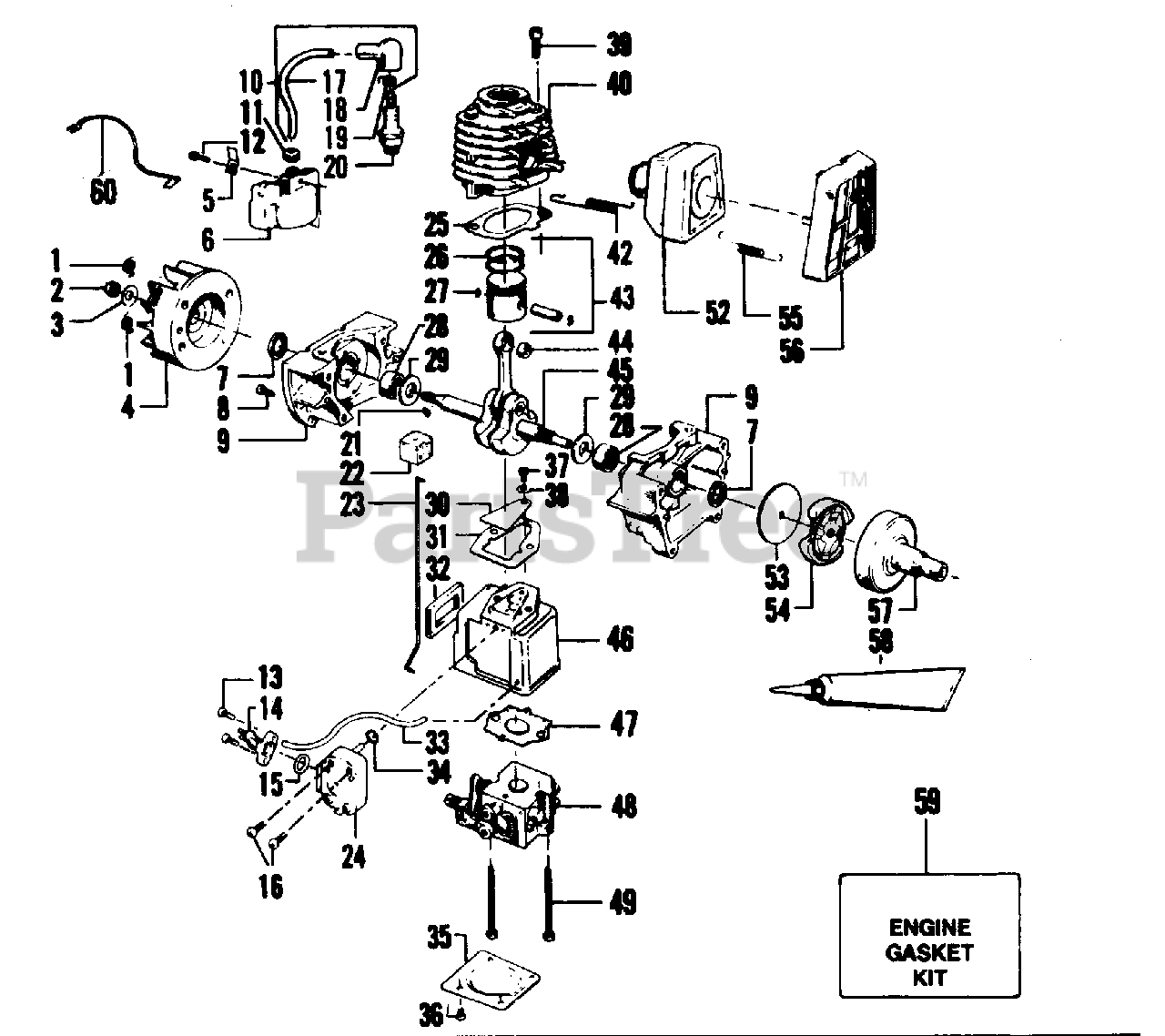

POWER UNIT Parts Diagram

  • Title

1

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

2

Poulan 530626605

Nut - Flywheel

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530039114

Flywheel Assembly (Incl. #1)

$

$

Not available

5

Poulan 530025995

Tab 45ø Electrical

$0.99

$

Usually ships in 3-10 days

0

6

Poulan 530069181

Kit - Ignition Module

$

$

Not available

7

Poulan 530019059

Seal - Crankcase

Note: Included in Engine Gasket Kit.

$

$

Not available

8

Poulan 530015369

Screw - Crankcase - 10 - 24 x 5/8

$

$

Not available

9

Poulan 530010757

Crankcase Assembly (Incl. #7 & 28)

$

$

Not available

10

Poulan 502039103

High Tension - Lead Assembly (Incl. #17, 18 & 19)
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

11

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530015128

Screw - 8 - 32 x 3/4 - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530015235

Screw - 8 - 16 x 9/16

$

$

Not available

14

Poulan 530010677

Cap Assembly - Accumulator (Incl. Cap, Screen & "O" Ring))

$

$

Not available

15

Poulan 530019128

O - Ring - Accumulator Chamber

$

$

Not available

16

Poulan 530015565

Screw - 8 - 8 x 1" - Accumulator

$

$

Not available

17

Poulan 530039082

High Tension Lead Wire

$

$

Not available

18

Poulan 530003934

Boot - Spark Plug

$

$

Not available

19

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

20

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

21

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530023373

Boot - Throttle

$

$

Not available

23

Poulan 530026177

Throttle Wire (Red)

$

$

Not available

24

Poulan 530010651

Accumulator Assembly (Incl. # 14, 15 & 34)

$

$

Not available

25

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

26

Poulan 530026681

Ring - Piston

$

$

Not available

27

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 2 left!

0

28

Poulan 530032029

Bearing - Crankcase

$10.99

$

In Stock, only 4 left!

0

29

Poulan 530015351

Washer - Thrust - Crankcase

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530024438

Reed Valve

$

$

Not available

31

Poulan 530019108

Gasket - Carburetor Case to Crankcase

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530019105

Seal - Carburetor Case

Note: Included in Engine Gasket Kit.

$

$

Not available

33

Poulan 530069238

Line Kit

$

$

Not available

34

Poulan 530019131

O - Ring (Orifice)

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 530026047

Cover - Carburetor Case

$

$

Not available

36

Poulan 530015235

Screw - 8 - 18 x 9/16 - Pan Hd. Carburetor Case Cover

$

$

Not available

37

Poulan 530015241

Screw - 6 - 19 x 5/15 - Pan Hd. - Reed Valve

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530023367

Washer - Reed Valve Screw

$

$

Not available

39

Poulan 530015239

Screw - 1/4 - 20 x 3/4 - Hex Socket Hd. Cylinder

$2.49

$

Usually ships in 3-10 days

0

40

Poulan 530012112

Cylinder

$

$

Not available

42

Poulan 530024903

Spring - Muffler Detachment
(Superseded to 530036409)

$

$

Not available

43

Poulan 502069203

Piston Kit (Incl. #26, 27 & Pin)
(Superseded to 502069303)

$

$

Not available

44

Poulan 530032057

YP130 Type 1

$

$

Not available

44

Poulan 530032092

YP130A Type 2 :YP130A - Type 1

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 530026675

YP130 Type 1

$121.99

$

Usually ships in 3-10 days

0

45

Poulan 530010844

YP130A Type 2 ;YP130A - Type 1

$

$

Not available

46

Poulan 530026046

Carburetor Housing

$

$

Not available

47

Poulan 530019115

Gasket - Carburetor

Note: Included in Engine Gasket Kit.

$

$

Not available

48

Poulan 530035183

Carburetor (See Carb.Breakdown for Ass'y)

$

$

Not available

49

Poulan 530015566

Screw - 10 - 24 x 2-1/4" - Fil. Hd. - Carburetor

$1.49

$

Usually ships in 3-10 days

0

52

Poulan 530069244

YP130A

$

$

Not available

53

Poulan 530069196

Kit - Clutch Washer - 3/8 - Flat - Inner

$

$

Not available

54

Poulan 530069194

Clutch Assembly Kit

$21.99

$

Usually ships in 3-10 days

0

55

Poulan 530024932

Spring - Muffler Guard

$

$

Not available

56

Poulan 530024855

Guard - Muffler

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 530010840

Coupling & Bearing Assembly

$

$

Not available

58

Poulan 530030054

Sealant - Crankcase (Not Supplied with Unit)

$

$

Not available

59

Poulan 530069219

Engine Gasket Kit

$

$

Not available

60

Poulan 530024158

Lead Wire - Kill Switch

$6.49

$

Usually ships in 3-10 days

0
