YP 145 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

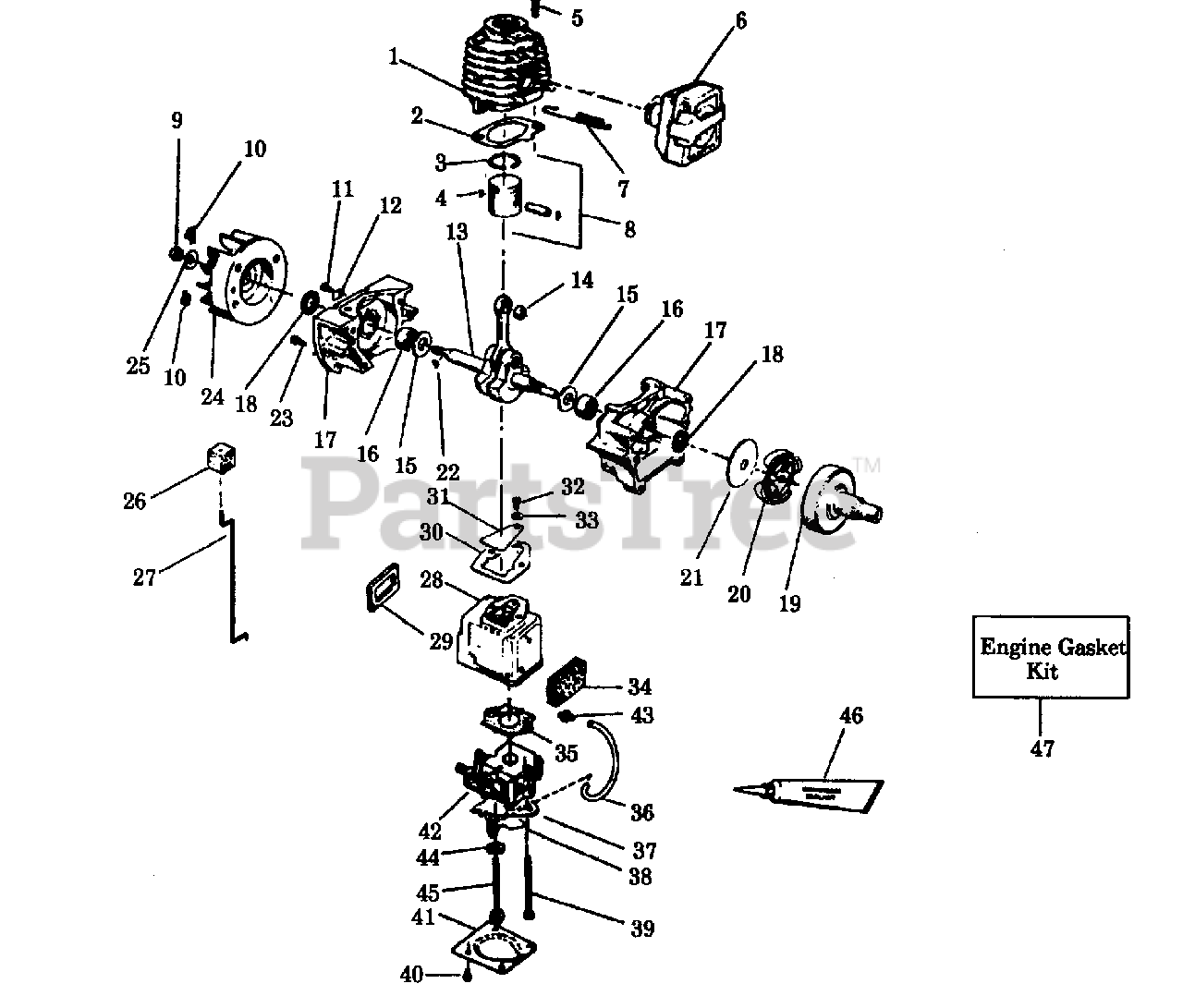

POWER UNIT Parts Diagram

  • Title

1

Poulan 530012168

T1
(Superseded to 530012349)

$

$

Not available

1

Poulan 530012190

T2

$

$

Not available

2

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

3

Poulan 530026413

T1

$

$

Not available

3

Poulan 530027369

T2

$

$

Not available

4

Poulan 530015162

Wrist Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530069244

Muffler Ass'y.

$

$

Not available

7

Poulan 530026621

Muffler Attach. Spring

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530010843

T1

$

$

Not available

8

Poulan 530069240

T2

$

$

Not available

9

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530042059

Starter Dog Spring
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

11

Poulan 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530024651

Choke Wire Clamp

$

$

Not available

13

Poulan 530010849

T1

$

$

Not available

13

Poulan 530010844

T2

$

$

Not available

14

Poulan 530032057

Wrist Pin Bearing

$

$

Not available

15

Poulan 530015351

Washer

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530032029

Bearing

$10.99

$

In Stock, only 4 left!

0

17

Poulan 530010757

Crankcase Ass'y. (Inc.16,18 & 23)

$

$

Not available

18

Poulan 530019059

Crankcase Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

19

Poulan 530010902

Drum & Coupling Ass'y.

$

$

Not available

20

Poulan 530069195

Clutch Ass'y. Kit

Note: (Incl. Washer)

$

$

Not available

21

Poulan 530069196

Clutch Washer Kit

$

$

Not available

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015369

Screw

$

$

Not available

24

Poulan 530039114

Flywheel Ass'y.

Note: (Inc.10)

$

$

Not available

25

Poulan 530015127

Washer

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530023373

Choke Wire Boot

Note: Included in Engine Gasket Kit.

$

$

Not available

27

Poulan 530026236

Choke Wire

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 530010884

Carb. Hsg.

$12.99

$

Usually ships in 3-10 days

0

29

Poulan 530019105

Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

30

Poulan 530019108

Gasket

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530024438

Reed Valve

$

$

Not available

32

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530023367

Washer

$

$

Not available

34

Poulan 530019135

Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

35

Poulan 530019157

Gasket

Note: Included in Engine Gasket Kit.

$

$

Not available

36

Poulan 530069238

Fuel Line

$

$

Not available

37

Poulan 530026237

Guide Plate

$

$

Not available

38

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530015379

Screw

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530015235

Screw

$

$

Not available

41

Poulan 530026029

Carb. Case Cover

$

$

Not available

42

Poulan 530035190

Carburetor-WA-149

$

$

Not available

43

Poulan 530026981

Fuel Line Fitting

$6.49

$

In Stock, Qty 9

0

44

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

45

Poulan 530015404

Screw

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530030054

Crankcase Sealant

Note: (Not supplied with unit)

$

$

Not available

47

Poulan 530069219

Engine Gasket Kit

$

$

Not available
