YP 150 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

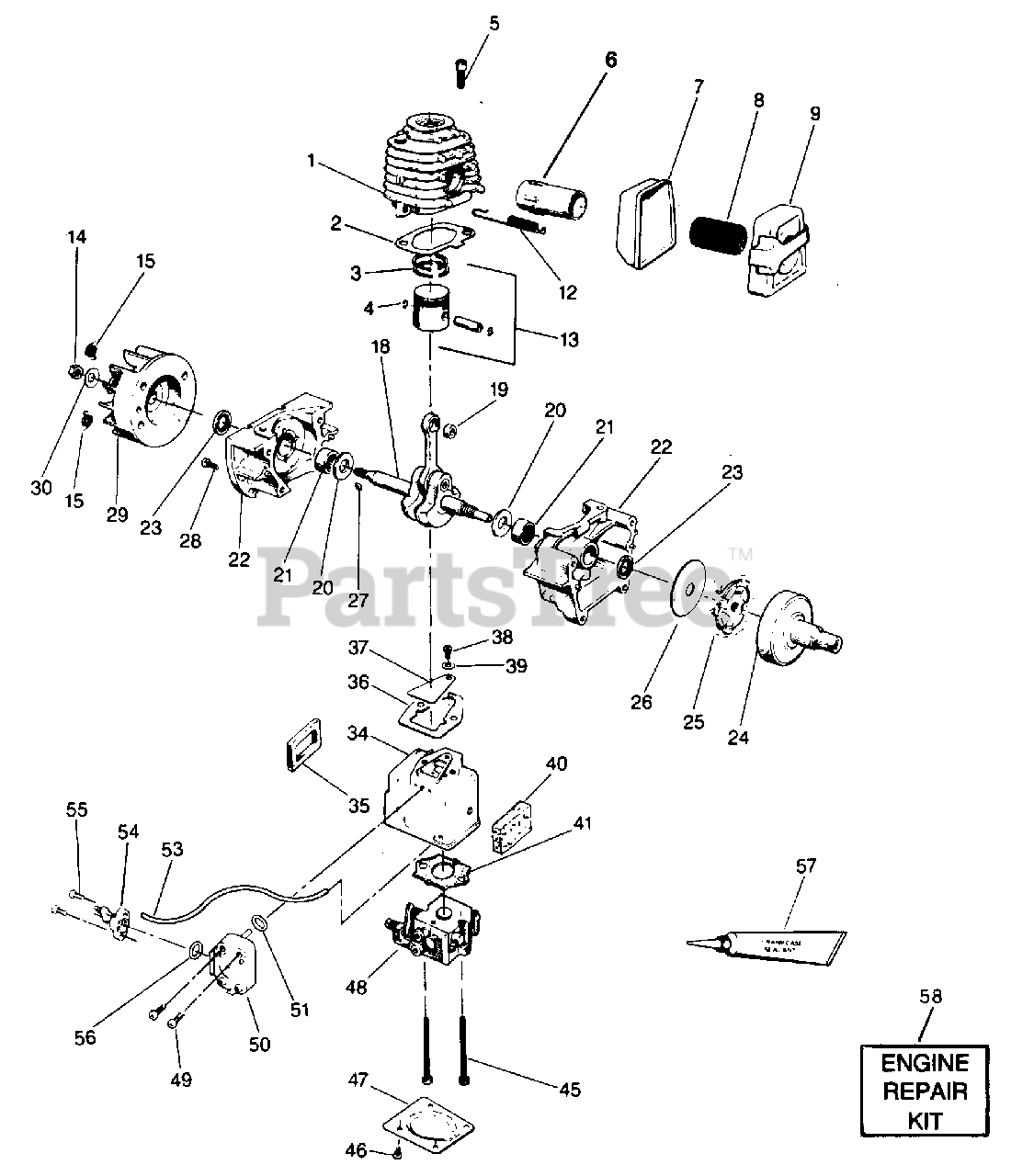

POWER UNIT Parts Diagram

  • Title

1

Poulan 530012192

Cylinder - See Service Ref. 2.
(Superseded to 530012252)

$24.99

$

Usually ships in 3-10 days

0

2

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

$

$

Not available

3

Poulan 530026681

Ring - Piston - See Service Ref. 1.

$

$

Not available

4

Poulan 530015162

Retainer - Wrist Pin (PRO150 Only)

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530015239

Screw - #1/4 - 20 x 3/4" Hex Soc. Hd. - Cylinder

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530026949

Diffuser - Muffler

$

$

Not available

7

Poulan 530026619

Body - Muffler

$

$

Not available

8

Poulan 530024364

Screen - Spark Arresting

$

$

Not available

9

Poulan 530022286

Cover - Muffler

$

$

Not available

12

Poulan 530026621

Spring - Muffler Attachment

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 502069203

Piston Kit (Inc.3,4,Pin) See Service Ref. 1 & 2.
(Superseded to 502069303)

$

$

Not available

14

Poulan 530626605

Nut - Flywheel

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

18

Poulan 530010844

Ass'y., Crankshaft & Rod - See Service Ref. 2

$

$

Not available

19

Poulan 530032092

Bearing - Wrist Pin - See Service Ref. 2.

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 530015351

Washer - Thrust - Crankcase

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530032058

Bearing - Crankcase
(Superseded to 530032029)

$10.99

$

In Stock, only 4 left!

0

22

Poulan 530010757

Crankcase Ass'y. (Inc.21, 23 & Qty. 4 of 28)

$

$

Not available

23

Poulan 530019059

Seal - Crankcase

$

$

Not available

24

Poulan 530010803

Drum & Coupling Assembly

$25.99

$

Usually ships in 3-10 days

0

25

Poulan 530069195

Kit - Clutch Assembly (Incl. Clutch Washer)

$

$

Not available

26

Poulan 530069196

Kit - Clutch Washer

$

$

Not available

27

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015168

Screw - #10 - 24 x 5/8" Fil. Hd. Crankcase

$

$

Not available

29

Poulan 530039114

Flywheel Assembly (Inc.15)

$

$

Not available

30

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530010762

Ass'y. Carburetor Housing & Eyelet

$

$

Not available

35

Poulan 530019105

Seal - Carburetor Case

$

$

Not available

36

Poulan 530019108

Gasket-Carburetor Case to Crankcase

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530024438

Reed Valve

$

$

Not available

38

Poulan 530015241

Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530023367

Washer - Reed Valve Screw

$

$

Not available

40

Poulan 530019135

Seal - Carb. Case (Sponge)

$

$

Not available

41

Poulan 530019157

Gasket - Carburetor

$

$

Not available

45

Poulan 530015566

Screw - #10 - 24 x 2-1/4" - Fil. Hd. - Carburetor

$1.49

$

Usually ships in 3-10 days

0

46

Poulan 530015235

Screw - #8 - 18 x 9/16" - Pan. Hd. - Carburetor Case Cover

$

$

Not available

47

Poulan 530026047

Cover - Carburetor Case

$

$

Not available

48

Poulan 530035190

Carburetor - WA - 149 - Cable

$

$

Not available

49

Poulan 530015565

Screw - #8 - 18 x 1",- Accumulator

$

$

Not available

50

Poulan 530010651

Accumulator Assembly (Inc.51 & 54)

$

$

Not available

51

Poulan 530019131

O-Ring (Orifice)

$2.49

$

Usually ships in 3-10 days

0

53

Poulan 530021055

Fuel Line - Carburetor

$2.49

$

Usually ships in 3-10 days

0

54

Poulan 530010677

Cap Assembly - Accumulator (Inc.56)

$

$

Not available

55

Poulan 530015235

Screw - #8 - 16 x 9/16"

$

$

Not available

56

Poulan 530019128

O-Ring (Accumulator Chamber)

$

$

Not available

57

Poulan 530030054

Sealant - Crankcase (Not supplied with unit)

$

$

Not available
