YP 160 - Weed Eater String Trimmer STARTER & SHROUDS Parts Diagram

String Trimmer

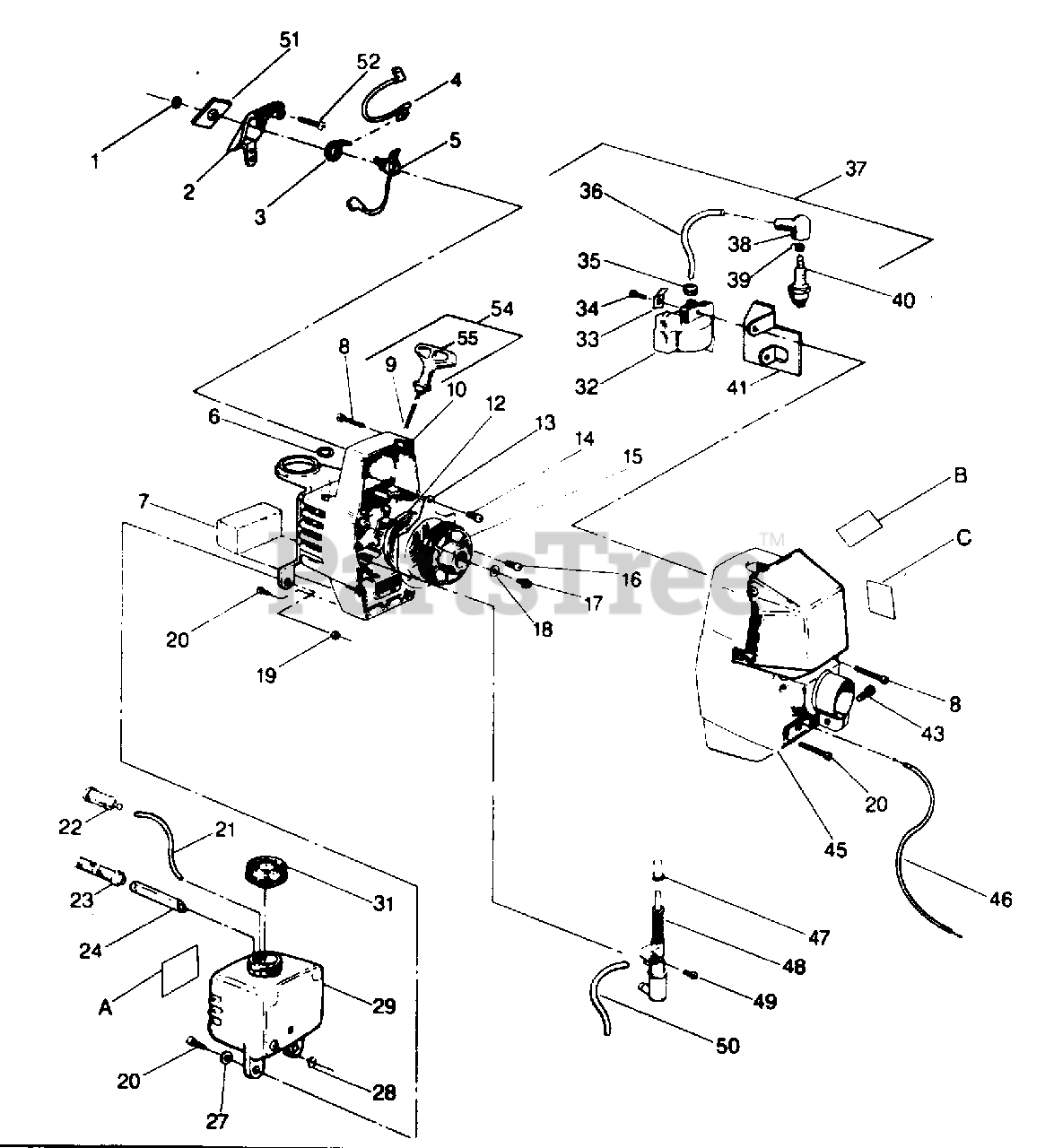

STARTER & SHROUDS Parts Diagram

  • Title

1

Poulan 530023575

Nut-Grounding Switch
(Superseded to 530002582)

$

$

Not available

2

Poulan 530026997

Housing - Switch

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530024569

Washer - Grounding Switch

$

$

Not available

4

Poulan 530039122

Wire - Lead - Grounding Switch

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530069182

Kit - Grounding Switch (incl. #34)

$

$

Not available

6

Poulan 530026118

Bearing - Nyliner (Fan Housing)

$

$

Not available

7

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 530015376

Screw - #10 - 24 x 1-1/2" Fil. Hd. - Fan Housing Top

$

$

Not available

9

Poulan 530069231

Rope Kit

$

$

Not available

10

Poulan 530069236

Fan Housing Ass'y

$

$

Not available

12

Poulan 530042067

Spring Starter Pulley
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

13

Poulan 530026035

Air Baffle

$

$

Not available

14

Poulan 530015373

Screw - 10 - 24 x 1/4 Pan. Hd. - Air Baffle

$

$

Not available

15

Poulan 530026048

Starter Pulley

$

$

Not available

16

Poulan 530015596

Screw - #10 - 24 x 7/16" - Air Baffle

$

$

Not available

17

Poulan 530015036

Screw - #10 - 24 x 1/2" - Starter Pulley
(Superseded to 530016141)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530015123

Washer - #10 - Starter Pulley Screw

$4.99

$

In Stock, only 4 left!

0

19

Poulan 530001543

Nut - #10 - 24 - Fuel Tank Bracket

$

$

Not available

20

Poulan 530015168

Screw - #10 - 24 x 5/8" Fil. Hd. Housing Bottom

$

$

Not available

21

Poulan 530069247

Line Kit

$6.49

$

In Stock, Qty 20+

0

22

Poulan 530026931

Previous Style

$

$

Not available

22

Poulan 530010897

Current Style
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

23

Poulan 530026109

Filter - Fuel (Inlet Line)

$

$

Not available

24

Poulan 530021052

Line - Fuel Inlet

$

$

Not available

27

Poulan 530015158

Washer - Flat - Fuel Tank Bracket
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

28

Poulan 530026178

Clip - Retainer - Inlet Line - Fuel Tank

$

$

Not available

29

Poulan 530010761

Fuel Tank Ass'y (Incl. #21-24 & 31)

$

$

Not available

31

Poulan 530010729

Fuel Cap Assembly
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

32

Poulan 530069181

Kit Ignition Module

$

$

Not available

33

Poulan 530025995

Electrical Tab

$0.99

$

Usually ships in 3-10 days

0

34

Poulan 530015128

Screw - #8 - 32 x 3/4" - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530039082

High Tension Lead Wire

$

$

Not available

37

Poulan 502039103

BEVEL GEAR COMPLETE
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

Poulan 530039103

HIGH TENSION LEAD NLA

$

$

Not available

38

Poulan 530003934

Boot - Spark Plug

$

$

Not available

39

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

40

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

41

Poulan 530026658

Deflector - Air

$

$

Not available

43

Poulan 530093802

BOLT

$

$

Not available

Poulan 506093802

HAND GUARD

$

$

Not available

45

Poulan 530010763

Ass'y - Shroud/Heat Shield

$

$

Not available

46

Poulan 530093959

Throttle Cable

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 530026032

Injector Button

$

$

Not available

48

Poulan 530010738

Pump Assembly (incl. #50)

$

$

Not available

49

Poulan 530015305

Screw - #10 - 14 x 1-3/16" - Air Baffle-Pump Mounting

$1.99

$

Usually ships in 3-10 days

0

50

Poulan 530021053

Line-Pump to Accumulator

$

$

Not available

51

Poulan 530026741

Plate - Indicating Switch

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 530015598

Screw - #10 - 17 x 3/8" - Switch Plate

$

$

Not available

54

Poulan 530026792

Ass'y - Rope & Handle

$

$

Not available

55

Poulan 530026735

Starter Handle
(Superseded to 530027569)

$6.49

$

In Stock, only 2 left!

0

A

Poulan 530027049

Type 1 & 2

$

$

Not available

A

Poulan 530027150

Type 3

$

$

Not available

B

Poulan 530027072

Type 1

$

$

Not available

B

Poulan 530027263

Type 2

$

$

Not available

B

Poulan 530027382

Type 3

$

$

Not available

C

Poulan 530027048

Decal - Shroud (Left)

$

$

Not available
