YP 17 - Weed Eater String Trimmer TRIMMER ASSEMBLY Parts Diagram

String Trimmer

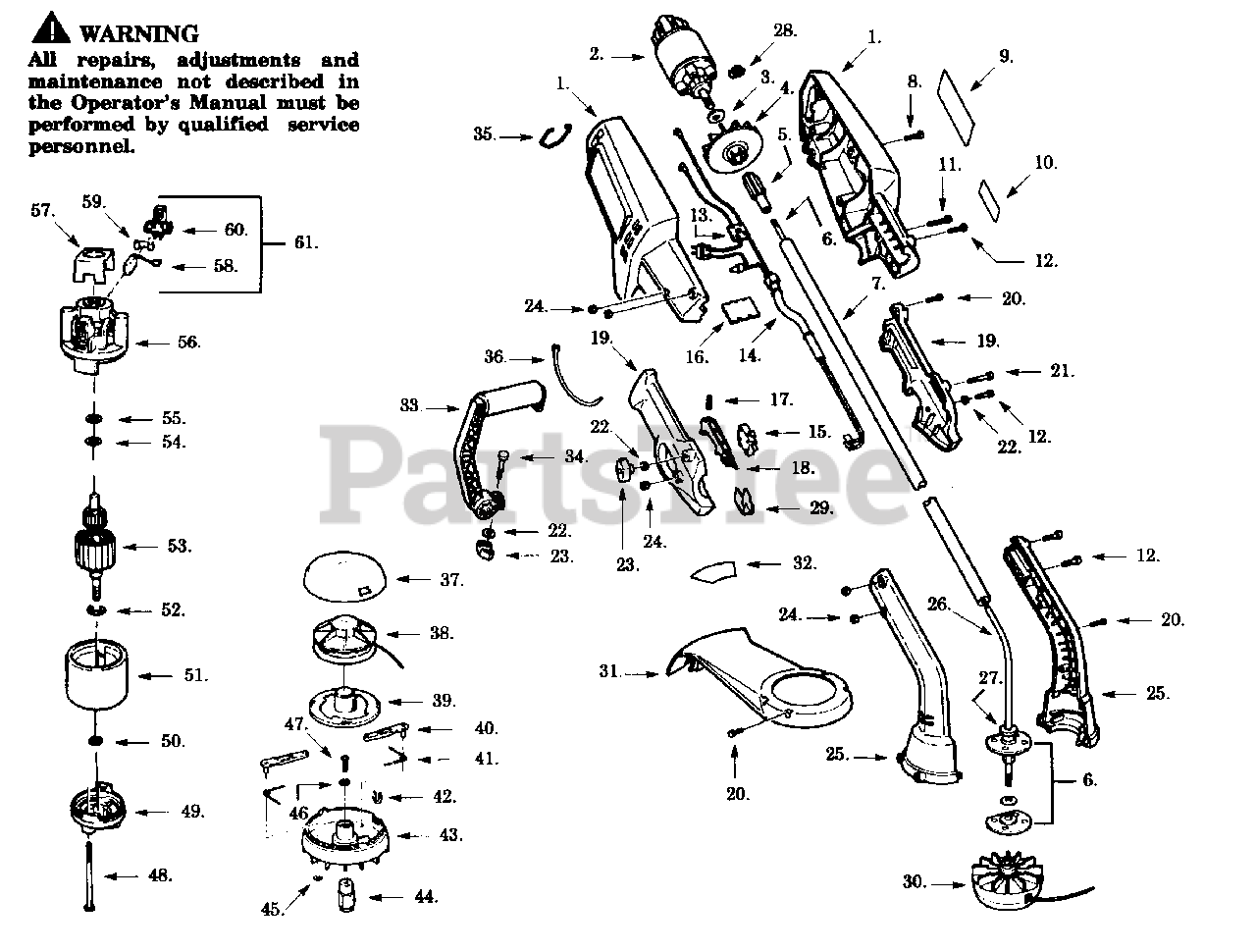

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534500117

Motor Hsg. Set

$24.99

$

Usually ships in 3-10 days

0

2

Poulan 534935801

Motor Ass'y.

$

$

Not available

3

Poulan 534494601

Washer

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534526802

Fan

$

$

Not available

5

Poulan 534900825

Shaft Adapter

$

$

Not available

6

Poulan 534100711

Flex Shaft/Bearing Ass'y. Kit

$

$

Not available

7

Poulan 534904001

Tube Ass'y.

$21.99

$

Usually ships in 3-10 days

0

8

Poulan 534790300

Screw

$

$

Not available

9

Poulan 530400664

Warning Label

$

$

Not available

10

Poulan 530400665

Motor Hsg. Label (Not a serviceable part)

$

$

Not available

11

Poulan 534799500

Screw

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 534829600

Screw

$

$

Not available

13

Poulan 534336600

P.C. Bridge

$

$

Not available

14

Poulan 534904702

Harness Ass'y.

Note: (Incl. 13 & 15)

$34.99

$

Usually ships in 3-10 days

0

15

Poulan 534982000

Switch

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 534805300

Wire Mount Board

$

$

Not available

17

Poulan 534790700

Trigger Spring

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534904904

Trigger

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534500118

Trigger Hsg. Set

$10.99

$

Usually ships in 3-10 days

0

20

Poulan 534790301

Screw

$

$

Not available

21

Poulan 534903100

Screw

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 534828701

Washer

$

$

Not available

23

Poulan 530347898

Knob

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

25

Poulan 534500119

Spindle Hsg. Set

$10.99

$

Usually ships in 3-10 days

0

26

Poulan 534788905

Tubing Sleeve

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 534636002

Felt Washer

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 534246702

Retaining Ring

$

$

Not available

29

Poulan 534982200

Switch Insulator

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534907305

Cutting Head Ass'y.

$

$

Not available

31

Poulan 534905501

Guard Ass'y.

$

$

Not available

32

Poulan 534916500

Guard Label (Not a serviceable part)

$

$

Not available

33

Poulan 534914801

Assist Handle

$9.99

$

Usually ships in 3-10 days

0

34

Poulan 534352400

Screw

$2.49

$

In Stock, only 1 left!

0

35

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534134706

Tie Strap

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 534036644

Cover

$

$

Not available

38

Poulan 534907903

Spool w/Line

$

$

Not available

39

Poulan 534014475

Cam

$

$

Not available

40

Poulan 534899200

Arm

$

$

Not available

41

Poulan 534908501

Spring

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 534900200

Line Shield

$

$

Not available

43

Poulan 534014477

Housing Head

$

$

Not available

44

Poulan 534900301

Drive Adaptor

$8.99

$

Usually ships in 3-10 days

0

45

Poulan 534400701

Push Nut

$2.49

$

Usually ships in 3-10 days

0

46

Poulan 534908700

Washer

$

$

Not available

47

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 534228700

Screw

$

$

Not available

49

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

50

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

52

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

53

Poulan 534944001

Armature Ass'y.

$

$

Not available

54

Poulan 534228802

Washer

$

$

Not available

55

Poulan 534238903

Washer

$

$

Not available

56

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

57

Poulan 534226000

Insulator

$

$

Not available

58

Poulan 534227800

Brush

$

$

Not available

59

Poulan 534228000

Spring Brush

$

$

Not available

60

Poulan 534227700

Brush Holder

$

$

Not available

61

Poulan 534450400

Brush Holder Ass'y.

Note: (Incl. 58,59, & 60)

$

$

Not available

Poulan 530400663

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530400668

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530400667

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
