YP 200 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

String Trimmer

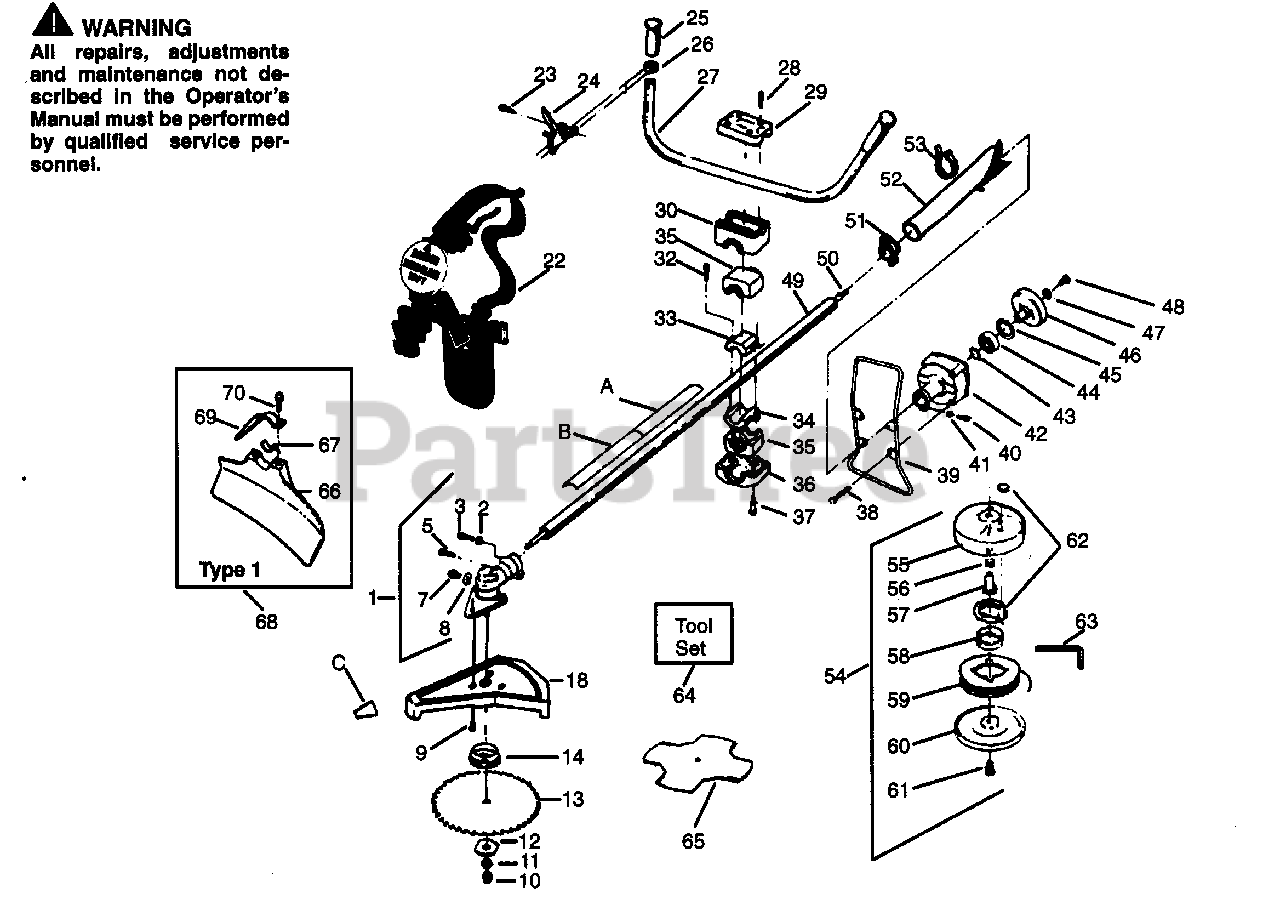

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530094141

Gear Case Ass'y.

$162.99

$

Usually ships in 3-10 days

0

2

Poulan 530094449

Lockwasher

$

$

Not available

3

Poulan 530094199

Screw

$1.49

$

Usually ships in 3-10 days

0

5

Poulan 530094201

Screw

$

$

Not available

7

Poulan 530094202

Screw

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530094203

Washer

$

$

Not available

9

Poulan 530094487

Screw

$

$

Not available

10

Poulan 530091596

Nut

$

$

Not available

11

Poulan 530091595

Nut

$

$

Not available

12

Poulan 530094151

Lower Adaptor

$24.99

$

In Stock, only 1 left!

0

13

Poulan 952701547

Brush Blade-10"

$

$

Not available

14

Poulan 530094150

Upper Adaptor

$36.99

$

In Stock, only 1 left!

0

18

Poulan 530094496

Shield Ass'y. XR-200 & YP200 Type Il;PP200 Type 1

$

$

Not available

22

Poulan 530092117

Shoulder Strap

$

$

Not available

23

Poulan 530094204

Screw

$

$

Not available

24

Poulan 530093957

Throttle Control

$21.99

$

Usually ships in 3-10 days

0

25

Poulan 530094172

Handlebar Grip

$17.99

$

Usually ships in 3-10 days

0

26

Poulan 530094173

Throttle Collar

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 530093992

Handlebar Ass'y. (Inc. #25 & 26)

$

$

Not available

28

Poulan 530094169

Screw

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530094162

Handlebar Clamp

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 530094163

Handlebar Clamp

$

$

Not available

32

Poulan 530094170

Screw

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530094165

Metal Fitting

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530094166

Metal Fitting

$14.99

$

Usually ships in 3-10 days

0

35

Poulan 530094167

Isolator

$10.99

$

Usually ships in 3-10 days

0

36

Poulan 530094164

Handlebar Clamp

$

$

Not available

37

Poulan 530094168

Bolt

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 530093999

Bolt

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530093995

Wire Stand

$

$

Not available

40

Poulan 530094153

Screw

$

$

Not available

41

Poulan 530094154

Lock Washer

$1.49

$

Usually ships in 3-10 days

0

42

Poulan 530094152

Clutch Case

$52.99

$

Usually ships in 3-10 days

0

43

Poulan 530094161

Snap Ring

$1.49

$

Usually ships in 3-10 days

0

44

Poulan 530094159

Bearing

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 530094160

Snap Ring

$2.49

$

Usually ships in 3-10 days

0

46

Poulan 530094156

Clutch Drum

$34.99

$

Usually ships in 3-10 days

0

47

Poulan 530094036

Washer

$

$

Not available

48

Poulan 530094158

Bolt

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530094198

Drive Shaft Hsg.

$

$

Not available

50

Poulan 530094144

Drive Shaft

$

$

Not available

51

Poulan 530094146

Bracket Ass'y.

$

$

Not available

52

Poulan 530093993

Hip Pad

$14.99

$

In Stock, only 1 left!

0

53

Poulan 530091426

Tie Strap

$0.99

$

Usually ships in 3-10 days

0

54

Poulan 530093954

Cutting Head Ass'y. (Inc. #55-63)

$

$

Not available

55

Poulan 530091656

Hub

$21.99

$

Usually ships in 3-10 days

0

56

Poulan 530091425

Line Saver

$

$

Not available

57

Poulan 530091423

Drive Adaptor

$

$

Not available

58

Poulan 530091657

Spring

$

$

Not available

59

Poulan 952701526

Spool w/Line
(Superseded to 952711515)

$

$

Not available

60

Poulan 530091424

Cover

$

$

Not available

61

Poulan 530091662

Screw

$

$

Not available

62

Poulan 530093602

Release Button (Inc. Lock Ring)

$

$

Not available

63

Poulan 530091663

Hex Wrench

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530093994

Tool Set

$

$

Not available

65

Poulan 952701546

Weed Blade-Optional

$

$

Not available

66

Poulan 530094174

Shield

$

$

Not available

67

Poulan 530094175

Spacer

$2.49

$

Usually ships in 3-10 days

0

68

Poulan 530093996

Shield Ass'y.

$

$

Not available

69

Poulan 530094187

Bracket

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530094176

Screw

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530029162

Shaft Warning Decal (Upper)

$

$

Not available

B

Poulan 530029163

Shaft Warning Decal (Lower)

$

$

Not available

C

Poulan 530027348

Shield Warning Decal

$

$

Not available

C

, Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530066869

YP200

Note: Not Shown.

$

$

Not available

Poulan 530066870

XR-200

Note: Not Shown.

$

$

Not available

Poulan 530067447

PP200

Note: Not Shown.

$

$

Not available

, Carton

Note: Not Shown.

$

$

Not available

Poulan 530060857

YP200 Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530060865

XR-200

Note: Not Shown.

$

$

Not available

Poulan 530061161

PP200 Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
