YP GTV 160 AR - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

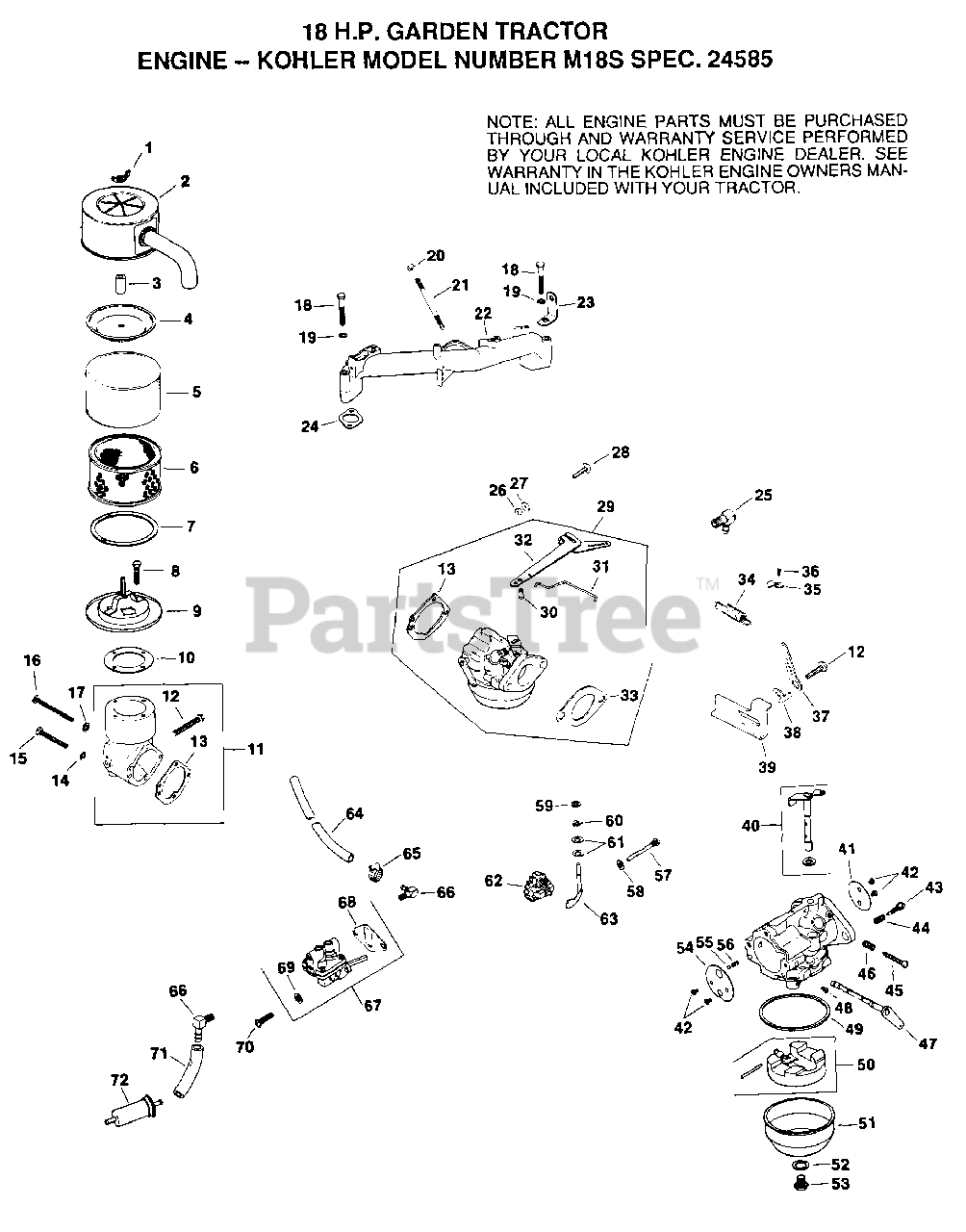

ENGINE Parts Diagram

  • Title

2

Electrolux/AYP 52-096-36

COVER, AIR CLEANER

$

$

Not available

3

Electrolux/AYP 231032

SEAL ELEMENT

$

$

Not available

4

Electrolux/AYP 52-082-04

COVER AIR CLEANER ELEMENT

$

$

Not available

5

Electrolux/AYP 45-083-01

PRE-CLEANER

$

$

Not available

6

Electrolux/AYP 45-083-02

ELEMENT

$

$

Not available

7

Electrolux/AYP 237423

SEAL

$

$

Not available

8

Electrolux/AYP X-67-98

SCREW

$

$

Not available

9

Electrolux/AYP 52-201-06

BASE

$

$

Not available

10

Electrolux/AYP 277093

GASKET

$

$

Not available

11

Electrolux/AYP 52-754-01

KIT, ELBOW

$

$

Not available

12

Electrolux/AYP 52-086-11

SCREW

$

$

Not available

13

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

14

Electrolux/AYP X-22-9

WASHER

$

$

Not available

15

Electrolux/AYP X-50-57

SCREW

$

$

Not available

16

Electrolux/AYP X-50-37

SCREW

$

$

Not available

17

Electrolux/AYP X-25-79

WASHER

$

$

Not available

18

Electrolux/AYP X-6-8

SCREW

$

$

Not available

19

Electrolux/AYP X-21-1

WASHER

$

$

Not available

20

Electrolux/AYP X-77-2

NUT

$

$

Not available

21

Electrolux/AYP X-352-37

STUD

$

$

Not available

22

Electrolux/AYP 52-164-10

MANIFOLD, INTAKE

$

$

Not available

23

Electrolux/AYP 52-445-02

STRAP, LIFTING

$

$

Not available

24

Electrolux/AYP 52-041-09

GASKET

$

$

Not available

25

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

26

Electrolux/AYP X-81-1

NUT

$

$

Not available

27

Electrolux/AYP X-25-72

WASHER

$

$

Not available

28

Electrolux/AYP 52-211-04

SCREW

$

$

Not available

29

Electrolux/AYP 52-853-10

KIT, CARBURETOR

$

$

Not available

30

Electrolux/AYP 25-158-07

BUSHING, LINKAGE

$

$

Not available

31

Electrolux/AYP 52-079-08

LINK, GOVERNOR

$

$

Not available

32

Electrolux/AYP 52-186-06

ARM, GOVERNOR

$

$

Not available

33

Electrolux/AYP 271030

GASKET

$

$

Not available

34

Electrolux/AYP 52-091-04

SPRING, GOVERNOR

$

$

Not available

35

Electrolux/AYP 235778

CLAMP

$

$

Not available

36

Electrolux/AYP X-67-97

SCREW

$

$

Not available

37

Electrolux/AYP 52-119-01

LEVER, SPEED CONTROL

$

$

Not available

38

Electrolux/AYP 234614

STOP, GOVERNOR

$

$

Not available

39

Electrolux/AYP 52-531-02

STOP, HIGH SPEED

$

$

Not available

40

Electrolux/AYP 52-144-16

SHAFT, THROTTLE

$

$

Not available

41

Electrolux/AYP 25-146-02

PLATE

$

$

Not available

42

Electrolux/AYP 25-086-27

SCREW

$

$

Not available

43

Electrolux/AYP 25-368-01

NEEDLE

$

$

Not available

44

Electrolux/AYP 25-089-02

SPRING

$

$

Not available

45

Electrolux/AYP 25-086-26

SCREW

$

$

Not available

46

Electrolux/AYP 25-089-04

SPRING

$

$

Not available

47

Electrolux/AYP 52-090-12

LEVER, CHOKE

$

$

Not available

48

Electrolux/AYP 52-337-06

JET, MAIN

$

$

Not available

49

Electrolux/AYP 25-041-04

GASKET

$

$

Not available

50

Electrolux/AYP 25-757-09

KIT

$

$

Not available

51

Electrolux/AYP 25-104-01

BOWL, FUEL

$

$

Not available

52

Electrolux/AYP 25-041-03

GASKET

$

$

Not available

53

Electrolux/AYP 25-100-05

SCREW, BOWL RETAINER

$

$

Not available

54

Electrolux/AYP 25-146-03

PLATE, CHOKE

$

$

Not available

55

Electrolux/AYP 25-194-01

BALL

$

$

Not available

56

Electrolux/AYP 25-089-03

SPRING

$

$

Not available

57

Electrolux/AYP 231355

PIN

$

$

Not available

58

Electrolux/AYP X-25-12

WASHER

$

$

Not available

59

Electrolux/AYP X-25-63

WASHER, PLAIN 1/4

$

$

Not available

60

Electrolux/AYP X-269-28

RETAINER

$

$

Not available

61

Electrolux/AYP X-25-102

WASHER

$

$

Not available

62

Electrolux/AYP A-235743-S

KIT

$

$

Not available

63

Electrolux/AYP 52-078-04

SHAFT

$

$

Not available

64

Electrolux/AYP 52-353-04

LINE, FUEL

$

$

Not available

65

Electrolux/AYP X-426-9

CLAMP, HOSE

$

$

Not available

66

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

67

Electrolux/AYP 52-559-01

PUMP

$

$

Not available

68

Electrolux/AYP 25-041-05

GASKET, FUEL PUMP

$

$

Not available

69

Electrolux/AYP X-25-63

WASHER, PLAIN 1/4

$

$

Not available

70

Electrolux/AYP 47-086-08

SCREW

$

$

Not available

71

Electrolux/AYP 25-353-03

LINE

$

$

Not available

72

Electrolux/AYP 25-050-01

FILTER, FUEL

$

$

Not available

Electrolux/AYP 25-113-07

DECAL, AIR CLEANER

$

$

Not available

Electrolux/AYP 25-757-08

KIT, CARBURETOR REPAIR

$

$

Not available

Electrolux/AYP 52-755-98

KIT, HIGH ALTITUDE JET

$

$

Not available
